Recombinant SARS-CoV-2 B.1.351 Spike RBD Fc Protein, CF

R&D Systems | Catalog # 10935-CV

Beta Variant (South Africa), K417N, E484K, N501Y
R&D Systems
100% Guarantee

Key Product Details

  • R&D Systems HEK293-derived Recombinant SARS-CoV-2 B.1.351 Spike RBD Fc Protein (10935-CV)
  • Quality control testing to verify active proteins with lot specific assays by in-house scientists
  • All R&D Systems proteins are covered with a 100% guarantee

Source

HEK293

Accession Number

YP_009724390.1

Applications

Bioactivity
View all Spike RBD Proteins and Enzymes »

Product Specifications

Source

Human embryonic kidney cell, HEK293-derived sars-cov-2 Spike RBD protein
SARS-CoV-2 B.1.351 Spike RBD
(Arg319-Phe541) (Lys417Asn, Glu484Lys, Asn501Tyr)
Accession # YP_009724390.1		 IEGRMD Human IgG1
(Pro100-Lys330)
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Arg319

Predicted Molecular Mass

52 kDa

SDS-PAGE

57-64 kDa, reducing conditions.

Activity

Measured by its binding ability in a functional ELISA with Recombinant Human ACE-2 His-tag (Catalog # 933-ZN).

Scientific Data Images for Recombinant SARS-CoV-2 B.1.351 Spike RBD Fc Protein, CF

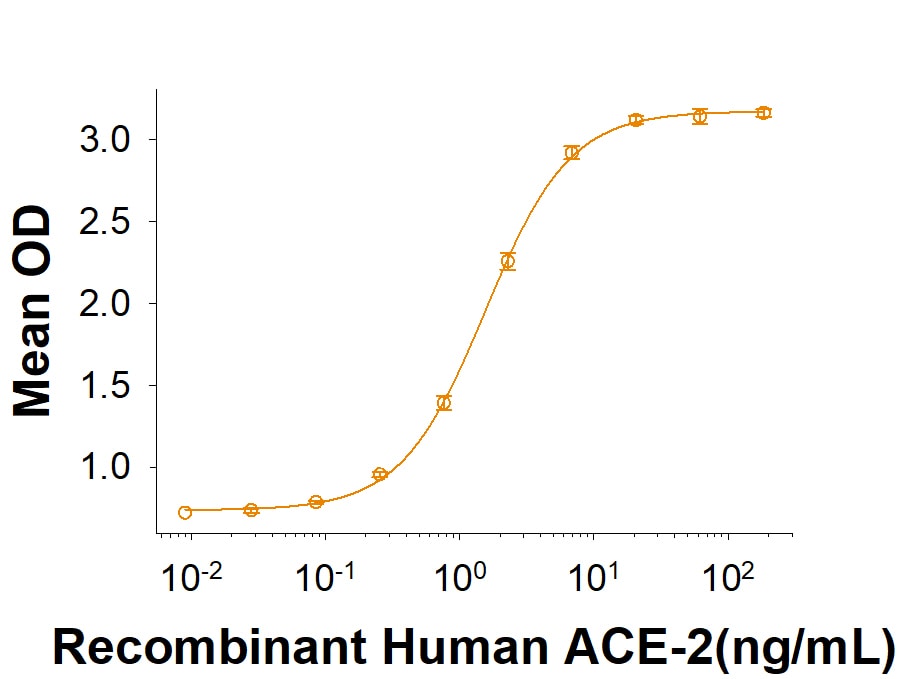

Recombinant SARS-CoV-2 B.1.351 Spike RBD Fc Chimera Bioactivity.

Recombinant SARS-CoV-2 B.1.351 Spike RBD Fc Chimera (Catalog # 10935-CV) binds Recombinant Human ACE-2 His-tag (933-ZN) in a functional ELISA.

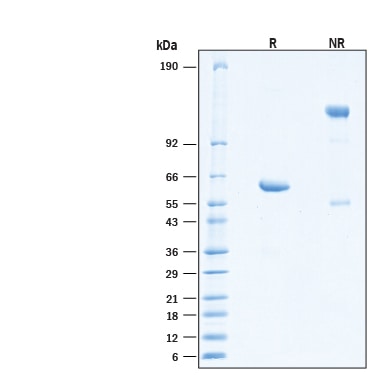

Recombinant SARS-CoV-2 B.1.351 Spike RBD Fc Chimera Protein SDS-PAGE.

2 μg/lane of Recombinant SARS-CoV-2 B.1.351 Spike RBD Fc Chimera (Catalog # 10935-CV) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 57-64 kDa and 110-130 kDa, respectively.

Formulation, Preparation, and Storage

10935-CV
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: Spike RBD

SARS-CoV-2, which causes the global pandemic coronavirus disease 2019 (Covid-19), belongs to a family of viruses known as coronaviruses that also include MERS and SARS-CoV-1. Coronaviruses are commonly comprised of four structural proteins: Spike protein (S), Envelope protein (E), Membrane protein (M) and Nucleocapsid protein (N) (1). The SARS-CoV-2 S protein is a glycoprotein that mediates membrane fusion and viral entry. The S protein is homotrimeric, with each ~180 kDa monomer consisting of two subunits, S1 and S2 (2). In SARS-CoV-2, as with most coronaviruses, proteolytic cleavage of the S protein into S1 and S2 subunits is required for activation. The S1 subunit is focused on attachment of the protein to the host receptor while the S2 subunit is involved with cell fusion (3-5). A metallopeptidase, angiotensin-converting enzyme 2 (ACE2), has been identified as a functional receptor for SARS-CoV-2 through interaction with a receptor binding domain (RBD) located at the C-terminus of S1 subunit (6, 7). The RBD of SARS-CoV-2 shares 73% amino acid (aa) identity with the RBD of the SARS-CoV-1, but only 22% aa identity with the RBD of MERS. A SARS-CoV-2 variant carrying amino acid substitutions N501Y, K417N, and E484K in the RBD raised the most concerns. This B.1.351 lineage, also known and 501Y.V2 variant, was first identified in the Eastern Cape province of South Africa in December 2020 and spread quickly to become the most dominant strain in the second COVID wave in South Africa (8). Two of these mutations K417N and E484K locate at the receptor binding motif (RBM) and are not found in other variants (8). The N501Y mutation is also found in London (B.1.1.7 lineage) and Brazil (P.1 lineage). The B.1.351 lineage is reported to enter cells more easily due to its enhanced affinity to ACE-2 receptor (9). It is reported to reduce the efficacy of neutralizing antibody (9, 10).

References

  1. Wu, F. et al. (2020) Nature 579:265.
  2. Tortorici, M.A. and D. Veesler (2019) Adv. Virus Res. 105:93.
  3. Bosch, B.J. et al. (2003) J. Virol. 77:8801.
  4. Belouzard, S. et al. (2009) Proc. Natl. Acad. Sci. 106:5871.
  5. Millet, J.K. and G.R. Whittaker (2015) Virus Res. 202:120.
  6. Li, W. et al. (2003) Nature 426:450.
  7. Wong, S.K. et al. (2004) J. Biol. Chem. 279:3197.
  8. Tegally, H. et al. (2020) BioRxiv. doi: https://doi.org/10.1101/2020.12.21.20248640.
  9. Nelson, G. et al. (2021) BioRxiv. doi: 10.1101/2021.01.13.426558.
  10. Wibmer, C.K. et al. (2021) BioRxiv. doi: 10.1101/2021.01.18.427166.

Long Name

Spike Receptor Binding Domain

Entrez Gene IDs

3200426 (HCoV-HKU1); 14254594 (MERS-CoV); 1489668 (SARS-CoV); 43740568 (SARS-CoV-2)

Gene Symbol

S

UniProt

YP_009724390.1
