Recombinant SARS-CoV-2 B.1.351 Spike RBD His Protein, CF

South African Variant, K417N, E484K, N501Y
Catalog # Availability Size / Price Qty
10735-CV-100
Recombinant SARS-CoV-2 B.1.351 Spike RBD His-tag Protein Bioactivity.
3 Images
Product Details
FAQs
Reviews

Recombinant SARS-CoV-2 B.1.351 Spike RBD His Protein, CF Summary

Product Specifications

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA with Recombinant Human ACE-2 His-tag (Catalog # 933-ZN).
Source
Human embryonic kidney cell, HEK293-derived sars-cov-2 Spike RBD protein
Arg319-Phe541 (Lys417Asn, Glu484Lys, Asn501Tyr), with a C-terminal 6-His tag
Accession #
N-terminal Sequence
Analysis
Arg 319
Predicted Molecular Mass
26 kDa
SDS-PAGE
34-38 kDa, under reducing conditions.

Product Datasheets

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

10735-CV

Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Data Images

Bioactivity Recombinant SARS-CoV-2 B.1.351 Spike RBD His-tag Protein Bioactivity. View Larger

Recombinant SARS-CoV-2 B.1.351 Spike RBD His-tag (Catalog # 10735-CV) binds Recombinant Human ACE-2 His-tag (933-ZN) in a functional ELISA.

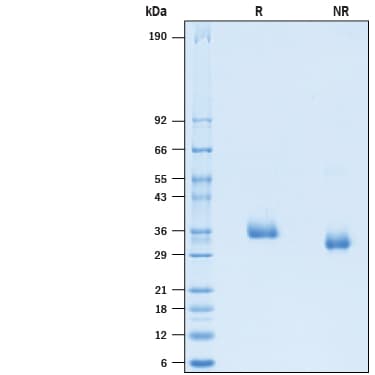

SDS-PAGE Recombinant SARS-CoV-2 B.1.351 Spike RBD His-tag Protein SDS-PAGE. View Larger

2 μg/lane of Recombinant SARS-CoV-2 B.1.351 Spike RBD His-tag (Catalog # 10735-CV) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 34-38 kDa.

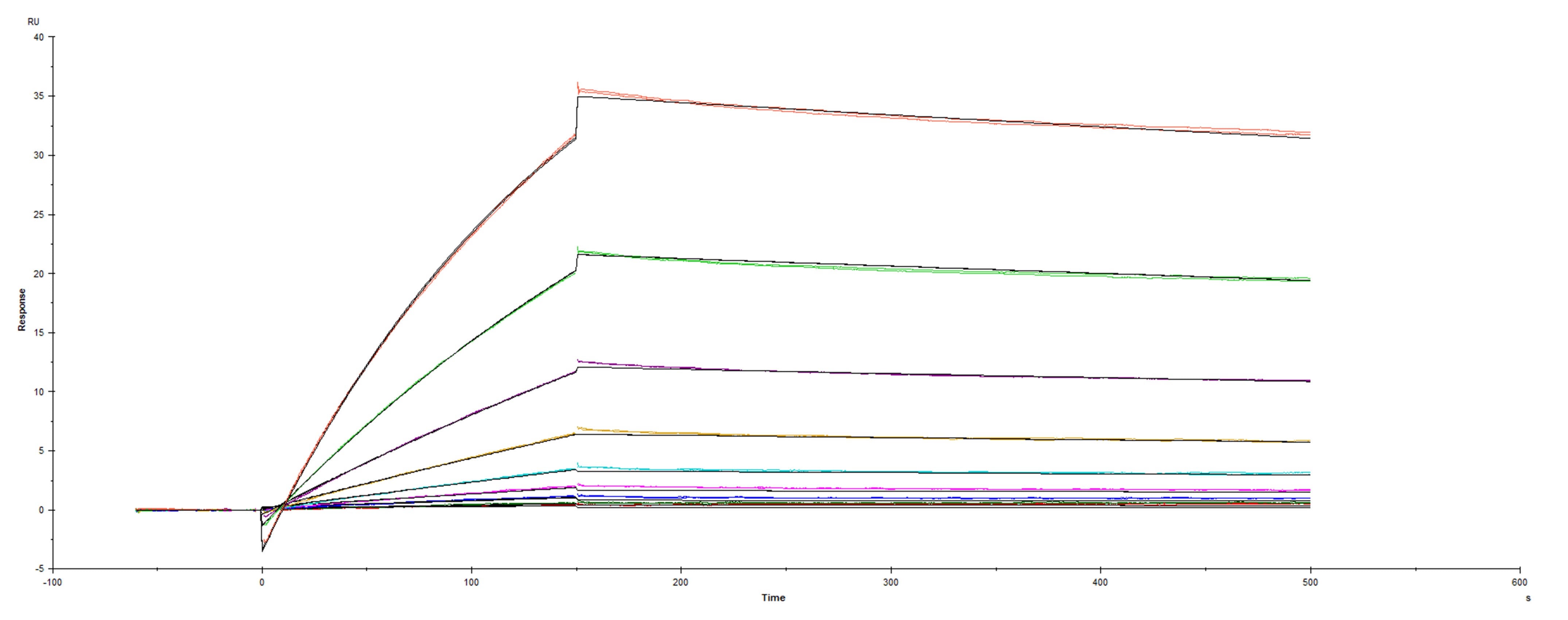

Surface Plasmon Resonance (SPR) Binding of ACE-2 to South African variant Spike RBD protein by surface plasmon resonance (SPR). View Larger

Recombinant SARS-CoV-2 Spike RBD South African variant B.1.351 was immobilized on a Biacore Sensor Chip CM5, and binding to recombinant human ACE-2 (933-ZN) was measured at a concentration range between 0.18 nM and 47.2 nM. The double-referenced sensorgram was fit to a 1:1 binding model to determine the binding kinetics and affinity, with an affinity constant of KD=2.227 nM. (Biacore T200).

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: Spike RBD

SARS-CoV-2, which causes the global pandemic coronavirus disease 2019 (Covid-19), belongs to a family of viruses known as coronaviruses that also include MERS and SARS-CoV-1. Coronaviruses are commonly comprised of four structural proteins: Spike protein (S), Envelope protein (E), Membrane protein (M) and Nucleocapsid protein (N) (1). The SARS-CoV-2 S protein is a glycoprotein that mediates membrane fusion and viral entry. The S protein is homotrimeric, with each ~180 kDa monomer consisting of two subunits, S1 and S2 (2). In SARS-CoV-2, as with most coronaviruses, proteolytic cleavage of the S protein into S1 and S2 subunits is required for activation. The S1 subunit is focused on attachment of the protein to the host receptor while the S2 subunit is involved with cell fusion (3-5). A metallopeptidase, angiotensin-converting enzyme 2 (ACE2), has been identified as a functional receptor for SARS-CoV-2 through interaction with a receptor binding domain (RBD) located at the C-terminus of S1 subunit (6, 7). The RBD of SARS-CoV-2 shares 73% amino acid (aa) identity with the RBD of the SARS-CoV-1, but only 22% aa identity with the RBD of MERS. A SARS-CoV-2 variant carrying amino acid substitutions N501Y, K417N, and E484K in the RBD raised the most concerns. This B.1.351 lineage, also known and 501Y.V2 variant, was first identified in the Eastern Cape province of South Africa in December 2020 and spread quickly to become the most dominant strain in the second COVID wave in South Africa (8). Two of these mutations K417N and E484K locate at the receptor binding motif (RBM) and are not found in other variants (8). The N501Y mutation is also found in London (B.1.1.7 lineage) and Brazil (P.1 lineage). The B.1.351 lineage is reported to enter cells more easily due to its enhanced affinity to ACE-2 receptor (9). It is reported to reduce the efficacy of neutralizing antibody (9, 10).

References
  1. Wu, F. et al. (2020) Nature 579:265.
  2. Tortorici, M.A. and D. Veesler (2019) Adv. Virus Res. 105:93.
  3. Bosch, B.J. et al. (2003) J. Virol. 77:8801.
  4. Belouzard, S. et al. (2009) Proc. Natl. Acad. Sci. 106:5871.
  5. Millet, J.K. and G.R. Whittaker (2015) Virus Res. 202:120.
  6. Li, W. et al. (2003) Nature 426:450.
  7. Wong, S.K. et al. (2004) J. Biol. Chem. 279:3197.
  8. Tegally, H. et al. (2020) BioRxiv. doi: https://doi.org/10.1101/2020.12.21.20248640.
  9. Nelson, G. et al. (2021) BioRxiv. doi: 10.1101/2021.01.13.426558.
  10. Wibmer, C.K. et al. (2021) BioRxiv. doi: 10.1101/2021.01.18.427166.
Long Name
Spike Receptor Binding Domain
Entrez Gene IDs
3200426 (HCoV-HKU1); 1489668 (SARS-CoV); 43740568 (SARS-CoV-2)
Alternate Names
2019-nCoV Peplomer protein; 2019-nCoV S Protein; 2019-nCoV Spike; COVID-19 Spike; E2; Human coronavirus spike glycoprotein; Peplomer protein; S glycoprotein; S protein; SARS-COV-2 E2; SARS-COV-2 Peplomer protein; SARS-COV-2 S protein; SARS-COV-2 Spike glycoprotein; SARSCOV2 Spike protein; SARS-CoV-2; Severe Acute Respiratory Syndrome Coronavirus 2 Spike Protein; Spike glycoprotein; Spike RBD; Spike S1 RBD; Spike S1; Spike; surface glycoprotein
