Simple Plex Discover Mouse/Rat Park7 Assay

R&D Systems | Catalog # SPCKB-MP-014257

Simple Plex Mouse/Rat Park7 assay kit for use on Ella instrument. Contains cartridge, Sample Diluent SD13, and Wash Buffer.
R&D Systems

Customize My Cartridge on Bio-Techne

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize your cartridge on Bio-Techne.com


Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Serum (10 µL), EDTA Plasma (10 µL), Heparin Plasma (10 µL)

Sensitivity

4.36 pg/mL

Assay Range

32.8-20000 pg/mL (Serum, EDTA Plasma, Heparin Plasma)

Simple Plex Discover Mouse/Rat Park7 Assay Summary

Simple Plex Discovery assay is for the detection of  mouse and rat Parkinson Disease Gene 7 (Park7) in cell culture supernatant (CCS), serum, plasma (EDTA/Heparin), and cerebrospinal fluid (CSF) in Sample Diluent SD13.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Compatible Instruments

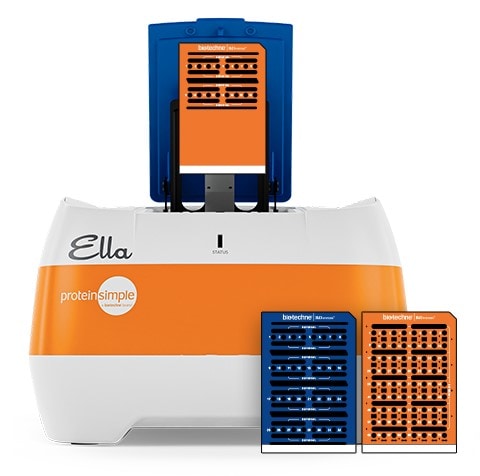

Ella Automated Immunoassay System

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.
Loading...

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Mouse, Rat

Specificity

Natural and recombinant Park7.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Multiple replicates of each control were tested in one assay.

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple runs performed by at least three technicians using two lots of reagents.

EDTA Plasma, Heparin Plasma, Serum

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 33 33
Mean (pg/mL) 141 6963 153 7341
Standard Deviation 8.65 411 11.9 486
CV% 6.1 5.9 7.8 6.6

Recovery for Simple Plex Discover Mouse/Rat Park7 Assay

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=2) 98 91-105

Linearity

Samples containing and/or spiked with high concentrations of Park7 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Simple Plex Discovery Mouse/Rat Park7 Ella Assay
Simple Plex Discovery Mouse/Rat Park7 Ella Assay

Scientific Data Images for Simple Plex Discover Mouse/Rat Park7 Assay

Simple Plex Discovery Mouse/Rat Park7 Ella Assay

Simple Plex Discovery Mouse/Rat Park7 Ella Assay Standard Curve

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Park7/DJ-1

Park7, also known as DJ-1, is a cytoplasmic protein that belongs to the ThiJ/Pfp1/DJ-1 superfamily of highly conserved proteins that function as protein chaperones, catalases, proteases and kinases. Park7 is widely expressed in the brain as well as in peripheral tissues. It exists as a homodimer that can be localized in the cytoplasm, nucleus and mitochondria. Park7 is a redox-sensitive protein that has been ascribed various functions including that as a redox sensor and antioxidant protein. Mutations in Park7 are associated with a small percentage of hereditary early onset Parkinson's disease.

Long Name

Parkinson Disease 7

Alternate Names

DJ-1, DJ1

Entrez Gene IDs

11315 (Human); 57320 (Mouse); 117287 (Rat)

Gene Symbol

PARK7
