Simple Plex Human BAFF/BLyS/TNFSF13B Cartridge

R&D Systems | Catalog # SPCKB-PS-000243

Simple Plex Human BAFF assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.
R&D Systems

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (10 µL), EDTA Plasma (10 µL), Heparin Plasma (10 µL), Cerebrospinal Fluid (25 µL)

Sensitivity

0.212 pg/mL

Assay Range

0.55-840 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Cerebrospinal Fluid)

Simple Plex Human BAFF/BLyS/TNFSF13B Cartridge Summary

Simple Plex assay is for the detection of human B Cell Activating Factor belonging to the TNF Family (BAFF) in cell culture supernatant (CCS), serum, plasma (EDTA/Heparin), and cerebrospinal fluid (CSF) in Sample Diluent SD13.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all BAFF/BLyS/TNFSF13B Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.
Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Human

Specificity

Natural and recombinant human BAFF.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay.

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents.

Cell Culture Supernates, Cerebrospinal Fluid, EDTA Plasma, Heparin Plasma, Serum

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 22 22
Mean (pg/mL) 5.54 241 5.48 242
Standard Deviation 0.434 15.9 0.266 26.7
CV% 7.8 6.6 4.8 11.0

Recovery for Simple Plex Human BAFF/BLyS/TNFSF13B Cartridge

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=2) 100 100-100

Linearity

Samples containing and/or spiked with high concentrations of human BAFF were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

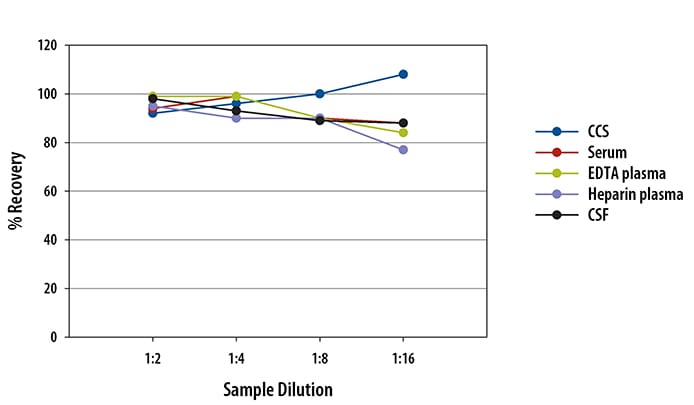

Human BAFF/BLyS Simple Plex Assay Linearity

Scientific Data Images for Simple Plex Human BAFF/BLyS/TNFSF13B Cartridge

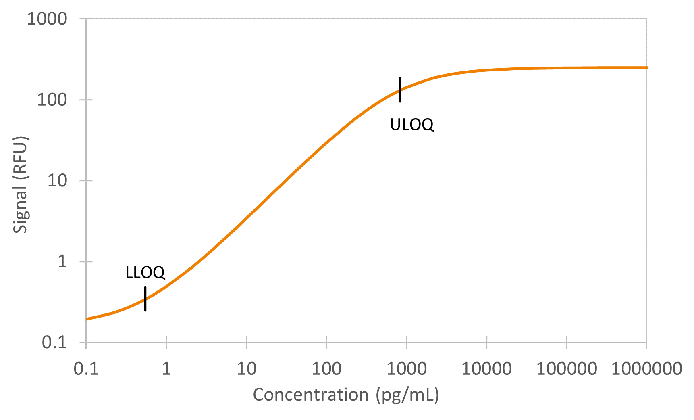

Human BAFF/BLyS Ella Assay Standard Curve

Human BAFF/BLyS Ella Assay Standard Curve

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: BAFF/BLyS/TNFSF13B

BAFF (B-cell activating factor), also known as BLyS, TALL-1, THANK, and TNFSF13B, is a TNF superfamily ligand that plays a critical role in the development and survival of B lineage cells. It can be expressed as a homotrimer or as a heteromer in association with the related protein APRIL. It is produced by many hematopoietic cell types, and a soluble form can be released by activated neutrophils. Both BAFF and APRIL signal through the receptors BCMA and TACI, and BAFF additionally signals through BAFF R. Mice that overexpress BAFF exhibit elevated B cell numbers, increased formation and size of germinal centers, and symptoms of autoimmunity. In addition, BAFF costimulates T cell activation, promotes a Th1 biased immune response, and promotes the expansion of Treg cells.

Long Name

B cell Activating Factor

Alternate Names

BLyS, CD257, TALL1, THANK, TNFSF13B, ZTNF4

Entrez Gene IDs

10673 (Human); 24099 (Mouse); 498666 (Rat); 102123214 (Cynomolgus Monkey)

Gene Symbol

TNFSF13B
