Simple Plex Human CD40 Ligand/TNFSF5 Cartridge

Catalog #: SPCKB-PS-011041 Datasheet / COA / SDS
Simple Plex Human CD40 Ligand/TNFSF5 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD06, and wash buffer
Catalog # Availability Size / Price Qty
SPCKB-PS-011041
SPCKA-PS-011041
SPCKC-PS-011041
Control Products Available
Ella Automated ELISA Platform and Simple Plex Human CD40 Ligand Assay
3 Images
Product Details
FAQs
Supplemental Products
Reviews

Simple Plex Human CD40 Ligand/TNFSF5 Cartridge Summary

Assay Type
Automated sandwich ELISA
Format
Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Assay Length
90 minutes
Sample Type & Volume Required Per Well*
Cell Culture Supernates (10 uL), Serum (25 uL), EDTA Plasma (25 uL), Platelet-poor EDTA Plasma (25 uL), Heparin Plasma (25 uL), Platelet-poor Heparin Plasma (25 uL)
Sensitivity
1.47 pg/mL
Assay Range
3.5 - 5,262 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Platelet-poor EDTA Plasma, Heparin Plasma, Platelet-poor Heparin Plasma)
Specificity
Natural and recombinant human CD40 Ligand.
Cross-reactivity
< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
Interference
No significant interference observed with available related molecules.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Product Summary

Simple Plex assay is for the detection of human CD40 Ligand in cell culture supernatant (CCS), serum, and platelet-poor plasma (EDTA/Heparin) in Sample Diluent SD06.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested multiple times in one CD40 Ligand assay
Inter-Assay Precision (Precision between assays) Replicates of each CD40 Ligand control were tested in multiple assays performed by at least three technicians using two lots of reagents for human CD40 Ligand

Cell Culture Supernates, Serum, EDTA Plasma, Platelet-poor EDTA Plasma, Heparin Plasma, Platelet-poor Heparin Plasma

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 42 42
Mean (pg/mL) 48.6 2441 42.2 2031
Standard Deviation 1.99 80.5 4.21 198
CV% 4.1 3.3 10 9.8

Recovery

Recovery for the human CD40 Ligand assays was evaluated at three different spiked concentrations of CD40 protein.

Sample Type Average % Recovery Range %
Cell Culture Media (n=2) 101 95-107
EDTA Plasma (n=4) 87 81-88
Heparin Plasma (n=4) 90 85-95
Platelet-poor EDTA Plasma (n=4) 96 93-101
Platelet-poor Heparin Plasma (n=4) 90 87-96

Linearity

Samples containing and/or spiked with high concentrations of human CD40 Ligand were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.
Simple Plex Human CD40 Ligand Assay Linearity

Scientific Data

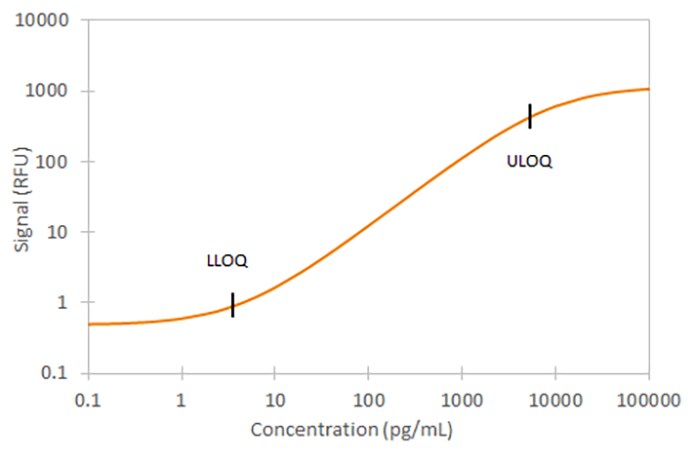

Simple Plex Human CD40 Ligand Assay Standard Curve Data shown represents typical performance results for Lower Limit of Quantitation (LLOQ) and Upper Limit of Quantitation (ULOQ) for Simple Plex Human CD40 Ligand Assay. Assay range is 3.45-5262 pg/mL.

Product Datasheets

You must select a language.

x

Preparation and Storage

Shipping
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Storage
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: CD40 Ligand/TNFSF5

CD40 Ligand, also known as TNFSF5, CD154, TRAP, and gp39, is a trimeric protein that is expressed in transmembrane and soluble forms. It is expressed by many immune cell types as well as by endothelial and smooth muscle cells of the vasculature. It binds to CD40 on antigen presenting cells, platelets, and endothelial and epithelial cells, leading to enhanced B cell activation and T cell dependent humoral immune responses. CD40 Ligand dysregulation contributes to immune pathology in AIDS, atherosclerosis, atherothrombosis, and restenosis.

Entrez Gene IDs:
959 (Human); 21947 (Mouse); 84349 (Rat)
Alternate Names:
CD154 antigen; CD154; CD40 antigen ligand; CD40 Ligand; CD40L; CD40-L; CD40LG; CD40LIGM; gp39; hCD40L; HIGM1; T-B cell-activating molecule; T-BAM; T-cell antigen Gp39; TNF-related activation protein; TNFSF5; TNFSF5IMD3; TRAP; TRAPtumor necrosis factor (ligand) superfamily, member 5 (hyper-IgM syndrome); tumor necrosis factor (ligand) superfamily member 5; Tumor necrosis factor ligand superfamily member 5
