Simple Plex Human Fas Ligand Cartridge

Name: Simple Plex Human Fas Ligand Cartridge
Brand: R&D Systems
SKU: SPCKB-PS-004009
Price: 450 USD
Availability: InStock

R&D Systems | Catalog # SPCKB-PS-004009

Submit a review

Citations (1)

Product Documents

Simple Plex Human Fas Ligand/TNFSF6 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Compatible Instruments
Product Specifications
Precision
Recovery
Linearity
Scientific Data
Preparation & Storage
Background
Product Documents
Specific Notices
Research Areas

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (25 µL), EDTA Plasma (25 µL), Heparin Plasma (25 µL)

Sensitivity

0.523 pg/mL

Assay Range

0.868-3312 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)

Simple Plex Human Fas Ligand Cartridge Summary

Simple Plex assay is for the detection of human Fas Ligand in cell culture supernatant (CCS), serum, and plasma (EDTA/Heparin) in Sample Diluent SD13.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all Fas Ligand/TNFSF6 Simple Plex »

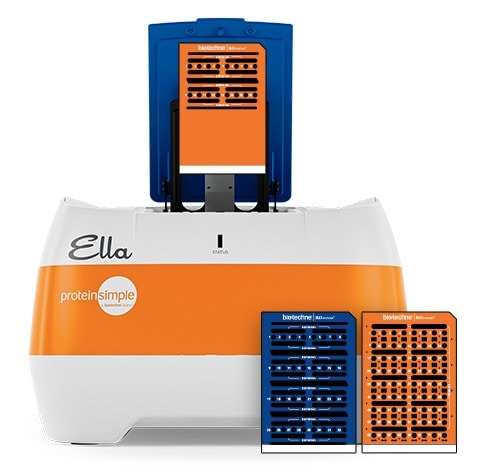

Compatible Instruments

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.

Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Human

Specificity

Natural and recombinant human Fas Ligand

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested multiple times in one Fas Ligand assay.

Inter-Assay Precision (Precision between assays) Replicates of each Fas Ligand control were tested in multiple assays performed by at least three technicians using two lots of reagents for human Fas Ligand.

Cell Culture Supernates, EDTA Plasma, Heparin Plasma, Serum

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	1
n	16	16	29	29
Mean (pg/mL)	25.7	1226	1286	27.2
Standard Deviation	1.24	55.3	103	1.95
CV%	4.8	4.5	8.0	7.2

Recovery for Simple Plex Human Fas Ligand Cartridge

Recovery was not necessary as human Fas Ligand shows 5 points of natural linearity.

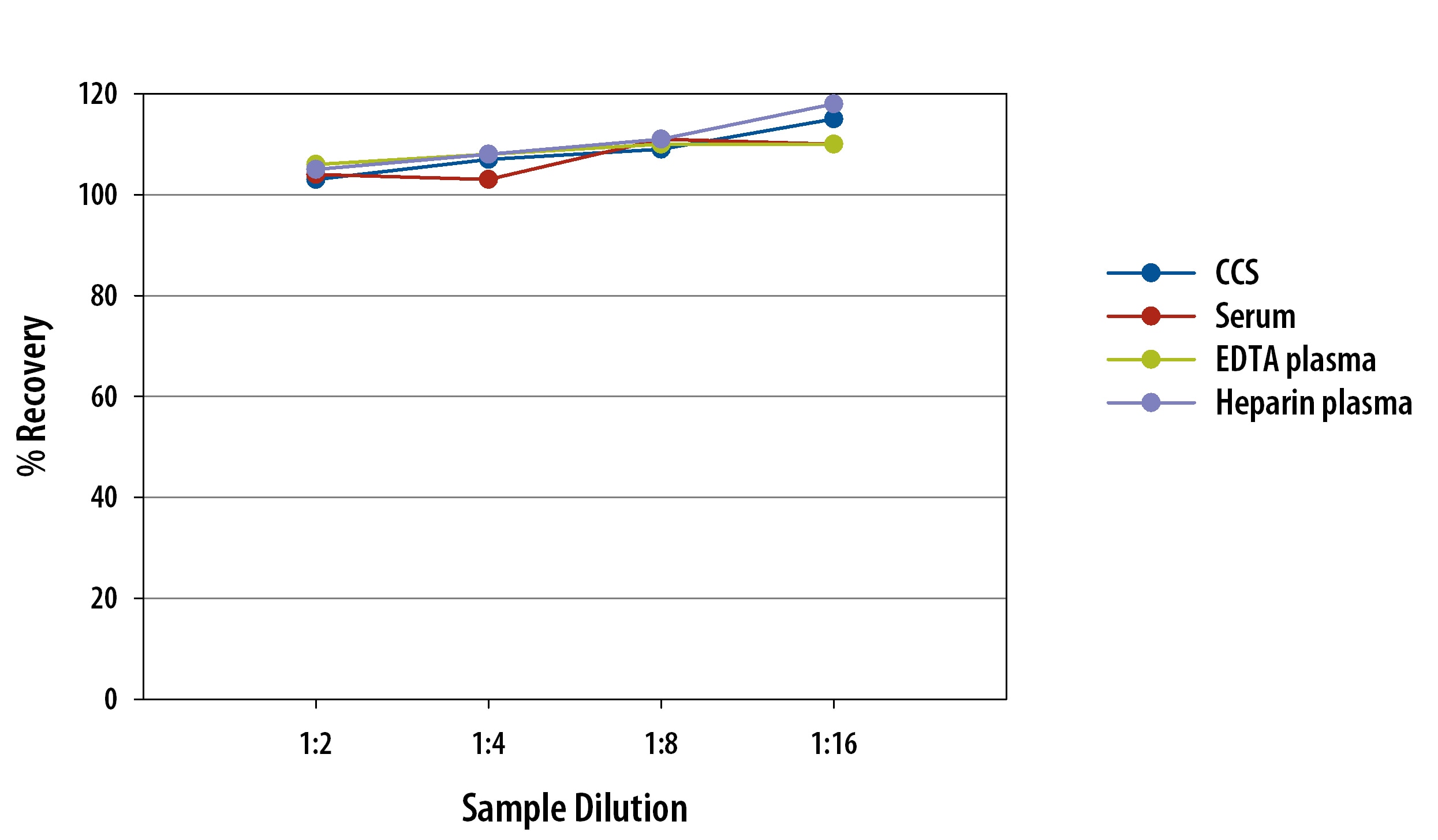

Linearity

Samples containing and/or spiked with high concentrations of human Fas Ligand were serially diluted with Sample Diluent to produce samples within the range of the assay.

Scientific Data Images for Simple Plex Human Fas Ligand Cartridge

Simple Plex Human Fas Ligand Assay Standard Curve

Data shown represents typical performance results for Lower Limit of Quantitation (LLOQ) and Upper Limit of Quantitation (ULOQ) for Simple Plex Human Fas Ligand Assay. Assay range is 0.868-3312 pg/mL.

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Fas Ligand/TNFSF6

Fas Ligand (FasL), also known as CD178, CD95L, or TNFSF6, is a transmembrane protein homotrimer that binds to Fas/CD95 and triggers apoptosis in the Fas-expressing cell. Fas Ligand also binds the soluble decoy receptor DcR3. It is expressed on activated Th1 cells, CD8+ cytotoxic T cells, and NK cells. A soluble form can be released which remains trimeric and retains the ability to bind Fas. Fas Ligand-induced apoptosis plays a central role in the development of immune tolerance and the maintance of immune privileged sites. Tumor cells can evade immune surveillance by upregulating Fas Ligand to kill tumor infiltrating lymphocytes. In gld mice, a Fas Ligand point mutation is the cause of severe lymphoproliferation and systemic autoimmunity.
