Simple Plex Human Total Tau Cartridge

R&D Systems | Catalog # SPCKC-PS-009562

Simple Plex Human Total Tau assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.
R&D Systems

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.


Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (10 µL), EDTA Plasma (10 µL), Heparin Plasma (10 µL), Cerebrospinal Fluid (10 µL)

Sensitivity

0.13 pg/mL

Assay Range

0.84-8000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Cerebrospinal Fluid)

Simple Plex Human Total Tau Cartridge Summary

Simple Plex assay for the detection of human Total Tau in cell culture supernates (CCS), serum, plasma (EDTA/Heparin), and cerebrospinal fluid (CSF).

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Compatible Instruments

Ella Automated Immunoassay System

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.
Loading...

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Human

Specificity

Natural and recombinant Total Tau.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay.

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents.

Cell Culture Supernates, Cerebrospinal Fluid, EDTA Plasma, Heparin Plasma, Serum

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 34 35
Mean (pg/mL) 70.7 2893 72.4 2818
Standard Deviation 5.55 260 5.70 204
CV% 7.9 9.0 7.9 7.2

Recovery for Simple Plex Human Total Tau Cartridge

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=2) 104 99-108
EDTA Plasma (n=4) 105 102-109
Heparin Plasma (n=4) 104 101-108
Serum (n=4) 103 93-111

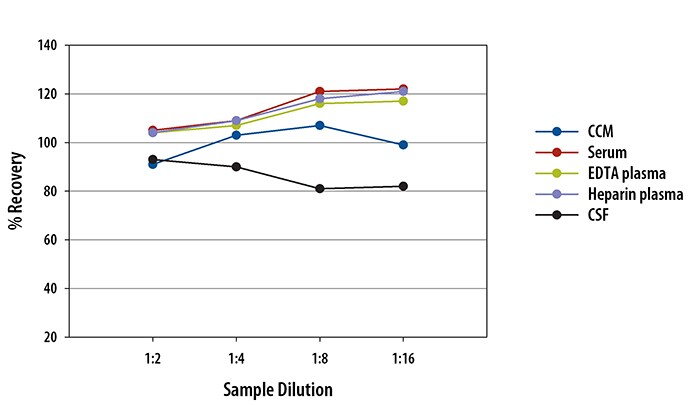

Linearity

Human Total Tau Ella Assay

Scientific Data Images for Simple Plex Human Total Tau Cartridge

Human Total Tau Ella Assay

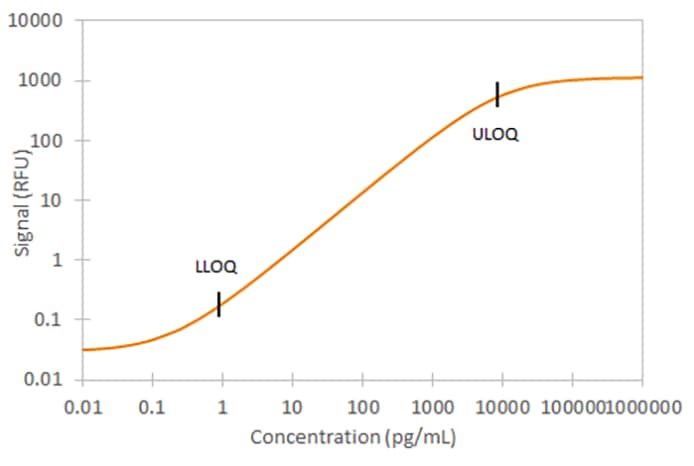

Human Total Tau Ella Assay Standard Curve

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Tau

The Tau protein is a microtubule-associated protein expressed primarily in axons of central nervous system neurons. Tau is also detected in oligodendrocytes, the somatodendritic compartment within neurons, and some non-neuronal tissues. In healthy neurons, Tau promotes the assembly and stabilization of microtubules along with other MAP proteins, especially MAP1B. It is believed that other proteins can compensate for loss of Tau protein function as Tau knockout mice are viable and show no signs of neurodegeneration. There are multiple isoforms of Tau created by alternative splicing of exons 2, 3, and 10. And Tau protein is heavily phosphorylated throughout the protein mostly occurring on Ser-Pro and Thr-Pro motifs. Several kinases and phosphatases regulate the phosphorylation state of Tau.

Hyperphosphorylation of Tau is an underlying cause of tauopathies, a group of neurodegenerative diseases that are characterized by accumulation of misfolded Tau protein into neurofibrillary tangles (NFT). Alzheimer’s disease and Parkinson’s disease are two tauopathies. Hyperphosphorylated Tau protein exhibits lower affinity for microtubules resulting in destabilization of the cytoskeleton and a reduction in axonal transport. When Tau protein gets hyperphosphorylated, it promotes misfolding and oligomerization into NFT ultimately causing neuronal impairment and cell death.

Long Name

Microtubule-Associated Protein Tau

Alternate Names

MAPT, MSTD, MTBT1, Neurofibrillary tangle protein, PPND

Entrez Gene IDs

4137 (Human); 17762 (Mouse); 29477 (Rat)

Gene Symbol

MAPT
