Simple Plex Mouse CXCL2/GRO beta/MIP-2/CINC-3 Cartridge

R&D Systems | Catalog # SPCKB-MP-000583

Simple Plex Mouse CXCL2/GRO beta/MIP-2/CINC-3 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD09, and wash buffer.
R&D Systems

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Mouse Cell Culture Supernates (10 µL), Mouse Serum (25 µL), Mouse EDTA Plasma (25 µL), Mouse Heparin Plasma (25 µL)

Sensitivity

0.06 pg/mL

Assay Range

0.92-1412 pg/mL (Mouse Cell Culture Supernates, Mouse Serum, Mouse EDTA Plasma, Mouse Heparin Plasma)

Simple Plex Mouse CXCL2/GRO beta/MIP-2/CINC-3 Cartridge Summary

Simple Plex assay is for the detection of mouse Macrophage Inflammatory Protein 2 (CXCL2/MIP-2) in cell culture supernatant (CCS), serum, and plasma (EDTA/Heparin) in Sample Diluent SD09.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all CXCL2/GRO beta/MIP-2/CINC-3 Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.
Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Mouse

Specificity

Natural and recombinant mouse CXCL2/MIP-2.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested multiple times in one CXCL2/MIP-2 assay.

Inter-Assay Precision (Precision between assays) Replicates of each CXCL2/MIP-2 control were tested in multiple assays performed by at least three technicians using two lots of reagents for mouse CXCL2/MIP-2.

Mouse Cell Culture Supernates, Mouse EDTA Plasma, Mouse Heparin Plasma, Mouse Serum

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 91 92
Mean (pg/mL) 10.9 475 10.3 463
Standard Deviation 0.994 40.8 1.20 39.3
CV% 9.1 8.6 11.6 8.5

Recovery for Simple Plex Mouse CXCL2/GRO beta/MIP-2/CINC-3 Cartridge

Recovery for the mouse CXCL2/MIP-2 assays was evaluated at three different spiked concentrations of CXCL2/MIP-2 protein.

Sample Type Average % Recovery Range %
Mouse EDTA Plasma (n=4) 106 100-115
Mouse Heparin Plasma (n=4) 107 100-116
Mouse Serum (n=4) 104 94-113

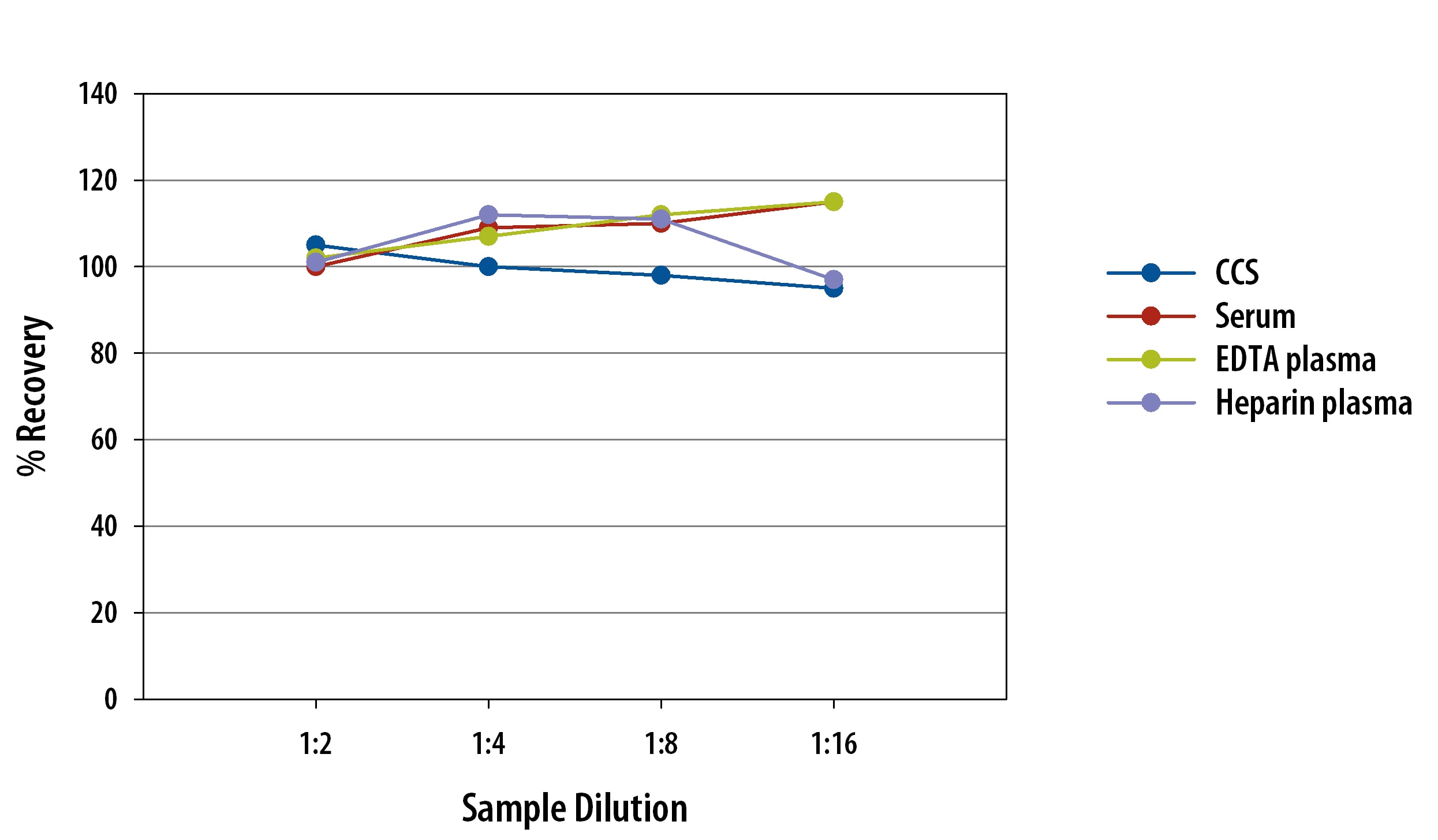

Linearity

Samples containing and/or spiked with high concentrations of mouse CXCL2/MIP-2 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

Simple Plex Mouse CXCL2/MIP-2 Assay Linearity

Scientific Data Images for Simple Plex Mouse CXCL2/GRO beta/MIP-2/CINC-3 Cartridge

Simple Plex Mouse CXCL2/MIP-2 Assay Standard Curve

Simple Plex Mouse CXCL2/MIP-2 Assay Standard Curve

Data shown represents typical performance results for Lower Limit of Quantitation (LLOQ) and Upper Limit of Quantitation (ULOQ) for Simple Plex Mouse CXCL2/MIP-2 Assay. Assay range is 0.92-1412 pg/mL.

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: CXCL2/GRO beta/MIP-2/CINC-3

CXCL2/GRO beta, also called MIP-2 in mouse and CINC-3 in rat, is a member of the CXC chemokine family. Human CXCL2/GRO beta is 107 amino acids (aa) in length with a predicted molecular weight of 11 kDa. The mouse and rat orthologs share 70% and 71% aa sequence identity with the human protein, respectively. N-terminal aa 1-4 of CXCL2/GRO beta can be post-translationally cleaved which confers enhanced hematopoietic bioactivity. CXCL2/GRO beta is produced by a variety of cell types including monocytes and macrophages at sites of inflammation and is chemotactic for granulocytes, including neutrophils.

Alternate Names

CINC-3, CINC3, GRO beta, MGSA-beta, MIP-2

Entrez Gene IDs

2920 (Human); 20310 (Mouse); 114105 (Rat)

Gene Symbol

CXCL2
