Simple Plex Mouse IL-17 Cartridge

Name: Simple Plex Mouse IL-17 Cartridge
Brand: R&D Systems
SKU: SPCKB-MP-003352
Price: 450 USD
Availability: InStock

R&D Systems | Catalog # SPCKB-MP-003352

Submit a review

Citations

Product Documents

Simple Plex Mouse IL-17/IL-17A assay kit for use on Ella instrument. Contains cartridge, sample diluent SD09, and wash buffer.

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Compatible Instruments
Product Specifications
Precision
Recovery
Linearity
Scientific Data
Preparation & Storage
Background
Product Documents
Specific Notices
Research Areas

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (25 µL), EDTA Plasma (25 µL), Heparin Plasma (25 µL)

Sensitivity

0.23 pg/mL

Assay Range

1.5-5715 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)

Simple Plex Mouse IL-17 Cartridge Summary

Simple Plex assay is for the detection of mouse Interleukin 17 (IL-17) in cell culture supernatant (CCS), serum, and plasma (EDTA/Heparin) in Sample Diluent SD09.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all IL-17/IL-17A Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.

Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Mouse

Specificity

Natural and recombinant mouse IL-17.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested multiple times in one IL-17 assay.

Inter-Assay Precision (Precision between assays) Replicates of each IL-17 control were tested in multiple assays performed by at least three technicians using two lots of reagents for mouse IL-17.

Cell Culture Supernates, EDTA Plasma, Heparin Plasma, Serum

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	56	56
Mean (pg/mL)	30.3	1561	35.8	1761
Standard Deviation	1.34	41.0	2.76	144
CV%	4.4	2.6	7.7	8.2

Recovery for Simple Plex Mouse IL-17 Cartridge

Recovery for the mouse IL-17 assays was evaluated at three different spiked concentrations of IL-17 protein.

Sample Type	Average % Recovery	Range %
EDTA Plasma (n=4)	98	90-105
Heparin Plasma (n=4)	109	99-116
Serum (n=4)	97	88-105

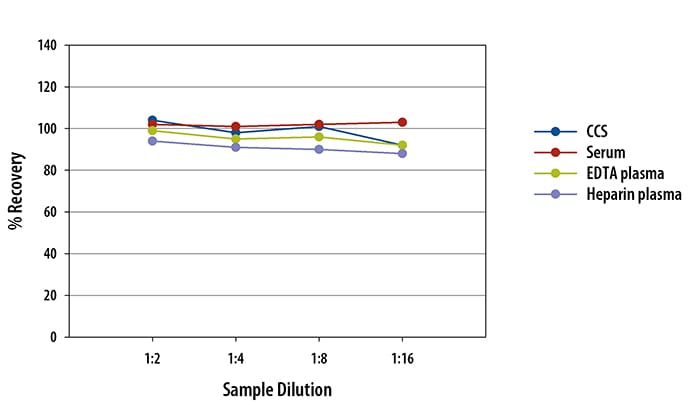

Linearity

Samples containing and/or spiked with high concentrations of mouse IL-17 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Images for Simple Plex Mouse IL-17 Cartridge

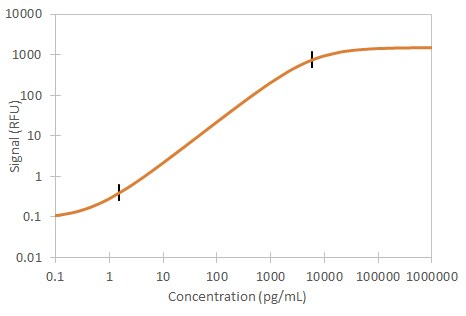

Simple Plex Mouse IL-17 Assay Standard Curve

Data shown represents typical performance results for Lower Limit of Quantitation (LLOQ) and Upper Limit of Quantitation (ULOQ) for Simple Plex Mouse IL-17 Assay. Assay range is 1.50-5715 pg/mL.

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-17/IL-17A

IL-17/IL-17A is a homodimeric cytokine that is secreted by IL-23 activated Th17 and Tc17 cells. It is upregulated during inflammation and contributes to disease severity by enhancing neutrophil infiltration and the production of pro-inflammatory chemokines. IL-17A can additionally form bioactive heterodimers with IL-17F. IL-17A and the IL-17A/F heterodimer signal through widely expressed receptor complexes containing IL-17 RA and IL-17 RC.
