Human TIM-1/KIM-1/HAVCR DuoSet ELISA

R&D Systems | Catalog # DY1750B

R&D Systems
Loading...

Key Product Details

Assay Type

Solid Phase Sandwich ELISA

Assay Range

15.6-1000 pg/mL

Sample Type

Cell culture supernates, serum, and plasma
Note: Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet

Reactivity

Human

Human TIM-1/KIM-1/HAVCR DuoSet ELISA Features

  • Optimized capture and detection antibody pairings with recommended concentrations save lengthy development time
  • Development protocols are provided to guide further assay optimization
  • Assay can be customized to your specific needs
  • Economical alternative to complete kits
Loading...

Product Summary for Human TIM-1/KIM-1/HAVCR DuoSet ELISA

This DuoSet ELISA Development kit contains the basic components required for the development of sandwich ELISAs to measure natural and recombinant human T cell Immunoglobulin Mucin-1 (TIM-1). The suggested diluent is suitable for the analysis of most cell culture supernate, serum, plasma, and urine samples. Diluents for complex matrices, such as serum, plasma, and urine, should be evaluated prior to use in this DuoSet.

Product Specifications

Assay Format

96-well strip plate (sold separately)

Detection Method

Colorimetric ELISA - 450nm (TMB)

Conjugate

Biotin

Label

HRP

Scientific Data Images for Human TIM-1/KIM-1/HAVCR DuoSet ELISA

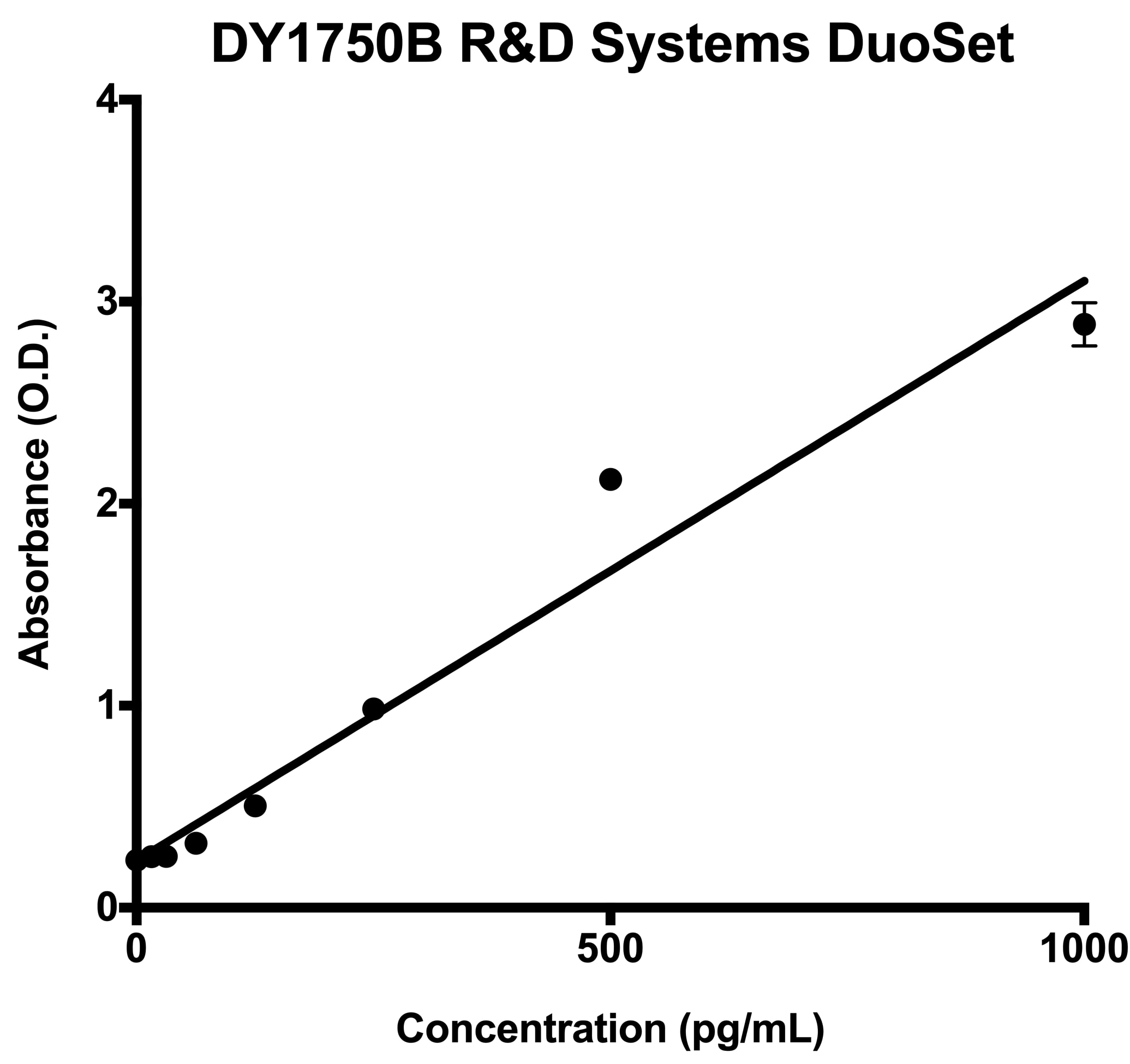

Human TIM-1 / KIM-1 / HAVCR ELISA Standard Curve

Human TIM-1 / KIM-1 / HAVCR ELISA Standard Curve

Human TIM-1/KIM-1/HAVCR ELISA Standard Curve

Kit Contents for Human TIM-1/KIM-1/HAVCR DuoSet ELISA

  • Capture Antibody
  • Detection Antibody
  • Recombinant Standard
  • Streptavidin conjugated to horseradish-peroxidase (Streptavidin-HRP)

Other Reagents Required

DuoSet Ancillary Reagent Kit 2 (5 plates): (Catalog # DY008C) containing 96 well microplates, plate sealers, substrate solution, stop solution, plate coating buffer (PBS), wash buffer, and Reagent Diluent Concentrate 2.

PBS: (Catalog # DY006), or 137 mM NaCl, 2.7 mM KCl, 8.1 mM Na2HPO4, 1.5 mM KH2PO4, pH 7.2 - 7.4, 0.2 µm filtered

Wash Buffer: (Catalog # WA126), or equivalent

Reagent Diluent*

Blocking Buffer*

Substrate Solution: ELISA TMB Substrate (Catalog # DY999B or DY999B-250)

Stop Solution: Methanesulfonic acid (Catalog # DY994B or DY994B-250)

Microplates: (Catalog # DY990), or equivalent

Plate Sealers: (Catalog # DY992), or equivalent

*For the recommended Reagent Diluent and Blocking Buffer for a specific DuoSet ELISA Development Kit, refer to the product datasheet.

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: TIM-1/KIM-1/HAVCR

T cell immunoglobulin and mucin domain 1 (TIM-1), also known as Kidney injury molecule 1 (KIM-1) and Hepatitis A virus cellular receptor 1 (HAVcr1), is a member of the TIM family which is involved in the regulation of innate and adaptive immune responses (1, 2). TIM-1 is a type I transmembrane protein that contains an N-terminal immunoglobulin-like domain, a mucin domain with O- and N-linked glycosylations, a transmembrane segment, and a cytoplasmic signaling domain (3, 4). Multiple TIM-1 variants can be produced due to polymorphisms or alternative splicing resulting in deletions in the mucin domain (3). Some of these polymorphisms are associated with susceptibility to atopy, autoimmunity, and severe hepatitis A virus infection in humans (5). Within the extracellular domain, human TIM-1 shares 41% amino acid sequence identity with mouse and rat TIM-1.
In vivo, TIM-1 is expressed on splenic B cells and is a marker for the identification of IL-10+ regulatory B cells (6, 7). TIM-1 is also expressed on CD4+ T cells, mast cells, invariant NKT (iNKT) cells, dendritic cells, kidney epithelium and a broad range of mucosal epithelium (4, 8-15). The expression of TIM-1 is upregulated on activated Th2 cells, after dendritic cell maturation, and on kidney tubular epithelial cells after injury (4, 9, 13, 14, 16, 17). Metalloproteinase-mediated cleavage of TIM-1 at the membrane-proximal region results in the release of a soluble form of TIM-1 which is detectable in the urine and in circulation (18, 19). Urinary TIM-1 is highly elevated in nephropathy and may be a useful biomarker for renal damage (16, 20 - 25).
TIM-1 has been reported to be a receptor for a number of ligands, including phosphatidylserine, leukocyte mono-immunoglobulin-like receptor 5 (LMIR5/CD300b), TIM-1 (homophilic), TIM-4, IgA, and the glycoproteins of a number of enveloped viruses (5, 15, 26-33). Its interaction with phosphatidylserine enables TIM-1 to mediate the phagocytosis of apoptotic cells (26-28). In TIM-1-bearing iNKT cells, interaction with apoptotic cells can also result in iNKT cell activation, proliferation, and cytokine production (11). Interactions between cell-surface or soluble TIM-1 with LMIR5 is proposed to induce LMIR5-mediated activation of myeloid cells including macrophages/monocytes, mast cells, neutrophils, and dendritic cells (29). These interactions contribute to tissue homeostasis and damage during kidney injury (29). Ligandinduced TIM-1 signaling costimulates T cell activation and enhances Th2 cytokine production (9, 31, 34). In humans, TIM-1 serves as a cellular entry receptor for various viruses, including hepatitis A virus, Ebolavirus and Marburgvirus (15, 33).

Long Name

T Cell Immunoglobulin Mucin-1

Alternate Names

CD365, HAVCR1, KIM-1, TIM1

Entrez Gene IDs

26762 (Human); 171283 (Mouse); 286934 (Rat); 102141332 (Cynomolgus Monkey)

Gene Symbol

HAVCR1

Additional TIM-1/KIM-1/HAVCR Products

Product Documents for Human TIM-1/KIM-1/HAVCR DuoSet ELISA

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Human TIM-1/KIM-1/HAVCR DuoSet ELISA

For research use only

Citations for Human TIM-1/KIM-1/HAVCR DuoSet ELISA

Customer Reviews for Human TIM-1/KIM-1/HAVCR DuoSet ELISA (2)

3.5 out of 5
2 Customer Ratings
5 Stars
0%
4 Stars
50%
3 Stars
50%
2 Stars
0%
1 Stars
0%

Have you used Human TIM-1/KIM-1/HAVCR DuoSet ELISA?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images


Showing  1 - 22 reviews Showing All
Filter By:
  • Human TIM-1/KIM-1/HAVCR DuoSet ELISA
    Name: Anonymous
    Sample Tested: Cell culture supernatant
    Verified Customer | Posted 11/03/2021
  • Human TIM-1/KIM-1/HAVCR DuoSet ELISA
    Name: Demetri Maxim
    Sample Tested: Serum and Plasma
    Verified Customer | Posted 12/25/2018
    The only reason I didn't give the kit 5 stars is because we had a few technical issues with it that took some troubleshooting time to work out, but RnD Systems was very prompt in helping us resolve it and even sent a new kit after we found the problem.
    Human TIM-1/KIM-1/HAVCR DuoSet ELISA DY1750B

There are no reviews that match your criteria.

Showing  1 - 22 reviews Showing All

Protocols

View specific protocols for Human TIM-1/KIM-1/HAVCR DuoSet ELISA (DY1750B):

GENERAL ELISA PROTOCOL

Plate Preparation

  1. Dilute the Capture Antibody to the working concentration in PBS without carrier protein. Immediately coat a 96-well microplate with 100 μL per well of the diluted Capture Antibody. Seal the plate and incubate overnight at room temperature.
  2. Aspirate each well and wash with Wash Buffer, repeating the process two times for a total of three washes. Wash by filling each well with Wash Buffer (400 μL) using a squirt bottle, manifold dispenser, or autowasher. Complete removal of liquid at each step is essential for good performance. After the last wash, remove any remaining Wash Buffer by aspirating or by inverting the plate and blotting it against clean paper towels.
  3. Block plates by adding 300 μL Reagent Diluent to each well. Incubate at room temperature for a minimum of 1 hour.
  4. Repeat the aspiration/wash as in step 2. The plates are now ready for sample addition.

Assay Procedure

  1. Add 100 μL of sample or standards in Reagent Diluent, or an appropriate diluent, per well. Cover with an adhesive strip and incubate 2 hours at room temperature.
  2. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  3. Add 100 μL of the Detection Antibody, diluted in Reagent Diluent, to each well. Cover with a new adhesive strip and incubate 2 hours at room temperature.
  4. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  5. Add 100 μL of the working dilution of Streptavidin-HRP to each well. Cover the plate and incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  6. Repeat the aspiration/wash as in step 2.
  7. Add 100 μL of Substrate Solution to each well. Incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  8. Add 50 μL of Stop Solution to each well. Gently tap the plate to ensure thorough mixing.
  9. Determine the optical density of each well immediately, using a microplate reader set to 450 nm. If wavelength correction is available, set to 540 nm or 570 nm. If wavelength correction is not available, subtract readings at 540 nm or 570 nm from the readings at 450 nm. This subtraction will correct for optical imperfections in the plate. Readings made directly at 450 nm without correction may be higher and less accurate.
