Human CD68/SR‑D1 APC‑conjugated Antibody

R&D Systems | Catalog # IC20401A

R&D Systems
Discontinued Product
IC20401A has been discontinued. View all CD68/SR-D1 products.

Key Product Details

Species Reactivity

Human

Applications

Intracellular Staining by Flow Cytometry

Label

Allophycocyanin (Excitation = 620-650 nm, Emission = 660-670 nm)

Antibody Source

Monoclonal Mouse IgG2B Clone # 298807
View all CD68/SR-D1 Primary Antibodies »

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant human CD68/SR‑D1
Asn22-Ile320
Accession # AAB25811

Specificity

Detects human CD68/SR‑D1 in direct ELISAs.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2B

Scientific Data Images for Human CD68/SR‑D1 APC‑conjugated Antibody

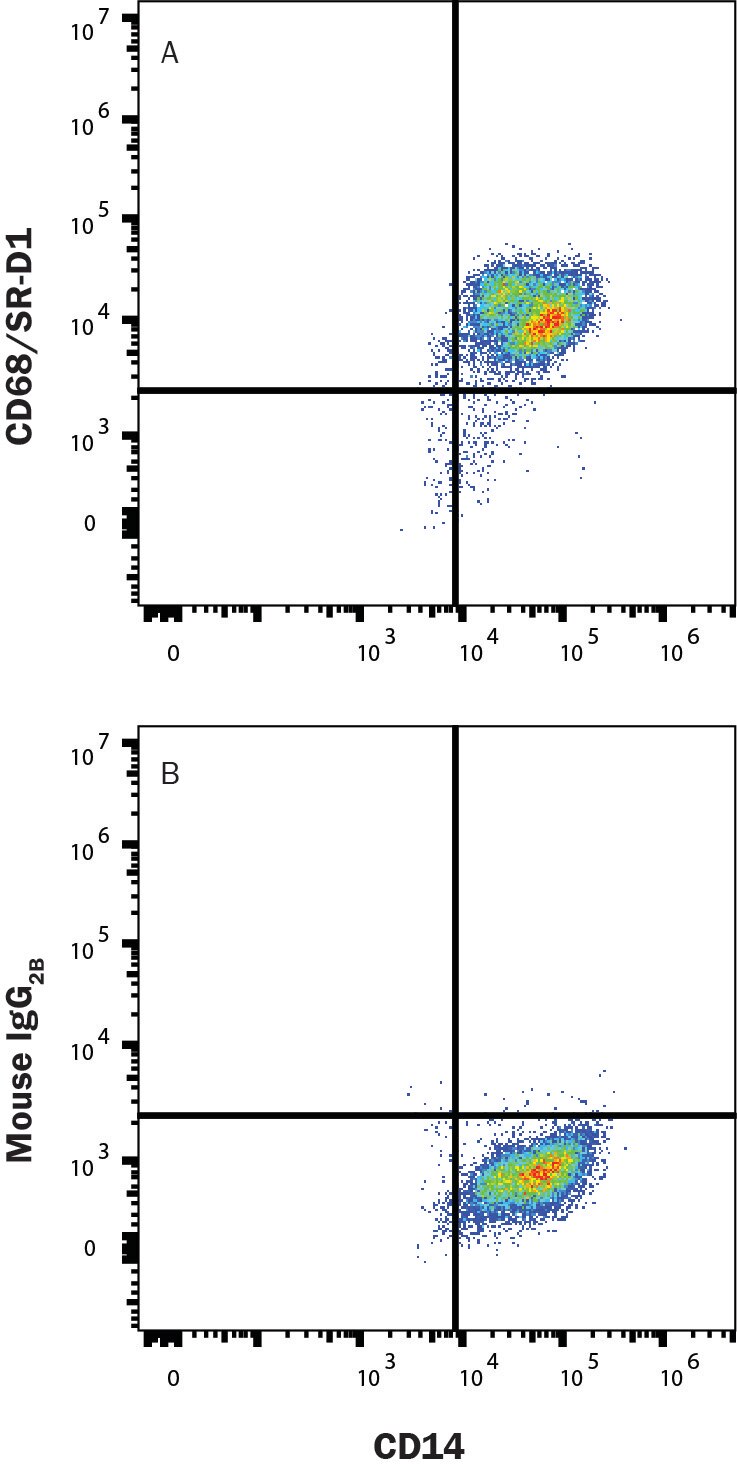

Detection of CD68/SR‑D1 in Human Macrophages by Flow Cytometry.

Human CD14+ monocytes were selected from PBMCs using MagCellect Human CD14+ Cell Isolation Kit (MAGH105) and cultured for four days in recombinant human M-CSF (216-MC; 10 ng/mL) then stained with (A) Mouse Anti-Human CD68/SR-D1 APC-conjugated Monoclonal Antibody (Catalog # IC20401A) or (B) isotype control antibody (IC0041A) and Mouse anti-Human CD14 PE-conjugated Monoclonal Antibody (FAB3832P). To facilitate intracellular staining, cells were fixed with Flow Cytometry Fixation Buffer (FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (FC005). Staining was performed using our Staining Intracellular Molecules protocol.

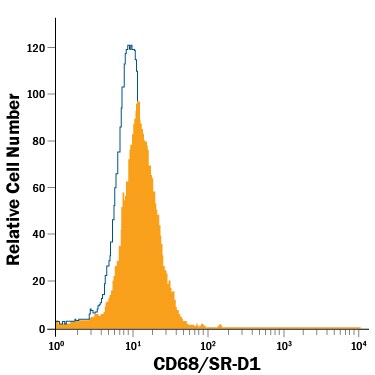

Detection of CD68/SR-D1 antibody in U937 Human Histiocytic Lymphoma Cell Line antibody by Flow Cytometry.

Detection of CD68/SR‑D1 in U937 Human Histiocytic Lymphoma Cell Line by Flow Cytometry.

U937 human histiocytic lymphoma cell line was stained with Mouse Anti-Human CD68/SR-D1 APC-conjugated Monoclonal Antibody (Catalog # IC20401A, filled histogram) or isotype control antibody (Catalog # IC0041A, open histogram). View our protocol for Staining Intracellular Molecules.

Applications for Human CD68/SR‑D1 APC‑conjugated Antibody

Application
Recommended Usage

Intracellular Staining by Flow Cytometry

10 µL/106 cells
Sample: Human CD14+ monocytes cultured for four days in recombinant human M-CSF (Catalog # 216-MC; 10 ng/mL) and U937 human histiocytic lymphoma cell line

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer
Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8° C. Do not use past expiration date. Protect from light.

Background: CD68/SR-D1

CD68, also called Scavenger Receptor D1 (SR-D1), is a type I transmembrane glycoprotein that belongs to the LAMP family of molecules. CD68 is expressed on monocytes and macrophages and serves as a scavenger receptor for oxidized LDL.

Alternate Names

CD68, gp110, Macrosialin, SCARD1, SR-D1, SRD1

Entrez Gene IDs

968 (Human); 12514 (Mouse); 287435 (Rat)

Gene Symbol

CD68

UniProt

AAB25811
