Human Granzyme B ELISpot Kit

Catalog # Availability Size / Price Qty
XEL2906
EL2906
R&D Systems ELISpot and FluoroSpot Kits
1 Image
Product Details
Citations (1)
FAQs
Supplemental Products
Reviews (2)

Human Granzyme B ELISpot Kit Summary

Assay Type
Quantitative Sandwich ELISA
Format
96-well PVDF-backed microplate
Assay Length
3 hours 15 mins to 4 hours 30 mins*
Sample Type
Whole Cells
Specificity
Please see the product datasheet

* Provided that the recommended microplates, buffers, diluents, substrates and solutions are used, and the assay is run as summarized in the Assay Procedure provided.

* Following cell stimulation.


PRODUCT SUMMARY
ELISpot kits are highly sensitive, microplate-based assays for the detection of cytokine secreting cells. This kit is designed for the detection and enumeration of human Granzyme B. Complete ELISpot kits are ready-to-run and require no assay development or refinement.

This ELISpot assay employs a capture antibody specific for human Granzyme B, pre-coated onto a PVDF-backed microplate. Appropriately stimulated cells are pipetted directly into the wells and the immobilized antibody in the immediate vicinity of the secreting cells binds secreted human Granzyme B. Following wash steps and incubation with a biotinylated detection antibody, alkaline-phosphatase conjugated to streptavidin is added. Unbound enzyme is subsequently removed by washing and a substrate solution (BCIP/NBT) is added. A blue-black colored precipitate forms at the sites of cytokine localization and appears as spots, with each individual spot representing an individual human Granzyme B secreting cell. The spots can be counted with an automated ELISpot reader system or manually using a stereomicroscope.


PRODUCT FEATURES

  • Detect and quantitate individual cells secreting human Granzyme B
  • High sensitivity - ELISpot assays can measure responses with frequencies well below 1 in 100,000 cells
  • No in vitro expansion of cells required
  • High-throughput - ELISpot assays use only a small number of primary cells


KIT CONTENTS

  • Human Granzyme B Microplate
  • Biotinylated Detection Antibody
  • Streptavidin conjugated to Alkaline Phosphatase
  • Dilution Buffers
  • Wash Buffer Concentrate
  • BCIP/NBT Chromogen
  • Human Granzyme B Positive Control

OTHER REAGENTS REQUIRED

  • Pipettes and pipette tips
  • Deionized or distilled water
  • Squirt bottle, manifold dispenser, or automated microplate washer
  • 500 mL graduated cylinder
  • 37 °C CO2 incubator
  • Sterile culture media
  • Dissection microscope or an automated ELISpot reader

Product Datasheets

Preparation and Storage

Stability & Storage
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Granzyme B

Granzyme family serine proteases are stored in the granules of cytotoxic T lymphocytes and natural killer cells. Granzymes contain one S1 protease domain and are synthesized as preproproteins. Granzymes are released toward pathogen infected or transformed target cells during cellular immune reactions. Target cell entry by granzymes is through perforin channels. Granzymes trigger apoptosis by caspase-dependent and -independent mechanisms. There are five granzymes (A, B, G, H and K) in human and many more in mouse and rat.

Entrez Gene IDs:
3002 (Human); 14939 (Mouse)
Alternate Names:
C11; CCPI; CGL1; CGL-1; CSPB; CSP-B; CTLA1; CTLA-1; CTSGL1; Fragmentin-2; Granzyme B; Granzyme-2; GRB; GrzB; GZMB; HLP; SECT
⚠ WARNING: This product can expose you to chemicals including methanol, which is known to the State of California to cause reproductive toxicity with developmental effects. For more information, go to www.P65Warnings.ca.gov.

Citation for Human Granzyme B ELISpot Kit

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citation: Showing 1 - 1

  1. SHP-2 expression negatively regulates NK cell function.
    Authors: Purdy AK, Campbell KS
    J. Immunol., 2009;183(11):7234-43.
    Species: Human
    Sample Types: Whole Cells

FAQs

No product specific FAQs exist for this product, however you may

View all ELISpot and FluoroSpot Kit FAQs

Supplemental ELISA Products

Reviews for Human Granzyme B ELISpot Kit

Average Rating: 4 (Based on 2 Reviews)

5 Star
0%
4 Star
100%
3 Star
0%
2 Star
0%
1 Star
0%

Have you used Human Granzyme B ELISpot Kit?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

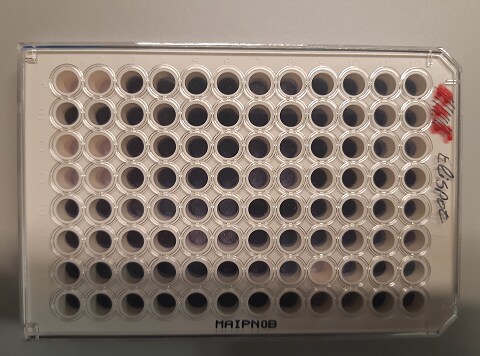

Human Granzyme B ELISpot Kit
By Anonymous on 08/16/2018
Sample Tested: Dendritic cells,T cells

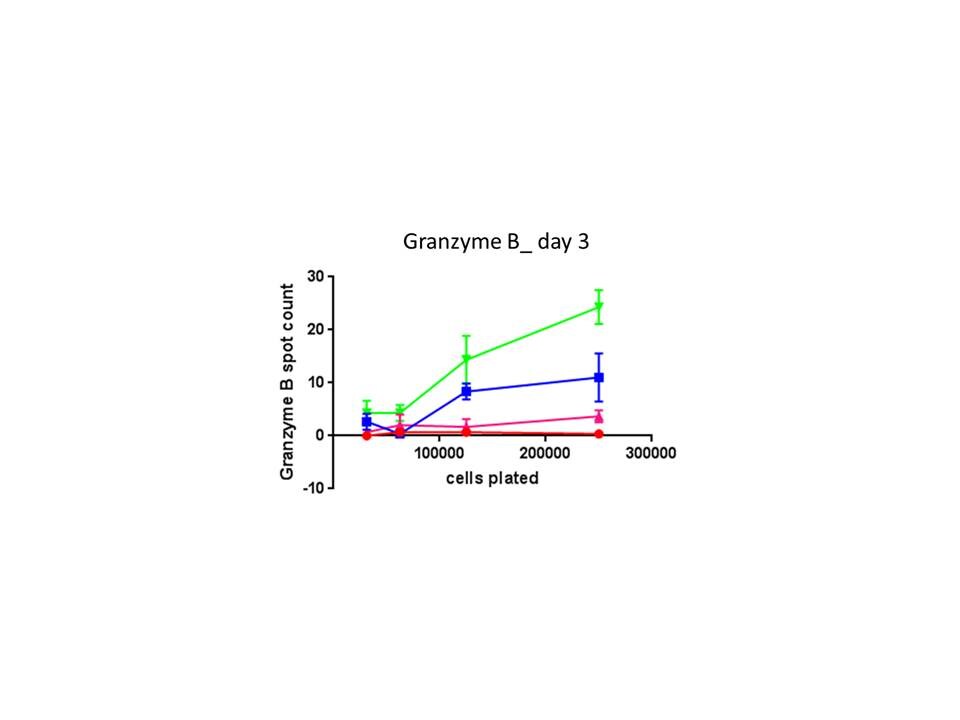

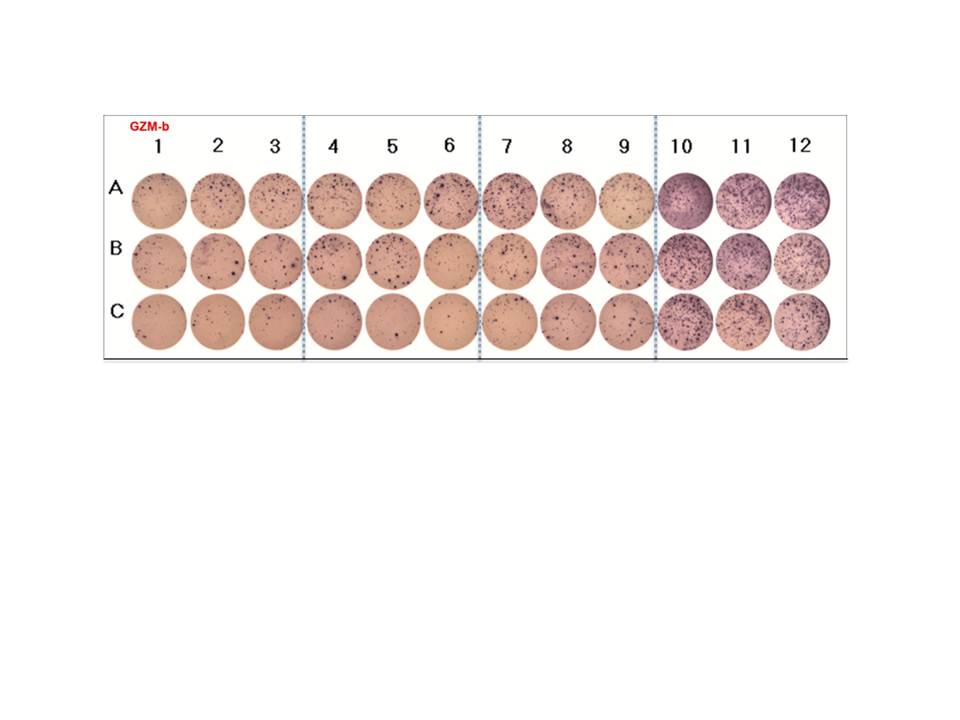

Human Granzyme B ELISpot Kit
By Anonymous on 05/14/2018
Sample Tested: Cell Culture Samples
