Human ICAM‑1/CD54 Fluorescein‑conjugated Antibody
R&D Systems | Catalog # BBA20
Key Product Details
Species Reactivity
Validated:
Human
Cited:
Human
Applications
Validated:
Flow Cytometry
Cited:
Flow Cytometry
Label
Fluorescein (Excitation = 488 nm, Emission = 515-545 nm)
Antibody Source
Monoclonal Mouse IgG1 Clone # BBIG-I1 (11C81)
Loading...
Product Specifications
Immunogen
Activated HUVEC human umbilical vein endothelial cells
Specificity
Stains human ICAM-1/CD54 on human ICAM-1 transfected COS cells. It does not bind COS cells transfected with E-Selectin, VCAM-1, or PECAM-1.
Clonality
Monoclonal
Host
Mouse
Isotype
IgG1
Scientific Data Images for Human ICAM‑1/CD54 Fluorescein‑conjugated Antibody
Detection of ICAM‑1/CD54 in Human PBMCs by Flow Cytometry.
Human peripheral blood mononuclear cells (PBMCs) were stained with Mouse Anti-Human CD14 APC-conjugated Monoclonal Antibody (Catalog # FAB3832A) and either (A) Mouse Anti-Human ICAM-1/CD54 Fluorescein-conjugated Monoclonal Antibody (Catalog # BBA20) or (B) Mouse IgG1Fluorescein Isotype Control (Catalog # IC002F). View our protocol for Staining Membrane-associated Proteins.

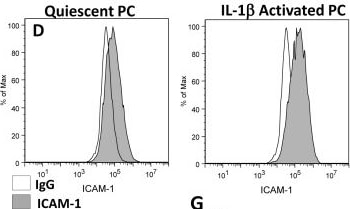

Detection of Human ICAM-1/CD54 by Flow Cytometry
EC and PC ICAM-1 expression and effects of CD18 blocking on neutrophil adhesion.ICAM-1 expression on (A) EC or (D) PC monolayers before and after 4 hr IL-1 beta activation was assessed by flow cytometry (IgG labeled control white). ICAM-1 expression on (B,C) EC and (E,F) PC following 4 hr IL-1 beta activation was imaged using confocal microscopy. Scale bars are 20 µm. (G) Neutrophil adhesion inhibition to IL-1 beta activated EC or PC monolayers. Freshly isolated neutrophils were pre-incubated with anti-Mac-1 or anti-LFA-1 antibodies and seeded onto EC or PC monolayers (activated for 4 with IL-1 beta ) in Sykes-Moore chambers and allowed to adhere prior to counting. Bars represent average neutrophil adhesion ± SEM. *P<0.05, when compared to the no block control. Image collected and cropped by CiteAb from the following publication (https://dx.plos.org/10.1371/journal.pone.0060025), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Human ICAM-1/CD54 by Flow Cytometry
EC and PC ICAM-1 expression and effects of CD18 blocking on neutrophil adhesion.ICAM-1 expression on (A) EC or (D) PC monolayers before and after 4 hr IL-1 beta activation was assessed by flow cytometry (IgG labeled control white). ICAM-1 expression on (B,C) EC and (E,F) PC following 4 hr IL-1 beta activation was imaged using confocal microscopy. Scale bars are 20 µm. (G) Neutrophil adhesion inhibition to IL-1 beta activated EC or PC monolayers. Freshly isolated neutrophils were pre-incubated with anti-Mac-1 or anti-LFA-1 antibodies and seeded onto EC or PC monolayers (activated for 4 with IL-1 beta ) in Sykes-Moore chambers and allowed to adhere prior to counting. Bars represent average neutrophil adhesion ± SEM. *P<0.05, when compared to the no block control. Image collected and cropped by CiteAb from the following publication (https://dx.plos.org/10.1371/journal.pone.0060025), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Human ICAM-1/CD54 by Immunocytochemistry/Immunofluorescence
EC and PC ICAM-1 expression and effects of CD18 blocking on neutrophil adhesion.ICAM-1 expression on (A) EC or (D) PC monolayers before and after 4 hr IL-1 beta activation was assessed by flow cytometry (IgG labeled control white). ICAM-1 expression on (B,C) EC and (E,F) PC following 4 hr IL-1 beta activation was imaged using confocal microscopy. Scale bars are 20 µm. (G) Neutrophil adhesion inhibition to IL-1 beta activated EC or PC monolayers. Freshly isolated neutrophils were pre-incubated with anti-Mac-1 or anti-LFA-1 antibodies and seeded onto EC or PC monolayers (activated for 4 with IL-1 beta ) in Sykes-Moore chambers and allowed to adhere prior to counting. Bars represent average neutrophil adhesion ± SEM. *P<0.05, when compared to the no block control. Image collected and cropped by CiteAb from the following publication (https://dx.plos.org/10.1371/journal.pone.0060025), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Human ICAM-1/CD54 by Immunocytochemistry/Immunofluorescence
EC and PC ICAM-1 expression and effects of CD18 blocking on neutrophil adhesion.ICAM-1 expression on (A) EC or (D) PC monolayers before and after 4 hr IL-1 beta activation was assessed by flow cytometry (IgG labeled control white). ICAM-1 expression on (B,C) EC and (E,F) PC following 4 hr IL-1 beta activation was imaged using confocal microscopy. Scale bars are 20 µm. (G) Neutrophil adhesion inhibition to IL-1 beta activated EC or PC monolayers. Freshly isolated neutrophils were pre-incubated with anti-Mac-1 or anti-LFA-1 antibodies and seeded onto EC or PC monolayers (activated for 4 with IL-1 beta ) in Sykes-Moore chambers and allowed to adhere prior to counting. Bars represent average neutrophil adhesion ± SEM. *P<0.05, when compared to the no block control. Image collected and cropped by CiteAb from the following publication (https://dx.plos.org/10.1371/journal.pone.0060025), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Human ICAM-1/CD54 by Immunocytochemistry/Immunofluorescence
EC and PC ICAM-1 expression and effects of CD18 blocking on neutrophil adhesion.ICAM-1 expression on (A) EC or (D) PC monolayers before and after 4 hr IL-1 beta activation was assessed by flow cytometry (IgG labeled control white). ICAM-1 expression on (B,C) EC and (E,F) PC following 4 hr IL-1 beta activation was imaged using confocal microscopy. Scale bars are 20 µm. (G) Neutrophil adhesion inhibition to IL-1 beta activated EC or PC monolayers. Freshly isolated neutrophils were pre-incubated with anti-Mac-1 or anti-LFA-1 antibodies and seeded onto EC or PC monolayers (activated for 4 with IL-1 beta ) in Sykes-Moore chambers and allowed to adhere prior to counting. Bars represent average neutrophil adhesion ± SEM. *P<0.05, when compared to the no block control. Image collected and cropped by CiteAb from the following publication (https://dx.plos.org/10.1371/journal.pone.0060025), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Human ICAM-1/CD54 by Immunocytochemistry/Immunofluorescence
EC and PC ICAM-1 expression and effects of CD18 blocking on neutrophil adhesion.ICAM-1 expression on (A) EC or (D) PC monolayers before and after 4 hr IL-1 beta activation was assessed by flow cytometry (IgG labeled control white). ICAM-1 expression on (B,C) EC and (E,F) PC following 4 hr IL-1 beta activation was imaged using confocal microscopy. Scale bars are 20 µm. (G) Neutrophil adhesion inhibition to IL-1 beta activated EC or PC monolayers. Freshly isolated neutrophils were pre-incubated with anti-Mac-1 or anti-LFA-1 antibodies and seeded onto EC or PC monolayers (activated for 4 with IL-1 beta ) in Sykes-Moore chambers and allowed to adhere prior to counting. Bars represent average neutrophil adhesion ± SEM. *P<0.05, when compared to the no block control. Image collected and cropped by CiteAb from the following publication (https://dx.plos.org/10.1371/journal.pone.0060025), licensed under a CC-BY license. Not internally tested by R&D Systems.Applications for Human ICAM‑1/CD54 Fluorescein‑conjugated Antibody
Application
Recommended Usage
Flow Cytometry
10 µL/106 cells
Sample: Human peripheral blood mononuclear cells (PBMCs)
Sample: Human peripheral blood mononuclear cells (PBMCs)
Reviewed Applications
Read 3 reviews rated 4.7 using BBA20 in the following applications:
Spectra Viewer
Plan Your Experiments
Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.
Spectra Viewer
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Protein A or G purified from hybridoma culture supernatant
Formulation
Supplied in a saline solution containing BSA and Sodium Azide.
Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Protect from light. Do not freeze.
- 12 months from date of receipt, 2 to 8 °C as supplied.
Background: ICAM-1/CD54
Long Name
Intercellular Adhesion Molecule 1
Alternate Names
CD54, ICAM1
Gene Symbol
ICAM1
Additional ICAM-1/CD54 Products
Product Documents for Human ICAM‑1/CD54 Fluorescein‑conjugated Antibody
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Human ICAM‑1/CD54 Fluorescein‑conjugated Antibody
For research use only
