Human/Mouse/Rat Jagged 1 Antibody

(5 citations)
  • Species Reactivity
    Human, Mouse, Rat
  • Specificity
    Detects human, mouse, and rat Jagged 1. In direct ELISAs, no cross‑reactivity with recombinant human Jagged 2 is observed. Stains human Jagged 1 transfectants but not the parental cell line or human Jagged 2 transfectants in flow cytometry.
  • Source
    Monoclonal Mouse IgG2B Clone # 188331
  • Purification
    Protein A or G purified from hybridoma culture supernatant
  • Immunogen
    NS0-derived recombinant human Jagged 1
    Ser32-Asp296
    Accession # P78504
  • Formulation
    Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied as a 0.2 µm filtered solution in PBS.
  • Label
    Unconjugated
Applications
  •
    Recommended
    Concentration
    Sample
  • Flow Cytometry
    2.5 µg/106 cells
    See below
  • CyTOF-ready
    Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples

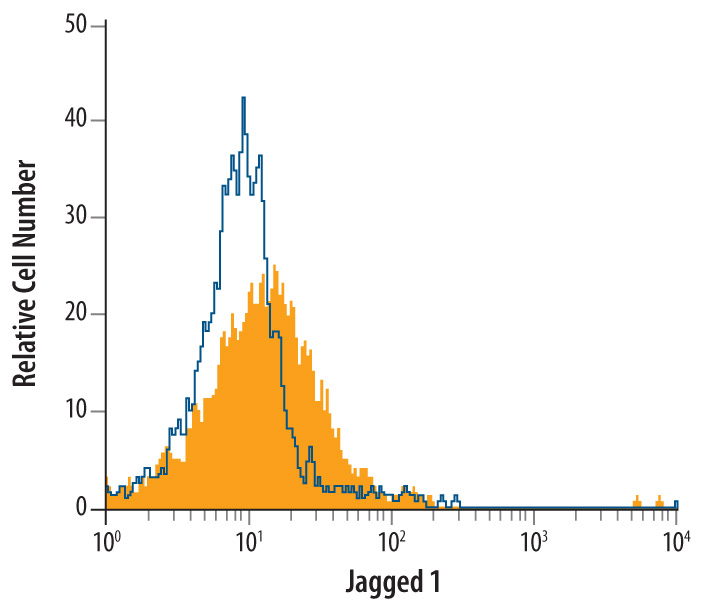

Detection of Jagged 1 in bEnd.3 Mouse Cell Line by Flow Cytometry. bEnd.3 mouse endo­thelioma cell line was stained with Mouse Anti-Human Jagged 1 Monoclonal Antibody (Catalog # MAB1277, filled histogram) or isotype control antibody (Catalog # MAB0041, open histogram), followed by Allophycocyanin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0101B).

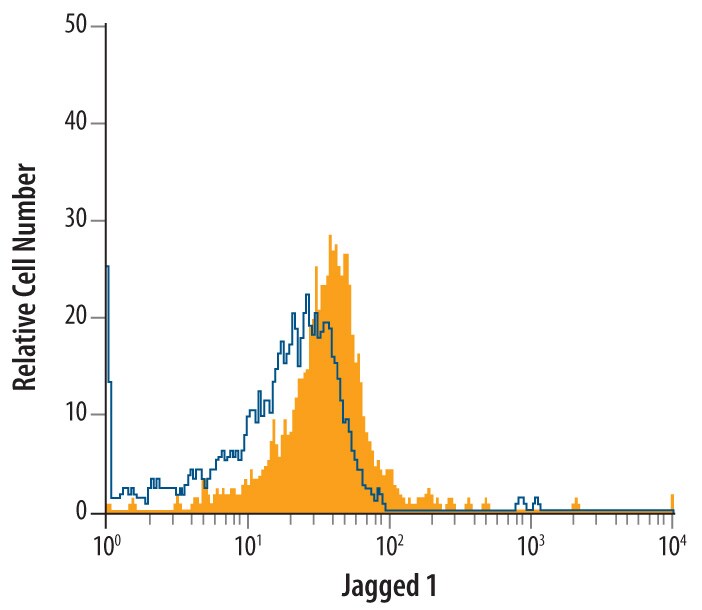

Detection of Jagged 1 in Rat Cortical Stem Cells by Flow Cytometry. Rat cortical stem cells were stained with Mouse Anti-Human Jagged 1 Monoclonal Antibody (Catalog # MAB1277, filled histogram) or isotype control antibody (Catalog # MAB0041, open histo­gram), followed by Allophycocyanin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0101B).
Preparation and Storage
  • Reconstitution
    Reconstitute at 0.5 mg/mL in sterile PBS.
  • Shipping
    The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
  • Stability & Storage
    Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
    • 12 months from date of receipt, -20 to -70 °C as supplied.
    • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
    • 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Background: Jagged 1

Jagged 1 is a 180 kDa type I transmembrane glycoprotein and member of the Delta-Serrate-Lag-2 (DSL) family of ligands that activate LIN12/Notch proteins. Human Jagged 1 is synthesized as a 1218 amino acid (aa) precursor that contains a 33 aa signal sequence, a 1034 aa extracellular domain (ECD), a 26 aa transmembrane segment, and a 125 aa cytoplasmic region. The ECD contains a DSL domain (aa 185‑229), a cysteine-rich region, 15 EGF-like repeats, of which many bind calcium, and nine potential sites for N-linked glycosylation. Mature human Jagged 1 shares 97% and 96% aa identity with mature mouse and rat Jagged 1, respectively. Jagged 1 is widely expressed in adult and fetal tissues. Jagged-Notch signaling specifies cell fate, regulates pattern formation, defines boundaries between different cell types, and modulates cell proliferation and differentiation, especially during hematopoiesis, myogenesis, neurogenesis, and development of vasculature (1‑8). Mutations in human Jagged 1 are the cause of Alagille syndrome, an autosomal-dominant disorder characterized by intrahepatic cholestasis and abnormalities of heart, eye, vertebrae, as well as characteristic facial appearance (9, 10).

  • References:
    1. Sainson, R.C. and A.L. Harris (2008) Angiogenesis 11:41.
    2. Cordle, J. et al. (2008) Nat. Struct. Mol. Biol. 15:849.
    3. Artavamis-Tsokanas, S. et al. (1999) Science 284:770.
    4. Lai, E.C. (2004) Development 131:965.
    5. Milner, L.A. et al. (1994) Blood 83:2057.
    6. Nyfeler, Y. et al. (2005) EMBO J. 24:3504
    7. Linheng, L. et al. (1998) Immunity 8:43.
    8. Iso, T. et al. (2003) Arterioscler. Thromb. Vasc. Biol. 23:543.
    9. Oda, T. et al. (1997) Nat. Genet. 16:235.
    10. Oda, T. et al. (1997) Genomics 43:376.
  • Entrez Gene IDs:
    182 (Human); 29146 (Rat)
  • Alternate Names:
    AGS; AHDMGC104644; Alagille syndrome; AWS; CD339 antigen; CD339; HJ1; JAG1; Jagged 1; Jagged1; JAGL1; protein jagged-1
Related Research Areas
Citations:

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

5 Citations: Showing 1 - 5
Filter your results:

Species
Applications
Sample Type
  1. Jagged1 Instructs Macrophage Differentiation in Leprosy
    PLoS Pathog, 2016;12(8):e1005808.
    Species: Human
    Sample Type: Whole Cells
    Application: Flow
  2. The CD46-Jagged1 interaction is critical for human TH1 immunity.
    Authors: Le Friec G, Sheppard D, Whiteman P, Karsten C, Shamoun S, Laing A, Bugeon L, Dallman M, Melchionna T, Chillakuri C, Smith R, Drouet C, Couzi L, Fremeaux-Bacchi V, Kohl J, Waddington S, McDonnell J, Baker A, Handford P, Lea S, Kemper C
    Nat Immunol, 2012;13(12):1213-21.
    Species: Human
    Sample Type: Whole Cells
    Application: Flow
  3. Der p 1 suppresses indoleamine 2, 3-dioxygenase in dendritic cells from house dust mite-sensitive patients with asthma.
    Authors: Maneechotesuwan K, Wamanuttajinda V, Kasetsinsombat K, Huabprasert S, Yaikwawong M, Barnes PJ, Wongkajornsilp A
    J. Allergy Clin. Immunol., 2009;123(1):239-48.
    Species: Human
    Sample Type: Whole Cells
    Application: Flow
  4. Antiparallel segregation of notch components in the immunological synapse directs reciprocal signaling in allogeneic Th:DC conjugates.
    Authors: Luty WH, Rodeberg D, Parness J, Vyas YM
    J. Immunol., 2007;179(2):819-29.
    Species: Human
    Sample Type: Whole Cells
    Application: ICC
  5. Differential induction of Th1-prone immunity by human dendritic cells activated with Sporothrix schenckii of cutaneous and visceral origins to determine their different virulence.
    Authors: Uenotsuchi T, Takeuchi S, Matsuda T, Urabe K, Koga T, Uchi H, Fukagawa S, Kawasaki M, Kajiwara H, Moroi Y, Furue M
    Int. Immunol., 2006;18(12):1637-46.
    Species: Human
    Sample Type: Cell Lysates
    Application: WB
