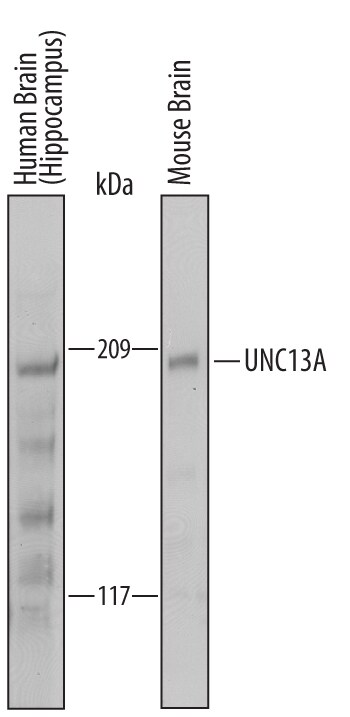

|Detection of Human and Mouse UNC13A by Western Blot. Western blot shows lysates of human brain (hippocampus) tissue and mouse brain tissue. PVDF Membrane was probed with 2 µg/mL of Sheep Anti-Human/Mouse UNC13A Antigen Affinity-purified Polyclonal Antibody (Catalog # AF6214) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). A specific band was detected for UNC13A at approximately 190-210 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 2.|
UNC13A (UNCoordinated 13A; also Munc13-1) is a 190‑210 kDa member of the UNC-13 family, C2 domain protein superfamily of molecules. It is expressed at synaptic junctions, particularly those involved in GABA, acetylcholine and glutamine transmission, and appears to be necessary for neurotransmitter release. In the presynaptic region, UNC13A likely interacts with syntaxin 1, converting it from a closed to an open configuration, thus allowing for SNARE complex formation. Human UNC13A is 1703 amino acids (aa) in length. It contains one C2 domain that mediates dimerization (aa 1‑79), a coiled‑coil region (aa 320‑357), one DAG Zn‑finger region (aa 553‑603), a second C2 domain (aa 663‑769), two MHD domains (aa 1093‑1512) and a third C2 domain (aa 1532‑1637). Western blots of mouse UNC13A show 105 kDa and 70 kDa forms. Over aa 1525‑1698, human UNC13A shares 98% aa identity with mouse UNC13A.
The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.
