Human Renin Quantikine ELISA Kit

This assay detects pro- and mature Renin.
  • Assay Type
    Solid Phase Sandwich ELISA
  • Format
    96-well strip plate
  • Assay Length
    4.5 hours
  • Sample Type & Volume Required Per Well
    Cell Culture Supernates (50 uL), Serum (25 uL), EDTA Plasma (25 uL), Heparin Plasma (25 uL), Urine (50 uL)
  • Sensitivity
    14.8 pg/mL
  • Assay Range
    31.3 - 2,000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Urine)
  • Specificity
    Natural and recombinant human Renin. This assay recognizes both the Pro- and mature versions of recombinant human Renin.
  • Cross-reactivity
    < 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
  • Interference
    No significant interference observed with available related molecules.
Control Available
Product Summary
The Quantikine Human Renin Immunoassay is a 4.5 hour solid-phase ELISA designed to measure human mature Renin and Prorenin in cell culture supernates, serum, plasma, and urine. It contains NS0-expressed recombinant human Renin and has been shown to accurately quantitate the recombinant factor. Results obtained using natural human Renin showed linear curves that were parallel to the standard curves obtained using the Quantikine kit standards. These results indicate that this kit can be used to determine relative mass values for naturally occurring human Renin.

Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision.
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision.
Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Urine
Intra-Assay Precision Inter-Assay Precision
Standard Deviation10.614.219.910.527.146.4


The recovery of Renin spiked to levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=8) 100 93-106
EDTA Plasma (n=4) 101 95-107
Heparin Plasma (n=4) 105 99-114
Serum (n=4) 101 90-109
Urine (n=4) 93 80-106

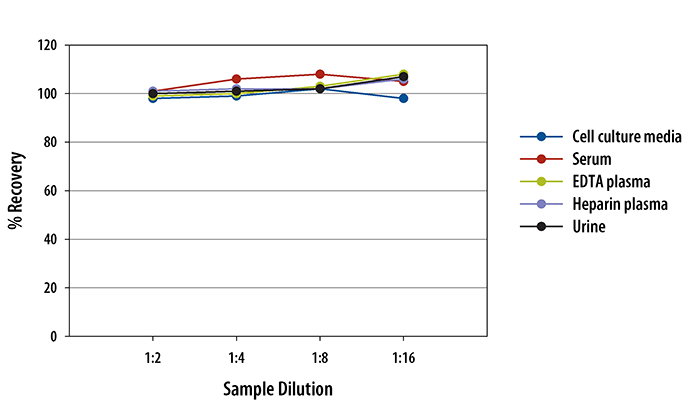

To assess the linearity of the assay, samples containing and/or spiked with high concentrations of Renin were serially diluted with Calibrator Diluent to produce samples with values within the dynamic range of the assay.
Human Renin Quantikine ELISA Kit
Preparation and Storage
  • Storage
    Store the unopened product at 2 - 8 °C. Do not use past expiration date.
Background: Renin

Renin is a secreted endopeptidase that plays a crucial role in the regulation of blood pressure and salt balance through the cleavage of angiotensinogen, which is the only known physiological substrate of Renin. The 406 aa precursor includes a signal peptide (aa 1 - 23), a propeptide (aa 24 - 66), and a mature chain (aa 67 - 406). The amino acid sequence of human Renin is 100%, 73%, 71% and 67% identical to that of chimpanzee, canine, mouse and rat.

Mouse Renin is a secreted, 42 - 47 kDa glycosylated member of the peptidase A1 family. It is an aspartyl protease that cleaves angiotensinogen to form angiotensin I. In mouse, there are two genes that code for Renin. One is in the submandibular gland and the other is in the kidney. The two mature Renin molecules are 95% amino acid (aa) identical. Renal Renin (Renin-1) is synthesized as a 381 aa proform (aa 22 - 402). In the kidney, prorenin is proteolytically cleaved after Thr71 to generate a mature enzyme. Mouse pro-renin shares 70% and 85% aa sequence identity with human and rat pro-renin, respectively.

    • Entrez Gene IDs
      5972 (Human); 19701 (Mouse);
    • Alternate Names
      angiotensin-forming enzyme; Angiotensinogenase; EC 3.4.23; EC; FLJ10761; HNFJ2; REN; renin precursor, renal; renin;
    Related Research Areas
    Assay Procedure
    Refer to the product for complete assay procedure.

    Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
    1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
    2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

    3. 100 µL Assay Diluent
    4.   Add 100 µL of Assay Diluent to each well.

    5. 50 µL Standard, Control, or Sample
    6.   Add 50 µL of Standard, control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 2 hours on a horizontal orbital microplate shaker.
    7.   Aspirate each well and wash, repeating the process 3 times for a total of 4 washes.

    8. 200 µL Conjugate
    9.   Add 200 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at room temperature for 2 hours on the shaker.
    10.   Aspirate and wash 4 times.

    11. 200 µL Substrate Solution
    12.   Add 200 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes on the benchtop. PROTECT FROM LIGHT.

    13. 50 µL Stop Solution
    14.   Add 50 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.
