Siglecs (Sialic acid binding Ig-like Lectins) are I-type (Ig-type) lectins belonging to the Ig superfamily. They are characterized by an N-terminal V-type Ig-like domain which mediates sialic acid binding, followed by varying numbers of C2-type Ig-like domains (1, 2). Fourteen human Siglecs have been cloned and characterized. They are Sialoadhesin/CD169/Siglec-1, CD22/Siglec-2, CD33/Siglec-3, Myelin-Associated Glycoprotein (MAG/Siglec-4a), and the identified Siglecs 5 to 11, plus 14 to 16 (1-3). To date, no Siglec has been shown to recognize any cell surface ligand other than sialic acid, suggesting that interactions with glycans containing this carbohydrate are important in mediating the biological functions of Siglecs. Human Siglec-2, also known as B-cell antigen CD22 or B lymphocyte cell adhesion molecule (BL-CAM), is a B cell restricted glycoprotein that is expressed in the cytoplasm of progenitor B and pre-B cells and on the surface of mature B cells and intestinal eosinophils (3,4). Two distinct human Siglec-2/CD22 cDNAs that arise from differential RNA processing of the same gene have been isolated. The predominant Siglec-2/CD22 beta encodes an 847 amino acid (aa) polypeptide with a hydrophobic signal peptide, an V-type N-terminal Ig-like domain, six C2-type Ig-like domains, a transmembrane region and a cytoplasmic tail with 4 immunoreceptor tyrosine-based inhibition motifs (ITIMs) (5). The variant Siglec-2/CD22 alpha encodes a 647 aa polypeptide missing two C2-type Ig-like domains and has a truncated (23 aa) cytoplasmic tail (6). Siglec-2/CD22 is an adhesion molecule that preferentially binds alpha 2,6- linked sialic acid on the same (cis) or adjacent (trans) cells. Besides its role as an adhesion molecule, Siglec-2/CD22 is a coreceptor that physically interacts with B cell receptor (BCR) and is rapidly phosphorylated upon BCR ligation (3). It negatively regulates BCR signals by recruiting tyrosine phosphatase SHP-1 to its ITIMs, likely within large oligomeric complexes. Over aa 20-687, human and mouse share 59% aa sequence identity.
Human Siglec-2/CD22 Alexa Fluor® 488-conjugated Antibody
R&D Systems | Catalog # FAB1968G
Key Product Details
Species Reactivity
Applications
Label
Antibody Source
Product Specifications
Immunogen
Asp20-Arg687
Accession # CAA42006
Specificity
Clonality
Host
Isotype
Scientific Data Images for Human Siglec-2/CD22 Alexa Fluor® 488-conjugated Antibody

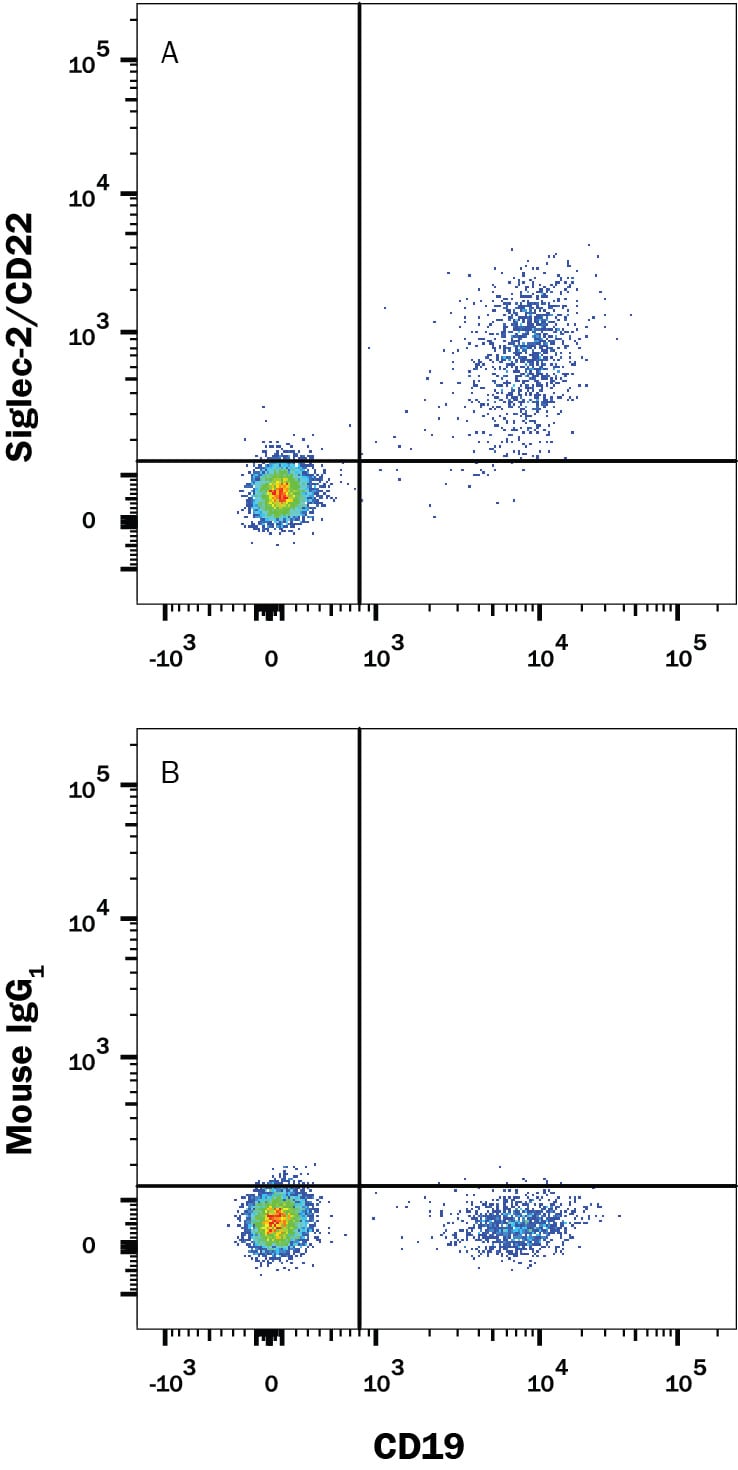

Detection of Siglec‑2/CD22 in Human PBMCs by Flow Cytometry.
Human peripheral blood mononuclear cells (PBMCs) were stained with Mouse Anti-Human CD19 APC-conjugated Monoclonal Antibody (Catalog # FAB4867A) and either (A) Mouse Anti-Human Siglec-2/CD22 Alexa Fluor® 488-conjugated Monoclonal Antibody (Catalog # FAB1968G) or (B) Mouse IgG1 Alexa Fluor® 488 Isotype Control (Catalog # IC002G). View our protocol for Staining Membrane-associated Proteins.Applications for Human Siglec-2/CD22 Alexa Fluor® 488-conjugated Antibody
Flow Cytometry
Sample: Human peripheral blood mononuclear cells (PBMCs)
Spectra Viewer
Plan Your Experiments
Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.
Spectra ViewerFlow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, 2 to 8 °C as supplied.
Background: Siglec-2/CD22
References
- Magesh, S. et al. (2011) Curr. Med. Chem. 18:3537.
- Bocher, B.S.. and N. Zimmermann (2015) J. Allergy Clin. Immunol. 135:598.
- Nitschke, L. (2014) Glycobiology 24:807.
- Wen, T. et al. (2012) J. Immunol. 188:1075.
- Wilson, G.L et al. (1991) J. Exp. Med. 173:137.
- Stamenkovic, I. and B. Seed (1990) Nature 345:74.
Long Name
Alternate Names
Gene Symbol
UniProt
Additional Siglec-2/CD22 Products
Product Documents for Human Siglec-2/CD22 Alexa Fluor® 488-conjugated Antibody
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Human Siglec-2/CD22 Alexa Fluor® 488-conjugated Antibody
This product is provided under an agreement between Life Technologies Corporation and R&D Systems, Inc, and the manufacture, use, sale or import of this product is subject to one or more US patents and corresponding non-US equivalents, owned by Life Technologies Corporation and its affiliates. The purchase of this product conveys to the buyer the non-transferable right to use the purchased amount of the product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). The sale of this product is expressly conditioned on the buyer not using the product or its components (1) in manufacturing; (2) to provide a service, information, or data to an unaffiliated third party for payment; (3) for therapeutic, diagnostic or prophylactic purposes; (4) to resell, sell, or otherwise transfer this product or its components to any third party, or for any other commercial purpose. Life Technologies Corporation will not assert a claim against the buyer of the infringement of the above patents based on the manufacture, use or sale of a commercial product developed in research by the buyer in which this product or its components was employed, provided that neither this product nor any of its components was used in the manufacture of such product. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, Cell Analysis Business Unit, Business Development, 29851 Willow Creek Road, Eugene, OR 97402, Tel: (541) 465-8300. Fax: (541) 335-0354.
For research use only
