Mouse AHR APC-conjugated Antibody

IC6697A has been discontinued. View all AHR products.
Datasheet / CoA / SDS
Product Details
  • Species Reactivity
  • Specificity
    Detects human and mouse AHR in Western blots.
  • Source
    Polyclonal Sheep IgG
  • Purification
    Antigen Affinity-purified
  • Immunogen
    E. coli-derived recombinant mouse AHR
    Asn706-Ser805 (Thr758Ala)
    Accession # P30561
  • Formulation
    Supplied in a saline solution containing BSA and Sodium Azide.
  • Label
Product Datasheets

Certificate of Analysis Lookup

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Certificate of Analysis Lookup

Certificate of Analysis Request Form

To download a Certificate of Analysis, please enter the catalog and lot numbers in the search box below.

Note: Certificate of Analysis not available for kit components.

  • Intracellular Staining by Flow Cytometry
    10 µL/106 cells
    See below
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Example

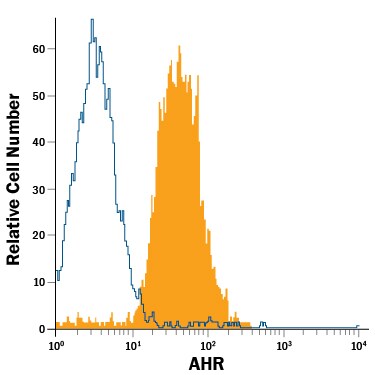

Intracellular Staining by Flow Cytometry
Detection of AHR in C2C12 Mouse Cell Line by Flow Cytometry. C2C12 mouse myoblast cell line was stained with Sheep Anti-Mouse AHR APC‑conjugated Antigen Affinity-purified Polyclonal Antibody (Catalog # IC6697A, filled histogram) or isotype control antibody (Catalog # IC016A, open histogram). View our protocol for Staining Intracellular Molecules.
Preparation and Storage
  • Shipping
    The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
  • Stability & Storage
    Protect from light. Do not freeze.
    • 12 months from date of receipt, 2 to 8 °C as supplied.
Background: AHR

AHR (Aryl-hydrocarbon receptor; also bHLHE76) is a 100-105 kDa member of the bHLH/PAS transcription factor family. It is widely expressed and serves many functions. First, it binds multiple xenobiotic chemicals in the cytoplasm. This induces dimerization with ARNT, translocation to the nucleus, and activation of P450 genes such as CYP1A1 and UGT1A6. Second, it appears to block cell cycle progression, possibly via a downregulation of CDK proteins. And third, it blocks apoptosis by interacting with E2F1, thus silencing Tap73 and Apaf1 genes. Mouse AHR precursor is 848 amino acids (aa) in length. It contains a nine aa prosegment, plus an 839 aa mature molecule that contains a DNA binding motif (aa 12-39), a bHLH region (aa 40-80), two PAS domains (aa 116-336) and one PAC segment that stabilizes the PAS domains (aa 342-383). There are multiple alleles for mouse AHR. One 95-97 kDa allele shows a premature truncation after Ser805, while a second 112 kDa allele shows a 41 aa substitution for aa 843-848. Over aa 706-805, mouse AHR shares 87% and 63% aa identity with rat and human AHR, respectively.

  • Long Name:
    Aryl Hydrocarbon Receptor
  • Entrez Gene IDs:
    196 (Human); 11622 (Mouse); 25690 (Rat)
  • Alternate Names:
    Ah receptor; AHR; AH-receptor; aryl hydrocarbon receptor; BHLHE76; bHLHe76aromatic hydrocarbon receptor; Class E basic helix-loop-helix protein 76
