Key Product Details

Species Reactivity

Mouse

Applications

Flow Cytometry, CyTOF-ready

Label

Alexa Fluor 532 (Excitation = 534 nm, Emission = 553 nm)

Antibody Source

Recombinant Monoclonal Rat IgG2B Clone # 705829
View all NKG2A/CD159a Primary Antibodies »

Product Specifications

Immunogen

CHO Chinese hamster ovary cell line transfected with mouse NKG2A/CD159a
Accession # Q9Z202

Specificity

Stains mouse NKG2A/CD159a transfectants and not irrelevant transfectants in flow cytometry.

Clonality

Monoclonal

Host

Rat

Isotype

IgG2B

Scientific Data Images for NKG2A/CD159a/KLRC1 Antibody (705829) [Alexa Fluor® 532]

NKG2A/CD159a/KLRC1 Antibody (705829) [Alexa Fluor® 532]

NKG2A/CD159a/KLRC1 Antibody (705829) [Alexa Fluor® 532] [FAB6867X] -

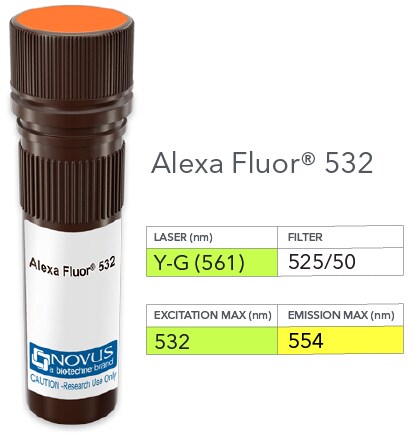

NKG2A/CD159a/KLRC1 Antibody (705829) [Alexa Fluor® 532] [FAB6867X] - Vial of Alexa Fluor 532 conjugated antibody. Alexa Fluor 532 is optimally excited at 532 nm by the Yellow-Green laser (561 nm) and has an emission maximum of 554 nm.

Applications for NKG2A/CD159a/KLRC1 Antibody (705829) [Alexa Fluor® 532]

Application
Recommended Usage

CyTOF-ready

Optimal dilutions of this antibody should be experimentally determined.

Flow Cytometry

Optimal dilutions of this antibody should be experimentally determined.
Application Notes
Optimal dilution of this antibody should be experimentally determined.

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer
Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

50mM Sodium Borate

Preservative

0.05% Sodium Azide

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C in the dark.

Background: NKG2A/CD159a

NK group 2 member A (NKG2A), also known as killer lectin like receptor c1 (KLRC1) and CD159a, is a ~38 kDa type II transmembrane protein belonging to the C-type lectin superfamily and plays a role in suppression of cytotoxic CD8+ T cell activity and functions as an immune checkpoint (1,2). NKG2A belongs to a group of natural killer (NK) cell inhibitor receptors (IRs) which includes killer immunoglobulin receptors (KIRs), lymphocyte activation gene-3 (LAG-3), T cell immunoreceptor with Ig and ITIM domains (TIGIT), programmed death ligand-1 (PD-1), and T cell immunoglobulin mucin-3 (TIM-3) (1,3). NKG2A is synthesized as a protein of 233 amino acids (aa) with a theoretical molecular weight of 26.3 kDa and is expressed on CD56hi NK cells, NKT cells, and some CD8+ alphabeta T cells (2,4). Together with CD94, NKG2A forms a heterodimer and acts as a receptor for the MHC Class I molecular human leukocyte antigen (HLA)-E (1-3). The NKG2A/CD94 receptor interaction with the HLA-E ligand results in phosphorylation of NKG2A's immunoreceptor tyrosine-based inhibition motifs (ITIMs), causing suppression of activating signals from immunoreceptor tyrosine-based activation motif (ITAM)- containing T cell receptors (TCR) or other activating receptors like NKG2D, via the intracellular phosphatase SHP1 (2,3,5). Overall, cancer cells utilize the NKG2A-HLA-E interaction and signaling to evade immune surveillance by NK cells and T cells (1-3,5-6).

Similar to cytotoxic T lymphocyte associated protein 4 (CTLA-4) and PD-1, NKG2A has become a prominent target for immune checkpoint blockade and cancer immunotherapy (1-3,5-6). Monalizumab is a novel IgG4 monoclonal antibody developed for blocking NKG2A's interaction with HLA-E and has shown promising results in clinical trials (1-3,5-6). In addition to being used as a single agent, it is being studied as a possible combination therapy with other blocking antibodies such as anti-PD-L1 and anti-epidermal growth factor receptor (EGFR) (2,5,6).

References

1. Alfarra, H., Weir, J., Grieve, S., & Reiman, T. (2020). Targeting NK Cell Inhibitory Receptors for Precision Multiple Myeloma Immunotherapy. Frontiers in immunology, 11, 575609. https://doi.org/10.3389/fimmu.2020.575609

2. Creelan, B. C., & Antonia, S. J. (2019). The NKG2A immune checkpoint - a new direction in cancer immunotherapy. Nature reviews. Clinical oncology, 16(5), 277-278. https://doi.org/10.1038/s41571-019-0182-8

3. Zaghi, E., Calvi, M., Marcenaro, E., Mavilio, D., & Di Vito, C. (2019). Targeting NKG2A to elucidate natural killer cell ontogenesis and to develop novel immune-therapeutic strategies in cancer therapy. Journal of leukocyte biology, 105(6), 1243-1251. https://doi.org/10.1002/JLB.MR0718-300R

4. Uniprot (P26715)

5. Borst, L., van der Burg, S. H., & van Hall, T. (2020). The NKG2A-HLA-E Axis as a Novel Checkpoint in the Tumor Microenvironment. Clinical cancer research : an official journal of the American Association for Cancer Research, 26(21), 5549-5556. https://doi.org/10.1158/1078-0432.CCR-19-2095

6. Andre, P., Denis, C., Soulas, C., Bourbon-Caillet, C., Lopez, J., Arnoux, T., Blery, M., Bonnafous, C., Gauthier, L., Morel, A., Rossi, B., Remark, R., Breso, V., Bonnet, E., Habif, G., Guia, S., Lalanne, A. I., Hoffmann, C., Lantz, O., Fayette, J.,... Vivier, E. (2018). Anti-NKG2A mAb Is a Checkpoint Inhibitor that Promotes Anti-tumor Immunity by Unleashing Both T and NK Cells. Cell, 175(7), 1731-1743.e13. https://doi.org/10.1016/j.cell.2018.10.014

Long Name

Natural Killer G2A

Alternate Names

CD159a, Klrc1, NKG2

Gene Symbol

KLRC1

Additional NKG2A/CD159a Products

Product Documents for NKG2A/CD159a/KLRC1 Antibody (705829) [Alexa Fluor® 532]

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Download SDS

Product Specific Notices for NKG2A/CD159a/KLRC1 Antibody (705829) [Alexa Fluor® 532]

Alexa Fluor (R) products are provided under an intellectual property license from Life Technologies Corporation. The purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). The sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: (i) in manufacturing; (ii) to provide a service, information, or data in return for payment; (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are resold for use in research. For information on purchasing a license to this product for purposes other than as described above, contact Life Technologies Corporation, 5791 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@lifetech.com. This conjugate is made on demand. Actual recovery may vary from the stated volume of this product. The volume will be greater than or equal to the unit size stated on the datasheet.

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
