Non-Human Primate CTLA-4 Cartridge

R&D Systems | Catalog # SPCKB-NP-011349

Simple Plex Non-Human Primate CTLA-4 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.
R&D Systems

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (25 µL), EDTA Plasma (25 µL), Heparin Plasma (25 µL)

Sensitivity

0.1 pg/mL

Assay Range

3.14-30000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)

Non-Human Primate CTLA-4 Cartridge Summary

Simple Plex assay for the detection of non-human primate Cytotoxic T-Lymphocyte  Associated protein-4 (CTLA-4) in cell culture supernatant (CCS), serum, and plasma (EDTA/Heparin).

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all CTLA-4 Simple Plex »

Compatible Instruments

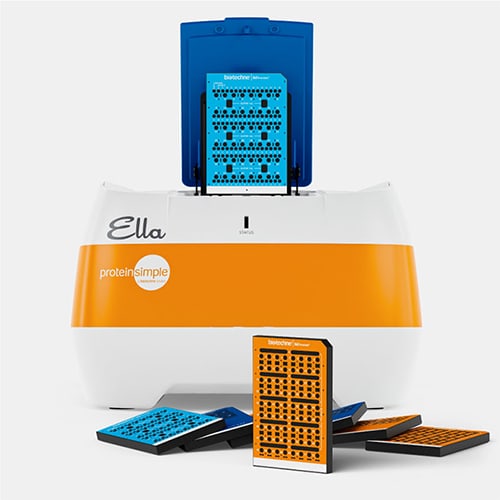

Ella Automated Immunoassay System

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.
Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Non-human Primate

Specificity

Natural and recombinant CTLA-4.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay.

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents.

Cell Culture Supernates, EDTA Plasma, Heparin Plasma, Serum

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 54 51
Mean (pg/mL) 209 9821 212 9517
Standard Deviation 8.97 616 16.4 701
CV% 4.3 6.3 7.7 7.4

Recovery for Non-Human Primate CTLA-4 Cartridge

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type Average % Recovery Range %
EDTA Plasma (n=4) 103 100-105
Heparin Plasma (n=4) 104 101-109
Serum (n=5) 105 88-114

Linearity

Samples containing and/or spiked with high concentrations of CTLA-4 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Images for Non-Human Primate CTLA-4 Cartridge

Non-Human Primate CTLA-4 Ella Assay Standard Curve

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: CTLA-4

CTLA-4/CD152 (Cytotoxic T-Lymphocyte Antigen 4) is a transmembrane T cell inhibitory molecule that is expressed as a covalent homodimer. CTLA-4 is recruited from intracellular vesicles to the immunological synapse beginning 1-2 days after T cell activation. It forms a linear lattice with B7-1 on APC, inducing negative regulatory signals and ending CD28-dependent T cell activation. Mice deleted for CTLA-4 develop lethal autoimmune reactions due to continued T cell activation and poor control by regulatory T cells which constitutively express CTLA-4.

Long Name

Cytotoxic T-lymphocyte-associated Molecule 4

Alternate Names

CD152, CTLA4

Entrez Gene IDs

1493 (Human); 12477 (Mouse); 403696 (Canine); 102115124 (Cynomolgus Monkey)

Gene Symbol

CTLA4
