Recombinant Cynomolgus Monkey IL-23R His-tag Protein, CF

Catalog # Availability Size / Price Qty
10331-IR-050
Recombinant Cynomolgus Monkey IL-23R His-tag Protein, CF Data
2 Images
Product Details
FAQs
Reviews

Recombinant Cynomolgus Monkey IL-23R His-tag Protein, CF Summary

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA. When Recombinant Human IL-23 Protein (Catalog # 1290-IL) is immobilized at 1 μg/mL (100 μL/well), the concentration of Recombinant Cynomolgus Monkey IL-23R His-tag (Catalog # 10331-IR) that produces 50% of the optimal binding response is found to be approximately 75-450 ng/mL
Source
Human embryonic kidney cell, HEK293-derived cynomolgus monkey IL-23R protein
Gly24-Asp353, with a C-terminal 6-His tag
Accession #
N-terminal Sequence
Analysis
Gly24
Structure / Form
Monomer
Predicted Molecular Mass
39 kDa
SDS-PAGE
63-70 kDa, under reducing conditions

Product Datasheets

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

10331-IR

Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 200 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Data Images

Binding Activity View Larger

When Recombinant Human IL-23 Protein (Catalog # 1290-IL) is immobilized at 1 µg/mL (100 µL/well), the concentration of Recombinant Cynomolgus Monkey IL-23R His-tag Protein (Catalog # 10331-IR) that produces 50% of the optimal binding response is found to be approximately 75-450 ng/mL.

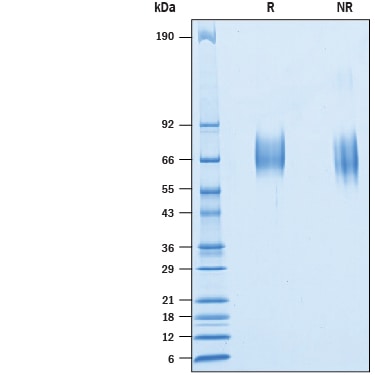

SDS-PAGE View Larger

2 μg/lane of Recombinant Cynomolgus Monkey IL-23R His-tag (Catalog # 10331-IR) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 63-70 kDa.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: IL-23R

Interleukin 23 (IL-23) is a heterodimeric cytokine composed of two disulfide-linked subunits, a p19 subunit that is unique to IL-23, and a p40 subunit that is shared with IL-12 (1-5). The functional IL-23 receptor complex consists of two receptor subunits, the IL-12 receptor beta 1 subunit (IL-12R beta 1) and the IL-23-specific receptor subunit (IL-23R) (3). Human IL-23R cDNA encodes a 629 amino acids (aa) type I transmembrane protein with a 23 aa residue signal peptide, a 330 aa residue extracellular domain, a 23 aa residue transmembrane domain and a 253 aa residue cytoplasmic region. IL-23 R shares structural features with the IL-12R beta 2, including an N-terminal Ig-like domain, two cytokine receptor domains and multiple glycosylation sites in the extracellular domain. IL-23R lacks the three extracellular membrane-proximal fibronectin-type III domains present on IL-12R beta 2. IL-23R has a WQPWS sequence in the transmembrane-proximal cytokine receptor domain similar to the cytokine receptor signature WSXWS motif (6). The cytoplasmic region of IL-23R has three potential Src homology 2 domain-binding sites and two potential Stat-binding sites. The gene for human IL-23R is located on human chromosome 1 within 150 kb of IL-12R beta 2. Based on quantitative real-time PCR, human IL-23R mRNA is expressed in a human Th1 and Th0 clone as well as several NK cell lines and clones. Low but detectable levels of IL-23R mRNA is also expressed in EBV-transformed B cells and activated PBMC. IL-23 initiates a signal transduction cascade similar to that of IL-12, and involves Jak2, Tyk2, Stat1, Stat3, Stat4, and Stat5 (2). The Cynomolgus IL-23R shares 96%, 71% and 77% amino acid sequence identity to Human, mouse, and rat IL-23R, respectively.

References
  1. Oppmann, B. et al. (2000) Immunity 13:715.
  2. Lankford, C.S. and Frucht, D.M. (2003) J. Leukoc. Biol. 73:49.
  3. Parham, C. et al. (2002) J. Immunol. 168:5699.
  4. Belladonna, M.L. et al. (2002) J. Immunol. 168:5448.
  5. Aggarwal, S. et al. (2003) J. Biol. Chem. 278:1910.
  6. Schroder, J. et al. (2015) J. Biol. Chem. 290:359.
Long Name
Interleukin 23 Receptor
Entrez Gene IDs
149233 (Human); 209590 (Mouse); 102133210 (Cynomolgus Monkey)
Alternate Names
IBD17; IL-23 R; IL-23 receptor; IL23R; IL-23R; interleukin 23 receptor; interleukin-23 receptor
