Recombinant Human CD39/ENTPD1 Protein, CF

Catalog # Availability Size / Price Qty
R&D Systems Recombinant Proteins and Enzymes
1 Image
Product Details
Citations (5)
Supplemental Products
Reviews (1)

Recombinant Human CD39/ENTPD1 Protein, CF Summary

Product Specifications

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining
Endotoxin Level
<1.0 EU per 1 μg of the protein by the LAL method.
Measured by its ability to hydrolyze the 5’-phosphate groups from the substrate adenosine-5’-triphosphate (ATP). The orthophosphate product is measured by a Malachite Green Phosphate Detection Kit (Catalog # DY996). The specific activity is >5,000 pmol/min/µg, as measured under the described conditions.
Chinese Hamster Ovary cell line, CHO-derived human CD39/ENTPD1 protein
Thr38-Val478, with a C-terminal 6-His tag
Accession #
N-terminal Sequence
Predicted Molecular Mass
51 kDa
65-90 kDa, reducing conditions

Product Datasheets

You must select a language.



Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.


Formulation Supplied as a 0.2 μm filtered solution in Tris, NaCl, CaCl2 and Glycerol.
Shipping The product is shipped with dry ice or equivalent. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 6 months from date of receipt, -20 to -70 °C as supplied.
  • 3 months, -20 to -70 °C under sterile conditions after opening.

Assay Procedure

  • Assay Buffer: 25 mM Tris, 5 mM CaCl2, pH 7.5
  • Recombinant Human CD39/ENTPD1 (rhCD39) (Catalog # 4397-EN)
  • Substrate: ATP (Sigma, Catalog # A-7699), 10 mM stock in deionized water
  • Malachite Green Phosphate Detection Kit (Catalog # DY996)
  • 96-well Clear Plate (Costar, Catalog # 92592)
  • Plate Reader (Model: SpectraMax Plus by Molecular Devices) or equivalent
  1. Dilute rhCD39 to 0.04 µg/mL in Assay Buffer.
  2. Prepare a standard curve from the 1 M Phosphate Standard supplied in the malachite green phosphate detection kit. First, add 10 µL of the 1 M Phosphate Standard to 990 µL of Assay Buffer for a 10 mM stock. Then, add 10 µL of the 10 mM phosphate stock to 990 µL of Assay Buffer for a 100 µM stock. (This is the first dilution to use as a standard.) Finally, perform six additional two-fold serial dilutions of the 100 µM phosphate stock. The standard curve has a range of 0.039 to 2.5 nmol per well.
  3. Transfer to a 96 well clear plate (in duplicate) 25 µL of diluted rhCD39 at 0.04 µg/mL, standard curve, and blanks (Assay Buffer).
  4. Dilute Substrate to 100 µM in Assay Buffer.
  5. Add 25 µL of the diluted Substrate to all wells. Mix well.
  6. Cover the plate with parafilm or a plate sealer and incubate at 37 °C for 30 minutes.
  7. After incubation, add 10 µL of the Malachite Green Reagent A to each sample, standard, and blank. Mix and incubate for 10 minutes at room temperature.
  8. Add 10 µL of the Malachite Green Reagent B to each sample, standard, and blank. Mix and incubate for 20 minutes at room temperature.
  9. Read plate at 620 nm (absorbance) in endpoint mode.
  10. Calculate specific activity:

     Specific Activity (pmol/min/µg) =

Phosphate released* (nmol) x (1000 pmol/1 nmol)
Incubation time (min) x amount of enzyme (µg)

     *Derived from the phosphate standard curve using linear or 4-parameter fitting and adjusted for Substrate Blank.

Per Well:
  • rhCD39: 0.001 µg
  • Substrate: 35.7 µM
Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Background: CD39/ENTPD1

Ectonucleoside triphosphate diphosphohydrolase-1 (NTPDase-1) is an integral membrane protein with an extracellular active site. Recombinant human NTPDase-1 was expressed as a protein lacking its N- and C-terminal transmembrane domains, resulting in the secretion of the soluble recombinant human NTPDase-1 ectodomain. NTPDase-1 was originally described as CD39, a B lymphocyte cell surface marker (2), but it is also present on the surface of natural killer cells, T cells, and some endothelial cells (3). NTPDase-1 hydrolyzes the beta - and gamma  phosphate residues of nucleotides, preferring ATP as the substrate. Through its hydrolysis of extracellular nucleotides, NTPDase-1 plays a role in the regulation of purinergic signaling (4). NTPDase-1 is involved in the processes of thromboregulation and vascular inflammation (5). The administration of soluble NTPDase-1 may have therapeutic applications for the treatment of some vascular and transplantation-associated diseases (6).

  1. Maliszewski, C.R. et al. (1994) J. Immunol. 153:3574.
  2. Rowe, M. et al. (1982) Int. J. Cancer 29:373.
  3. Kansas, G.S. et al. (1991) J. Immunol. 146:2235.
  4. Kishore, B.K. et al. (2005) Am. J. Physiol. Renal Physiol. 288:F1032.
  5. Marcus, A.J. et al. (2005) Semin. Thromb. Hemost. 31:234.
  6. Robson, S.C. et al. (2005) Semin. Thromb. Hemost. 31:217.
Long Name
Ecto-Nucleoside Triphosphate Diphosphohydrolase 1
Entrez Gene IDs
953 (Human); 12495 (Mouse); 64519 (Rat); 102132860 (Cynomolgus Monkey)
Alternate Names
ADPase; ATPDase; ATP-diphosphatase; CD39 antigen; CD39; CD39EC; DKFZp686D194; DKFZp686I093; EC 3.6.1; ecto-apyrase; Ecto-ATP diphosphohydrolase 1; Ecto-ATPase 1; Ecto-ATPDase 1; ectonucleoside triphosphate diphosphohydrolase 1; ENTPD1; FLJ40921; FLJ40959; Lymphoid cell activation antigen; NTPD1; NTPDase 1; NTPDase-1

Citations for Recombinant Human CD39/ENTPD1 Protein, CF

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

5 Citations: Showing 1 - 5
Filter your results:

Filter by:

  1. Detection of CD39 and a Highly Glycosylated Isoform of Soluble CD73 in the Plasma of Patients with Cervical Cancer: Correlation with Disease Progression
    Authors: R Muñóz-Godí, M de Lourdes, B Weiss-Stei, JJ Montesinos, A Del Carmen, R García-Roc, J Hernández-, C Azucena Do, LR Ávila-Ibar, DB Torres-Pin, G Molina-Cas, R Chacón-Sal, L Vallejo-Ca, SM Pérez-Tapi, A Monroy-Gar
    Mediators of Inflammation, 2020;2020(0):1678780.
    Species: Human
    Sample Types: Reference Standard
  2. Blocking Antibodies Targeting the CD39/CD73 Immunosuppressive Pathway Unleash Immune Responses in Combination Cancer Therapies
    Authors: I Perrot, HA Michaud, M Giraudon-P, S Augier, A Docquier, L Gros, R Courtois, C Déjou, D Jecko, O Becquart, H Rispaud-Bl, L Gauthier, B Rossi, S Chanteux, N Gourdin, B Amigues, A Roussel, A Bensussan, JF Eliaou, J Bastid, F Romagné, Y Morel, E Narni-Manc, E Vivier, C Paturel, N Bonnefoy
    Cell Rep, 2019;27(8):2411-2425.e9.
    Species: Human
    Sample Types: Protein
    Applications: ELISA Capture
  3. HPV-16 Infection Is Associated with a High Content of CD39 and CD73 Ectonucleotidases in Cervical Samples from Patients with CIN-1
    Authors: M de Lourdes, S López-Cisn, V Gutiérrez-, R García-Roc, B Weiss-Stei, J Hernández-, HI Sánchez-Pe, LR Ávila-Ibar, CA Don-López, R Muñóz-Godí, DBT Pineda, R Chacón-Sal, L Vallejo-Ca, SM Pérez-Tapi, A Monroy-Gar
    Mediators Inflamm., 2019;2019(0):4651627.
    Species: Human
    Sample Types: Cell Culture Supernates
    Applications: ELISA
  4. ADPase CD39 Fused to Glycoprotein VI-Fc Boosts Local Antithrombotic Effects at Vascular Lesions
    Authors: H Degen, O Borst, M Ziegler, AK Mojica Mun, J Jamasbi, B Walker, S Göbel, J Fassbender, K Adler, R Brandl, G Münch, R Lorenz, W Siess, M Gawaz, M Ungerer
    J Am Heart Assoc, 2017;6(8):.
    Applications: Enzyme Assay
  5. The ubiquitin ligase ASB4 promotes trophoblast differentiation through the degradation of ID2.
    Authors: Townley-Tilson, W H Davi, Wu, Yaxu, Ferguson, James E, Patterson, Cam
    PLoS ONE, 2014;9(2):e89451.
    Species: Human
    Sample Types: Whole Cells
    Applications: Bioassay


No product specific FAQs exist for this product, however you may

View all Proteins and Enzyme FAQs

Reviews for Recombinant Human CD39/ENTPD1 Protein, CF

Average Rating: 5 (Based on 1 Review)

5 Star
4 Star
3 Star
2 Star
1 Star

Have you used Recombinant Human CD39/ENTPD1 Protein, CF?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

Recombinant Human CD39/ENTPD1 Protein, CF
By Anonymous on 01/03/2020
Application: In vitro bioactivity in cell culture

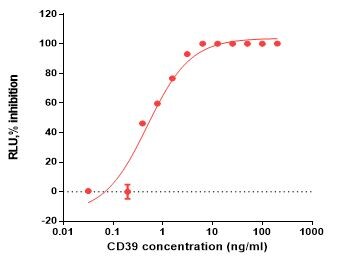

dose response in reporter cells
