Recombinant Human ENPP-1 Protein, CF

Catalog # Availability Size / Price Qty
6136-EN-010
Product Details
Citations (1)
FAQs
Reviews (1)

Recombinant Human ENPP-1 Protein, CF Summary

Product Specifications

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<1.0 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its ability to hydrolyze thymidine 5'-monophosphate p-nitrophenyl ester. The specific activity is >35,000 pmol/min/μg, as measured under the described conditions.
Source
Mouse myeloma cell line, NS0-derived human ENPP-1 protein

His ENPP-2
Asp49-Trp144
Accession # Q13822
ENPP-1
Val191-Leu591
  Accession # P22413
ENPP-2
Asn532-Ile863
Accession # Q13822
N-terminus C-terminus

N-terminal Sequence
Analysis
His
Predicted Molecular Mass
96 kDa
SDS-PAGE
100-135 kDa, reducing conditions

Product Datasheets

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

6136-EN

Formulation Supplied as a 0.2 μm filtered solution in Tris and NaCl.
Shipping The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 6 months from date of receipt, -20 to -70 °C as supplied.
  • 3 months, -20 to -70 °C under sterile conditions after opening.

Assay Procedure

Materials
  • Assay Buffer: 50 mM Tris, 250 mM NaCl, pH 9.5
  • Recombinant Human ENPP-1 (rhENPP-1) (Catalog # 6136-EN)
  • Substrate: Thymidine 5’-monophosphate p-nitrophenyl ester (Sigma, Catalog # T4510), 100 mM stock in deionized water
  • 96-well Clear Plate (Costar, Catalog # 92592)
  • Plate Reader (Model: SpectraMax Plus by Molecular Devices) or equivalent
  1. Dilute rhENPP-1 to 1 ng/µL in Assay Buffer.
  2. Dilute Substrate to 10 mM in Assay Buffer.
  3. Load into a plate 50 µL of 1 ng/µL rhENPP-1, and start the reaction by adding 50 µL of 10 mM Substrate. Include a Substrate Blank containing 50 µL of Assay Buffer and 50 µL of 10 mM Substrate.
  4. Read at 405 nm (absorbance) in kinetic mode for 5 minutes.
  5. Calculate specific activity:

     Specific Activity (pmol/min/µg) =

Adjusted Vmax* (OD/min) x Conversion Factor** (pmol/OD)
amount of enzyme (µg)

     *Adjusted for Substrate Blank
     **Derived using calibration standard 4-Nitrophenol (Sigma-Aldrich, Catalog # 241326).

Per Well:
  • rhENPP-1: 0.05 µg
  • Substrate: 5 mM
Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: ENPP-1

Ectonucleotide pyrophosphatase/phosphodiesterase 1 (ENPP-1) is a transmembrane glycoprotein that hydrolyzes nucleotides and nucleotide derivatives with the formation of nucleotide-5’-monophosphates. It is inserted into the plasma membrane by an N‑terminal transmembrane domain. Human ENPP-1 has a small N-terminal cytoplasmic domain and a large C-terminal region containing two somatomedin B-like domains, a catalytic domain and a nuclease-like domain in the extracellular space (1). Defects in the ENPP-1 gene cause arterial calcification and bone mineralization abnormalities (2). ENPP-1 polymorphism or overexpression is also associated with obesity, type II diabetes and insulin resistance, which makes modulation of ENPP-1 activity one of the targets to treat insulin resistance and related diseases (1). The recombinant hybrid enzyme recombinant human ENPP-1 consists of N-terminal somatomedin B-like domains of ENPP-2, the central catalytic phosphodiesterase domain of ENPP-1 and the C‑terminal nuclease-like domain of ENPP-2. It has been reported that this hybrid construct generates an enzyme that has higher levels of ENPP-1 activity than the wild type ENPP-1 and is specific for the ENPP-1 substrate (3).

References
  1. Goldfine, I.D. et al. (2010) Endocrine Reviews. 29:62.
  2. Hessle, L. et al. (2002) Proc. Natl. Acad. Sci. 99:9445.
  3. Anisoara, C. et al. (2004) Biochem. J. 381:71.
Long Name
Ectonucleotide Pyrophosphatase/Phosphodiesterase 1
Entrez Gene IDs
5167 (Human); 18605 (Mouse)
Alternate Names
ectonucleotide pyrophosphatase/phosphodiesterase 1; E-NPP 1; ENPP1; ENPP-1; Ly-41 Antigen; M6S1; M6S1NPP1; Membrane component chromosome 6 surface marker 1; membrane component, chromosome 6, surface marker 1; NPP1; NPPS; NPPSalkaline phosphodiesterase 1; PC1; PC-1; PCA1; PCA1ARHR2; PDNP1; PDNP1ectonucleotide pyrophosphatase/phosphodiesterase family member 1; Phosphodiesterase I/nucleotide pyrophosphatase 1; plasma-cell membrane glycoprotein 1; Plasma-cell membrane glycoprotein PC-1

Citation for Recombinant Human ENPP-1 Protein, CF

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citation: Showing 1 - 1

  1. Non-invasive imaging of tumors by monitoring autotaxin activity using an enzyme-activated near-infrared fluorogenic substrate.
    Authors: Madan, Damian, Ferguson, Colin G, Lee, Won Yong, Prestwich, Glenn D, Testa, Charles
    PLoS ONE, 2013;8(11):e79065.
    Species: N/A
    Sample Types: Complex Sample Type
    Applications: Bioassay

FAQs

No product specific FAQs exist for this product, however you may

View all Proteins and Enzyme FAQs

Reviews for Recombinant Human ENPP-1 Protein, CF

Average Rating: 5 (Based on 1 Review)

5 Star
100%
4 Star
0%
3 Star
0%
2 Star
0%
1 Star
0%

Have you used Recombinant Human ENPP-1 Protein, CF?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:


Recombinant Human ENPP-1 Protein, CF
By Anonymous on 12/06/2017

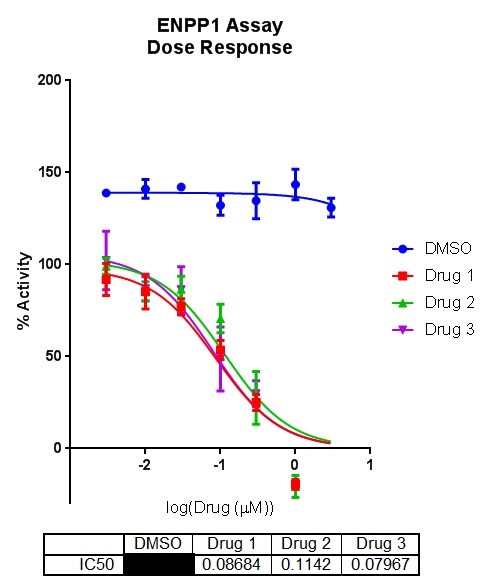

Application: Enzymatic activity in vitro
Reason for Rating: Worked beautifully in dose-response assay.
