Interleukin 23 (IL-23) is a heterodimeric cytokine composed of two disulfide-linked subunits, a p19 subunit that is unique to IL-23, and a p40 subunit that is shared with IL-12 (1 - 5). The functional IL-23 receptor complex consists of two receptor subunits, the IL-12 receptor beta 1 subunit (IL-12 R beta 1) and the IL-23-specific receptor subunit (IL-23 R) (3). Human IL-23 R cDNA encodes a 629 aa type I transmembrane protein with a 23 aa residue signal peptide, a 330 aa residue extracellular domain, a 23 aa residue transmembrane domain and a 253 aa residue cytoplasmic region. IL-23 R shares structural features with the IL-12 R beta 2, including an N-terminal Ig-like domain, two cytokine receptor domains and multiple glycosylation sites in the extracellular domain. IL-23 R lacks the three extracellular membrane-proximal fibronectin-type III domains present on IL-12 R beta 2. IL-23 R has a WQPWS sequence in the transmembrane-proximal cytokine receptor domain similar to the cytokine receptor signature WSXWS motif. The cytoplasmic region of IL-23 R has three potential Src homology 2 domain-binding sites and two potential Stat-binding sites. The gene for human IL-23 R is located on human chromosome 1 within 150 kb of IL-12 R beta 2. Human and mouse IL-23 R share 66% amino acid sequence identity. Based on quantitative real-time PCR, human IL-23 R mRNA is expressed in a human Th1 and Th0 clone as well as several NK cell lines and clones. Low but detectable levels of IL-23 R mRNA is also expressed in EBV-transformed B cells and activated PBMC. IL-23 initiates a signal transduction cascade similar to that of IL-12, and involves Jak2, Tyk2, Stat1, Stat3, Stat4, and Stat5. IL-23 has biological activities that are similar to, but distinct from IL-12.
Recombinant Human IL-23R His-tag Protein, CF
R&D Systems | Catalog # 11408-IR
Loading...
Key Product Details
- R&D Systems CHO-derived Recombinant Human IL-23R His-tag Protein (11408-IR)
- Quality control testing to verify active proteins with lot specific assays by in-house scientists
- All R&D Systems proteins are covered with a 100% guarantee
Source
CHO
Accession Number
Applications
Bioactivity
Loading...
Product Specifications
Source
Chinese Hamster Ovary cell line, CHO-derived human IL-23R protein
Gly24-Asp353, with a C-terminal 6-His tag
Gly24-Asp353, with a C-terminal 6-His tag
Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
N-terminal Sequence Analysis
Gly24
Predicted Molecular Mass
39 kDa
SDS-PAGE
66-74 kDa, under reducing conditions.
Activity
Measured by its binding ability in a functional ELISA.
Recombinant Human IL-23R His-tag binds to Recombinant Human IL-23 Protein (Catalog # 1290-IL) with a ED50 of 3.00-30.0 ng/mL.
Recombinant Human IL-23R His-tag binds to Recombinant Human IL-23 Protein (Catalog # 1290-IL) with a ED50 of 3.00-30.0 ng/mL.
Scientific Data Images for Recombinant Human IL-23R His-tag Protein, CF
Recombinant Human IL-23R His-tag Protein Binding Activity.
Measured by its binding ability in a functional ELISA. Recombinant Human IL-23R His-tag Protein (Catalog # 11408-IR) binds to Recombinant Human IL-23 Protein (1290-IL) with a ED50 of 3.00-30.0 ng/mL.Recombinant Human IL-23R His-tag Protein SDS-PAGE.

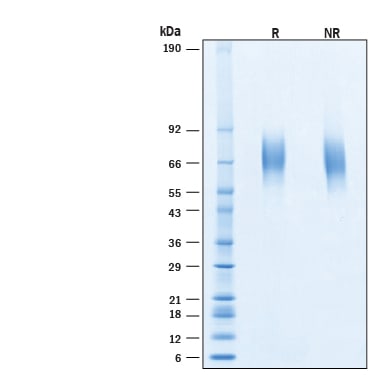

2 μg/lane of Recombinant Human IL-23R His-tag Protein (Catalog # 11408-IR) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 66-74 kDa, under reducing conditions.Formulation, Preparation, and Storage
11408-IR
| Formulation | Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. |
| Reconstitution | Reconstitute at 250 μg/mL in PBS. |
| Shipping | The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. |
| Stability & Storage | Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
|
Calculators
Background: IL-23R
References
- Oppmann, B. et al. (2000) Immunity 13:715.
- Lankford, C.S. and D.M. Frucht (2003) J. Leukoc. Biol. 73:49.
- Parham, C. et al. (2002) J. Immunol. 168:5448.
- Belladonna, M.L. et al. (2002) J. Immunol. 168:5448.
- Aggarwal, S. et al. (2003) J. Biol. Chem. 278:1910.
Long Name
Interleukin 23 Receptor
Alternate Names
IL-23 R, IL23R
Gene Symbol
IL23R
UniProt
