Recombinant Human Siglec-3/CD33 Fc Avi-Tag Protein, CF

R&D Systems | Catalog # AVI10467

R&D Systems
Loading...

Key Product Details

  • R&D Systems HEK293-derived Recombinant Human Siglec-3/CD33 Fc Avi-Tag Protein (AVI10467)
  • Quality control testing to verify active proteins with lot specific assays by in-house scientists
  • All R&D Systems proteins are covered with a 100% guarantee

Source

HEK293

Accession Number

Structure / Form

Disulfide-linked homodimer, Biotinylated via Avi-tag

Conjugate

Biotin

Applications

Bioactivity
Loading...

Product Specifications

Source

Human embryonic kidney cell, HEK293-derived human Siglec-3/CD33 protein
Human Siglec-3/CD33
(Met17-His259)
Accession # P20138.2
IEGRMD Human IgG1
(Pro100-Lys330)
Avi-tag
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Met17

Predicted Molecular Mass

15 kDa

SDS-PAGE

67-78 kDa, under reducing conditions

Activity

Measured by the ability of the immobilized protein to support the adhesion of human red blood cells. Kelm, S. et al. (1994) Current Biology 4:965.
The ED50 for this effect is 0.2-1.4 μg/mL.

Measured by its binding ability in a functional ELISA.
When Human Siglec-3/CD33 (6C5/2) Antibody  (Catalog # MAB1137) is immobilized at 0.5 µg/mL (100 µL/well), Biotinylated Recombinant Human Siglec-3/CD33 Fc Chimera (Catalog # AVI10467) binds with an ED50 of 0.15-1.2 ng/mL.

Scientific Data Images for Recombinant Human Siglec-3/CD33 Fc Avi-Tag Protein, CF

Recombinant Human Siglec-3/CD33 Fc Avi-Tag Protein Binding Activity

Recombinant Human Siglec-3/CD33 Fc Avi-Tag Protein Binding Activity

Biotinylated Recombinant Human Siglec-3/CD33 Fc Chimera Avi-tag (AVI10467) supports the adhesion of human red blood cells. The ED50 for this effect is 0.2-1.4 μg/mL.

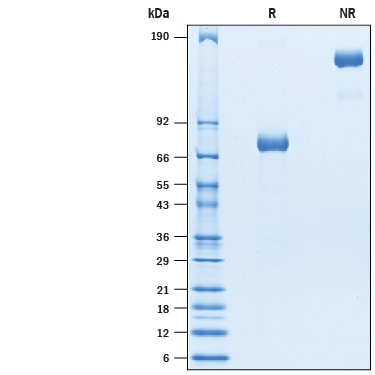

Recombinant Human Siglec-3/CD33 Fc Avi-Tag Protein SDS-PAGE

Recombinant Human Siglec-3/CD33 Fc Avi-Tag Protein SDS-PAGE

2 μg/lane of Biotinylated Recombinant Siglec-3/CD33 Fc Chimera Avi-tag (Catalog # AVI10467) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 67-78 kDa and 130-160 kDa, respectively.

Formulation, Preparation, and Storage

AVI10467
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: Siglec-3/CD33

Siglecs (sialic acid binding Ig-like lectins) are I-type (Ig-type) lectins belonging to the Ig superfamily. They are characterized by an N-terminal Ig-like V-type domain which mediates sialic acid binding, followed by varying numbers of Ig-like C2-type domains (1, 2). Eleven human Siglecs have been cloned and characterized. They are sialoadhesin/CD169/Siglec-1, CD22/Siglec-2, CD33/Siglec-3, Myelin-Associated Glycoprotein (MAG/Siglec-4a) and Siglecs 5 to 11 (1-3). To date, no Siglec has been shown to recognized any cell surface ligand other than sialic acids, suggesting that interactions with glycans containing this carbohydrate are important in mediating the biological functions of Siglecs. Siglecs 5 to 11 share a high degree of sequence similarity with CD33/Siglec-3 both in their extracellular and intracellular regions. They are collectively referred to as CD33-related Siglecs. One remarkable feature of the CD33-related Siglecs is their differential expression pattern within the hematopoietic system (1, 2). This fact, together with the presence of two conserved immunoreceptor tyrosine-based inhibition motifs (ITIMs) in their cytoplasma tails, suggests that CD33-related Siglecs are involved in the regulation of cellular activation within the immune system. Human Siglec-3 is alternatively known as myeloid cell surface antigen CD33 and GP67. Human Siglec-3 cDNA encodes a 364 amino acid (aa) polypeptide with a hydrophobic signal peptide, an N-terminal Ig-like V-type domain, one Ig-like C2-type domains, a transmembrane region and a cytoplasmic tail (1, 4). Siglec-3 expression is restricted to cells of myelomonocytic lineage (2). It binds sialic acid preferring alpha 2,3- linkage over alpha 2,6- linkage (5). Studies indicated that Siglec-3 recruits SHP-1 and SHP-2 to its ITIMs (6, 7). When co-crosslinking with Fc gamma R1, Siglec-3 inhibits tyrosine phosphorylation and calcium mobilization, suggesting Siglec-3 can mediate inhibitory signals (7). Our Avi-tag Biotinylated Siglec-3 features biotinylation at a single site contained within the Avi-tag, a unique 15 aa peptide. Protein orientation will be uniform when bound to streptavidin-coated surface due to the precise control of biotinylation and the rest of the protein is unchanged so there is no interference in the protein's bioactivity.

References

  1. Crocker, P.R. and A. Varki (2001) Trends Immunol. 22:337.
  2. Crocker, P.R. and A. Varki (2001) Immunology 103:137.
  3. Angata, T. et al. (2002) J. Biol. Chem. 277:24466.
  4. Simmons, D. and B. Seed (1988) J. Immunol. 141:2797.
  5. Freeman, S.D. et al. (1995) Blood 85:2002.
  6. Taylor, V.C. et al. (1999) J. Biol. Chem. 274:11505.
  7. Ulyanova, T. et al. (1999) Eur. J. Immunol. 29:3440.

Long Name

Sialic Acid Binding Ig-like Lectin 3

Alternate Names

CD33, gp67, Siglec3

Entrez Gene IDs

945 (Human); 12489 (Mouse); 102117580 (Cynomolgus Monkey)

Gene Symbol

CD33

UniProt

Additional Siglec-3/CD33 Products

Product Documents for Recombinant Human Siglec-3/CD33 Fc Avi-Tag Protein, CF

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Recombinant Human Siglec-3/CD33 Fc Avi-Tag Protein, CF

For research use only

Customer Reviews for Recombinant Human Siglec-3/CD33 Fc Avi-Tag Protein, CF

There are currently no reviews for this product. Be the first to review Recombinant Human Siglec-3/CD33 Fc Avi-Tag Protein, CF and earn rewards!

Have you used Recombinant Human Siglec-3/CD33 Fc Avi-Tag Protein, CF?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

FAQs

No product specific FAQs exist for this product.

View all FAQs for Proteins and Enzymes
