Siglecs (sialic acid binding Ig-like lectins) are I-type (Ig-type) lectins belonging to the Ig superfamily. They are characterized by an N-terminal Ig-like V-type domain which mediates sialic acid binding, followed by varying numbers of Ig-like C2-type domains (1, 2). Eleven human Siglecs have been cloned and characterized. They are sialoadhesin/CD169/Siglec-1, CD22/Siglec-2, CD33/Siglec-3, Myelin-Associated Glycoprotein (MAG/Siglec-4a) and Siglecs 5 to 11 (1-3). To date, no Siglec has been shown to recognized any cell surface ligand other than sialic acids, suggesting that interactions with glycans containing this carbohydrate are important in mediating the biological functions of Siglecs. Siglecs 5 to 11 share a high degree of sequence similarity with CD33/Siglec-3 both in their extracellular and intracellular regions. They are collectively referred to as CD33-related Siglecs. One remarkable feature of the CD33-related Siglecs is their differential expression pattern within the hematopoietic system (1, 2). This fact, together with the presence of two conserved immunoreceptor tyrosine-based inhibition motifs (ITIMs) in their cytoplasma tails, suggests that CD33-related Siglecs are involved in the regulation of cellular activation within the immune system. Human Siglec-3 is alternatively known as myeloid cell surface antigen CD33 and GP67. Human Siglec-3 cDNA encodes a 364 amino acid (aa) polypeptide with a hydrophobic signal peptide, an N-terminal Ig-like V-type domain, one Ig-like C2-type domains, a transmembrane region and a cytoplasmic tail (1, 4). Siglec-3 expression is restricted to cells of myelomonocytic lineage (2). It binds sialic acid preferring alpha 2,3- linkage over alpha 2,6- linkage (5). Studies indicated that Siglec-3 recruits SHP-1 and SHP-2 to its ITIMs (6, 7). When co-crosslinking with Fc gamma R1, Siglec-3 inhibits tyrosine phosphorylation and calcium mobilization, suggesting Siglec-3 can mediate inhibitory signals (7).
Recombinant Human Siglec-3/CD33 Protein, Atto 647N Conjugate
R&D Systems | Catalog # ATM1137
Fc Chimera
Loading...
Key Product Details
- R&D Systems NS0-derived Recombinant Human Siglec-3/CD33 Protein, Atto 647N Conjugate (ATM1137)
- Quality control testing to verify active proteins with lot specific assays by in-house scientists
- All R&D Systems proteins are covered with a 100% guarantee
Source
NS0
Accession Number
Structure / Form
Disulfide-linked homodimer, labeled with Atto 647N via amines
Excitation wavelength: 647 nm
Emission wavelength: 667 nm
Excitation wavelength: 647 nm
Emission wavelength: 667 nm
Conjugate
ATTO 647N (Excitation= 647 nm, Emission= 667 nm)
Applications
Bioactivity
Loading...
Learn more about FluorokinesTM Fluorescent-Labeled Proteins
Product Specifications
Source
Mouse myeloma cell line, NS0-derived human Siglec-3/CD33 protein
| Human Siglec-3/CD33 (Asp18-His259) Accession # AAA51948.1 |
DIEGRMD | Human IgG1 (Pro100-Lys330) |
| N-terminus | C-terminus |
Purity
>90%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<1.0 EU per 1 μg of the protein by the LAL method.
N-terminal Sequence Analysis
Asp18
Predicted Molecular Mass
53.4 kDa (monomer)
SDS-PAGE
67-80 kDa, under reducing conditions
Activity
Measured
by flow cytometry for its ability to bind anti-Human Siglec-3/CD33 Monoclonal
Antibody conjugated fluorescent beads.
Scientific Data Images for Recombinant Human Siglec-3/CD33 Protein, Atto 647N Conjugate
Detection of Human Siglec-3/CD33 Antibody with Recombinant Human Siglec-3/CD33 Fc Chimera Atto 647N Protein by Flow Cytometry.
Fluorescent beads conjugated to anti-Human Siglec‑3/CD33 Monoclonal Antibody (MAB1137) were stained with (A) Recombinant Human Siglec‑3/CD33 Fc Chimeram Atto 647N Conjugate (Catalog # ATM1137) or (B) unstained.Recombinant Human Siglec-3/CD33 Protein, Atto 647N Conjugate SDS-PAGE.

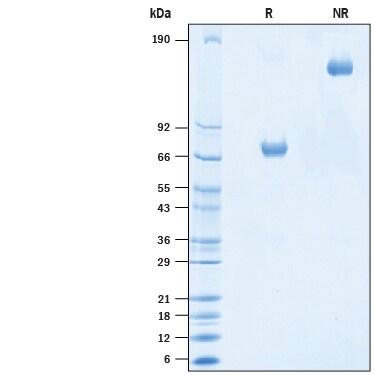

2 μg/lane of Recombinant Human Siglec-3/CD33 Protein, Atto 647N Conjugate (Catalog # ATM1137) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 67-80 kDa and 134-160 kDa, respectively.Formulation, Preparation, and Storage
ATM1137
| Formulation | Supplied as a 0.2 μm filtered solution in PBS with BSA as a carrier protein. |
| Shipping | The product is shipped with dry ice or equivalent. Upon receipt, store it immediately at the temperature recommended below. |
| Stability & Storage | Protect from light. Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
|
Background: Siglec-3/CD33
References
- Crocker, P.R. and A. Varki (2001) Trends Immunol. 22:337.
- Crocker, P.R. and A. Varki (2001) Immunology 103:137.
- Angata, T. et al. (2002) J. Biol. Chem. 277:24466.
- Simmons, D. and B. Seed (1988) J. Immunol. 141:2797.
- Freeman, S.D. et al. (1995) Blood 85:2002.
- Taylor, V.C. et al. (1999) J. Biol. Chem. 274:11505.
- Ulyanova, T. et al. (1999) Eur. J. Immunol. 29:3440.
