Recombinant Human Sonic Hedgehog/Shh (C24II) N-Term GMP, CF

Animal-Free
Catalog # Availability Size / Price Qty
1845-GMP-025
1845-GMP-100
1845-GMP-500
Recombinant Human Sonic Hedgehog/Shh (C24II) N-Term GMP, CF Bioactivity
3 Images
Product Details
FAQs
Reviews

Recombinant Human Sonic Hedgehog/Shh (C24II) N-Term GMP, CF Summary

Purity
>95%, by SDS-PAGE with silver staining, under reducing conditions.
Endotoxin Level
<0.01 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its ability to induce alkaline phosphatase production by C3H10T1/2 mouse embryonic fibroblast cells. Nakamura, T. et al. (1997) Biochem. Biophys. Res. Commun. 237:465. The ED50 for this effect is 0.1-0.4 µg/mL.
Source
E. coli-derived human Sonic Hedgehog/Shh protein
Cys24-Gly197 (Cys24Ile-Ile), with an N-terminal Met
Produced using non-animal reagents in an animal-free laboratory. Manufactured and tested under current Good Manufacturing Practice (GMP) guidelines.
Accession #
N-terminal Sequence
Analysis
Met-Ile-Ile-Gly25-Pro-Gly-Arg-Gly-Phe-Gly
Predicted Molecular Mass
20 kDa
SDS-PAGE
22 kDa, reducing conditions

Product Datasheets

1845-GMP

Formulation Lyophilized from a 0.2 μm filtered solution in PBS and NaCl.
Reconstitution Reconstitute at 100-200 μg/mL in PBS, and allow up to 24 hours at 2 to 8 °C for complete reconstitution.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • A minimum of 12 months when stored at ≤ -20 °C as supplied. Refer to lot specific COA for the Use by Date.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, ≤ -20 °C under sterile conditions after reconstitution.

Data Images

Bioactivity Recombinant Human Sonic Hedgehog/Shh (C24II) N-Term GMP, CF Bioactivity View Larger

GMP-grade Recombinant Human Sonic Hedgehog/Shh (C24II), N-Terminus (Catalog # 1845-GMP) induces alkaline phosphatase production by the C3H10T1/2 mouse embryonic fibroblast cell line. The ED50 for this effect is 0.1-0.4 μg/mL.

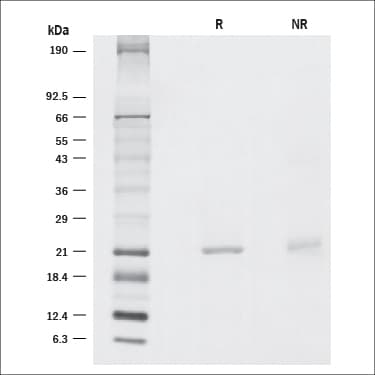

SDS-PAGE Recombinant Human Sonic Hedgehog/Shh (C24II) N-Term GMP, CF SDS-PAGE View Larger

1 μg/lane of GMP-grade Recombinant Human Sonic Hedgehog/Shh (C24II)
N-Term (Catalog # 1845-GMP) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by silver staining, showing R band at 21.5 kDa and NR band at 22.5 kDa, respectively.

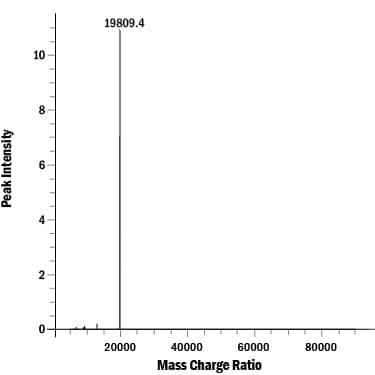

Mass Spectrometry Recombinant Human Sonic Hedgehog/Shh (C24II) N-Term GMP, CF Mass Spectrometry View Larger

LC/ESI-MS analysis of GMP-grade Recombinant Human Sonic Hedgehog/Shh (C24II) N-Terminus (Catalog # 1845-GMP). The major peak at 19809 corresponds to the calculated molecular mass, 19814 Da.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: Sonic Hedgehog/Shh

Sonic Hedgehog (Shh) is expressed in embryonic tissues that are critical for the patterning of the developing central nervous system, somite, and limb. It is also involved in whisker, hair, foregut, tooth, and bone development. Shh regulates neural and hematopoietic stem cell fate and is important for thymocyte differentiation and proliferation as well as T cell determination. In adult tissue Shh is associated with cancer development and tissue remodeling following injury (1-3). Human Shh encodes a 462 amino acid (aa) precursor protein that is autocatalytically processed to yield a non-glycosylated 19 kDa N-terminal fragment (Shh-N) and a glycosylated 25 kDa C-terminal protein (Shh-C) (4). Shh-C, which is responsible for the intramolecular processing of Shh, is rapidly degraded following Shh proteolysis (5). Shh-N is highly conserved, sharing >98% aa identity between mouse, human, rat, canine, porcine, and chicken Shh-N. Shh-N can be palmitoylated at its
N-terminal cysteine and modified by cholesterol addition at its C-terminus (6). These modifications contribute to the membrane tethering of Shh as well as its assembly into various sized multimers (6-9). Lipid modification and multimerization greatly increase Shh-N receptor binding affinity and signaling potency (5, 6, 8, 9). Monomeric and multimeric Shh can be released from the plasma membrane by the cooperative action of DISP1, SCUBE2, and TACE/ADAM17 (10-12). Modifications also extend the effective range of Shh functionality and are required for the development of protein gradients important in tissue morphogenesis (9, 13). Canonical signaling of Shh is mediated by a multicomponent receptor complex that includes Patched (PTCH1, PTCH2) and Smoothened (SMO) (14). The binding of Shh to PTCH releases the basal repression of SMO by PTCH. Shh activity can also be regulated through interactions with heparin, glypicans, and membrane-associated Hip (hedgehog interacting protein) (13, 15, 16).

References
  1. Briscoe, J. and P.P. Therond (2013) Mol. Cell. Biol. 14:416.
  2. Aviles, E.C. et al. (2013) Front. Cell. Neurosci. 7:86.
  3. Xie, J. et al. (2013) OncoTargets Ther. 6:1425.
  4. Marigo, V. et al. (1995) Genomics 28:44.
  5. Zeng, X. et al. (2001) Nature 411:716.
  6. Feng, J. et al. (2004) Development 131:4357.
  7. Goetz, J.A. et al. (2006) J. Biol. Chem. 281:4087.
  8. Pepinsky, R.B. et al. (1998) J. Biol. Chem. 273:14037.
  9. Chen, M.-H. et al. (2004) Genes Dev. 18:641.
  10. Etheridge, L.A. et al. (2010) Development 137:133.
  11. Jakobs, P. et al. (2014) J. Cell Sci. 127:1726.
  12. Dierker, T. et al. (2009) J. Biol. Chem. 284:8013.
  13. Lewis, P.M. et al. (2001) Cell 105:599.
  14. Carpenter, D. et al. (1998) Proc. Natl. Acad. Sci. USA 95:13630.
  15. Filmus, J. and M. Capurro (2014) Matrix Biol. 35:248.
  16. Chuang, P.-T. and A.P. McMahon (1999) Nature 397:617.
Entrez Gene IDs
6469 (Human); 20423 (Mouse)
Alternate Names
HHG1; HHG-1; HLP3; HPE3; MCOPCB5sonic hedgehog (Drosophila) homolog; Shh; SMMCIsonic hedgehog homolog (Drosophila); sonic hedgehog homolog; sonic hedgehog protein; Sonic Hedgehog; TPT; TPTPS

Manufacturing Specifications

GMP Proteins
R&D Systems, a Bio-Techne Brand's GMP proteins are produced according to relevant sections of the following documents: WHO TRS, No. 822, 1992 Annex 1, Good Manufacturing Practices for Biological Products; USP Chapter 1043, Ancillary Materials for Cell, Gene and Tissue-Engineered Products and USP Chapter 92, Growth Factors and Cytokines Used in Cell Therapy Manufacturing.


R&D Systems' quality focus includes:

  • Manufactured and tested under an ISO 9001:2015 and ISO 13485:2016 certified quality system
  • Documented processes and QA control of documentation and process changes
  • Personnel training programs
  • Raw material testing and vendor qualification/monitoring
  • Fully validated equipment, processes and test methods
  • Equipment calibration schedules using a computerized calibration program
  • Facility maintenance, safety programs and pest control
  • Material review process for variances
  • Monitoring of stability over product shelf-life


R&D Systems strives to provide our customers with the analytical characteristics of each product so that customers may determine whether our products are appropriate for their research. The Certificate of Analysis provided contains the following lot specific information:

  • N-terminal amino acid analysis, SDS-PAGE analysis, and endotoxin level (as determined by LAL assay) performed on each bulk QC lot, not on individual bottlings of each QC lot
  • Post-bottling lot-specific bioassay results (compliance with an established range) and results of microbial bioburden testing (using broth culture, Sabourand's dextrose and blood agar plates with results reported at 3 days and at 7 days)
  • Host Cell Protein testing performed by ELISA
  • Mycoplasma testing by ribosomal RNA hybridization assay


Additional testing and documentation requested by the customer can be arranged at an additional cost. Testing may include, but is not limited to, USP< 61> bioburden testing, positive identity testing, testing for adventitious agents and testing for residual host cell content.

Production records and facilities are available for examination by appropriate personnel on-site at R&D Systems in Minneapolis, Minnesota USA.

R&D Systems sells GMP grade products for preclinical or clinical ex vivo use. They are not for in vivo use. Please read the following End User Terms prior to using this product.


Animal-Free Manufacturing Conditions
Our dedicated controlled-access animal-free laboratories ensure that at no point in production are the products exposed to potential contamination by animal components or byproducts. Every stage of manufacturing is conducted in compliance with R&D Systems' stringent Standard Operating Procedures (SOPs). Production and purification procedures use equipment and media that are confirmed animal-free.

Production

  • All molecular biology procedures use animal-free media and dedicated labware.
  • Dedicated fermentors are utilized in committed animal-free areas.

Purification

  • Protein purification columns are animal-free.
  • Bulk proteins are filtered using animal-free filters.
  • Purified proteins are stored in animal-free containers in a dedicated cold storage room.

Quality Assurance

  • Low Endotoxin Level.
  • No impairment of biological activity.
  • High quality product obtained under stringent conditions.
Please read our complete Animal-Free Statement.
