Recombinant Human TIM-3 Fc Chimera Protein, CF

R&D Systems | Catalog # 2365-TM

R&D Systems
100% Guarantee

Key Product Details

  • R&D Systems NS0-derived Recombinant Human TIM-3 Fc Chimera Protein (2365-TM)
  • Quality control testing to verify active proteins with lot specific assays by in-house scientists
  • All R&D Systems proteins are covered with a 100% guarantee

Source

NS0

Accession Number

Q8TDQ0

Structure / Form

Disulfide-linked homodimer

Applications

Binding Activity
View all TIM-3 Proteins and Enzymes »

Product Specifications

Source

Mouse myeloma cell line, NS0-derived human TIM-3 protein
Human TIM-3
(Ser22-Arg200)
Accession # Q8TDQ0		 IEGRMD Human IgG1
(Pro100-Lys330)
N-terminus C-terminus

Purity

>90%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Ser22

Predicted Molecular Mass

46.4 kDa (monomer)

SDS-PAGE

66 kDa, reducing conditions

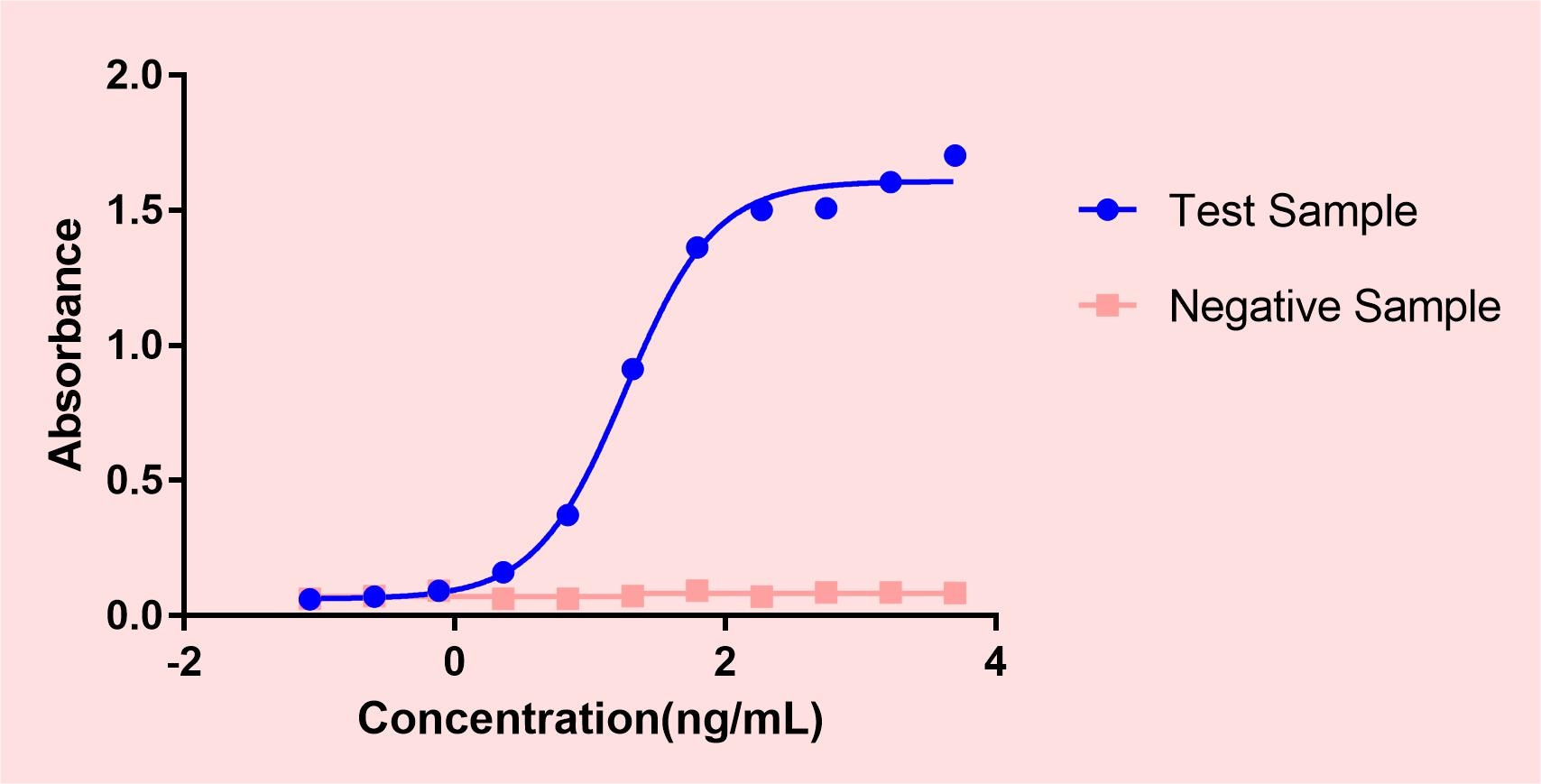

Activity

Measured by its binding ability in a functional ELISA.
Immobilized Recombinant Human Galectin‑9 (Catalog # 2045-GA) at 500 ng/mL can bind Recombinant Human TIM-3 Fc Chimera with an apparent Kd <30 nM.

Reviewed Applications

Read 4 reviews rated 4.8 using 2365-TM in the following applications:

Formulation, Preparation, and Storage

2365-TM
Formulation Lyophilized from a 0.2 μm filtered solution in PBS.
Reconstitution

Reconstitute at 100 μg/mL in sterile PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: TIM-3

TIM-3 (T cell immunoglobulin and mucin domain-3), also known as HAVCR2, is a 60 kDa member of the TIM family of immune regulating molecules. TIMs are type I transmembrane glycoproteins with one Ig-like V-type domain and a Ser/Thr-rich mucin stalk region (1, 2). Mature human TIM-3 consists of a 181 amino acid (aa) extracellular domain (ECD), a 21 aa transmembrane segment, and a 78 aa cytoplasmic tail (3). An alternatively spliced isoform is truncated within the mucin-like stalk. Within the ECD, human TIM-3 shares 58% aa sequence identity with mouse and rat TIM-3. TIM-3 is up‑regulated on several populations of activated myeloid cells (macrophage, monocyte, dendritic cell, microglia, mast cell) and T cells (Th1, CD8+, NK, Treg) (3-10). Its binding to Galectin-9 induces a range of immunosuppressive functions which enhance immune tolerance and inhibit anti-tumor immunity (11). TIM-3 ligation attenuates CD8+ and Th1 cell responses (11-13) and promotes the activity of Treg and myeloid derived suppressor cells (8, 11, 13, 14). In addition, dendritic cell-expressed TIM-3 dampens inflammation by enabling the phagocytosis of apoptotic cells and the cross-presentation of apoptotic cell antigens (4). It also binds the alarmin HMGB1, thereby preventing the activation of TLRs in response to released tumor cell DNA (7). TIM-3 interactions with Galectin-9 can alternatively trigger immune stimulatory effects, such as the coactivation of NK cell cytotoxicity (10).

References

  1. Sakuishi, K. et al. (2011) Trends Immunol. 32:345.
  2. Anderson, A.C. (2012) Curr. Opin. Immunol. 24:213.
  3. Monney, L. et al. (2002) Nature 415:536.
  4. Nakayama, M. et al. (2009) Blood 113:3821.
  5. Anderson, A.C. et al. (2007) Science 318:1141.
  6. Wiener, Z. et al. (2007) J. Invest. Dermatol. 127:906.
  7. Chiba, S. et al. (2012) Nat. Immunol. 13:832.
  8. Sanchez-Fueyo, A. et al. (2003) Nat. Immunol. 4:1093.
  9. Ndhlovu, L.C. et al. (2012) Blood 119:3734.
  10. Gleason, M.K. et al. (2012) Blood 119:3064.
  11. Zhu, C. et al. (2005) Nat. Immunol. 6:1245.
  12. Sakhdari, A. et al. (2012) PLoS ONE 7:e40146.
  13. Sabatos, C.A. et al. (2003) Nat. Immunol. 4:1102.
  14. Dardalhon, V. et al. (2010) J. Immunol. 185:1383.

Long Name

T Cell Immunoglobulin Mucin-3

Alternate Names

CD366, HAVcr-2, HAVCR2, KIM-3, SPTCL, TIM3, TIMD3

Entrez Gene IDs

84868 (Human); 171285 (Mouse); 363578 (Rat); 479318 (Canine); 102141722 (Cynomolgus Monkey)

Gene Symbol

HAVCR2

UniProt

Q8TDQ0

Additional TIM-3 Products

Product Documents for Recombinant Human TIM-3 Fc Chimera Protein, CF

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for Recombinant Human TIM-3 Fc Chimera Protein, CF

For research use only

Citations for Recombinant Human TIM-3 Fc Chimera Protein, CF

Customer Reviews for Recombinant Human TIM-3 Fc Chimera Protein, CF (4)

4.8 out of 5
4 Customer Ratings
5 Stars
75%
4 Stars
25%
3 Stars
0%
2 Stars
0%
1 Stars
0%

Have you used Recombinant Human TIM-3 Fc Chimera Protein, CF?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images

Showing  1 - 4 of 4 reviews Showing All
Filter By:
Clear Filters X
  • Recombinant Human TIM-3 Fc Chimera Protein, CF
    Name: Anonymous
    Application: Binding assay/Protein-protein interaction
    Verified Customer | Posted 11/13/2019
  • Recombinant Human TIM-3 Fc Chimera Protein, CF
    Name: Anonymous
    Application: Binding assay/Protein-protein interaction
    Verified Customer | Posted 08/22/2018
    Recombinant Human TIM-3 Fc Chimera Protein, CF 2365-TM
  • Recombinant Human TIM-3 Fc Chimera Protein, CF
    Name: Anonymous
    Application: Binding assay/Protein-protein interaction
    Verified Customer | Posted 08/10/2018
    Recombinant Human TIM-3 Fc Chimera Protein, CF 2365-TM
  • Recombinant Human TIM-3 Fc Chimera Protein, CF
    Name: Shelley Anderson
    Application: Apoptosis assay
    Verified Customer | Posted 10/20/2017

There are no reviews that match your criteria.

Showing  1 - 4 of 4 reviews Showing All

FAQs

No product specific FAQs exist for this product.

View all FAQs for Proteins and Enzymes
