Recombinant Human u-Plasminogen Activator/Urokinase Avi, CF

R&D Systems | Catalog # AVI1310

His-tag Avi-tag
R&D Systems
100% Guarantee

Key Product Details

  • R&D Systems HEK293-derived Recombinant Human u-Plasminogen Activator/Urokinase Avi (AVI1310)
  • Quality control testing to verify active proteins with lot specific assays by in-house scientists
  • All R&D Systems proteins are covered with a 100% guarantee

Source

HEK293

Accession Number

P00749.2

Conjugate

Biotin

Applications

Binding Activity, Enzyme Activity
View all u-Plasminogen Activator (uPA)/Urokinase Proteins and Enzymes »

Product Specifications

Source

Human embryonic kidney cell, HEK293-derived human u-Plasminogen Activator (uPA)/Urokinase protein
Met1-Leu431 with C-terminal 6-His and Avi-tag

Purity

>90%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Lys156 & Phe177

Predicted Molecular Mass

18 kDa (long A chain), 3 kDa (short A chain), 31 kDa (B chain)

SDS-PAGE

19-20 kDa & 32-38 kDa, under reducing conditions.

Activity

Measured by its ability to cleave a peptide substrate, N-carbobenzyloxy-Gly-Gly-Arg-7-amido-4-methylcoumarin (Z-GGR-AMC).
The specific activity is >2000 pmol/min/μg, as measured under the described conditions.

Measured by its binding ability in a functional ELISA.
Biotinylated Recombinant Human u-Plasminogen Activator (uPA)/Urokinase His-tag Avi-tag (Catalog # AVI1310) binds to Human u-Plasminogen Activator (uPA) Antibody (Catalog # MAB1310) with an ED50 of 0.300-4.50 ng/mL.

Scientific Data Images for Recombinant Human u-Plasminogen Activator/Urokinase Avi, CF

Biotinylated Recombinant Human u‑Plasminogen Activator (uPA)/Urokinase His-tag Avi-tag Protein Enzyme Activity.

Recombinant Human u-Plasminogen Activator (uPA)/Urokinase His-tag Avi-tag (Catalog # AVI1310) is measured by its ability to cleave a peptide substrate, N-carbobenzyloxy-Gly-Gly-Arg-7-amido-4-methylcoumarin (Z-GGR-AMC).

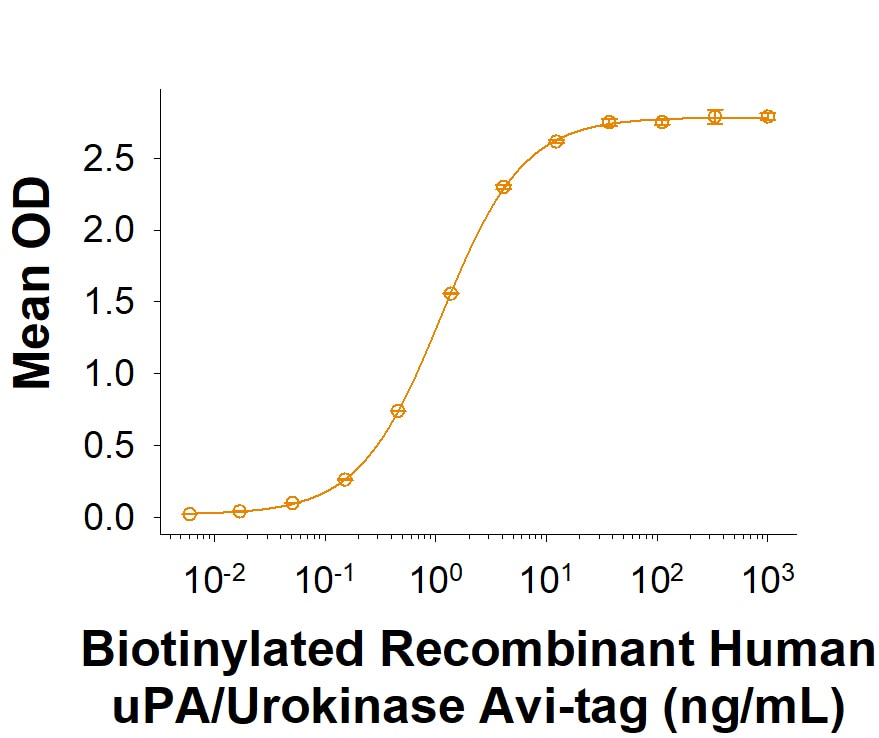

Biotinylated Recombinant Human u‑Plasminogen Activator (uPA)/Urokinase His-tag Avi-tag Protein Binding Activity.

In a functional ELISA, Biotinylated Recombinant Human u-Plasminogen Activator (uPA)/Urokinase His-tag Avi-tag Protein (Catalog # AVI1310) binds to Human u-Plasminogen Activator (uPA) Antibody (MAB1310) with an ED50 of 0.300-4.50 ng/mL

Formulation, Preparation, and Storage

AVI1310
Formulation Supplied as a 0.2 μm filtered solution in HEPES, NaCl and CaCl2.
Shipping The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 6 months from date of receipt, -20 to -70 °C as supplied.
  • 3 months, -20 to -70 °C under sterile conditions after opening.

Background: u-Plasminogen Activator (uPA)/Urokinase

Urokinase Plasminogen Activator (uPA), also known as u-plasminogen activator or urokinase, is a highly-specific serine protease from the peptidase S1 family that cleaves plasminogen to form plasmin making it a key player in the plasminogen activator (PA) system (1, 2). In cancer, the PA system plays a commanding role in tumor growth, angiogenesis, tumor cell invasion, migration, and metastasis. Expression of uPA is minimal in normal cells but is increased several fold in tumor cells by extracellular stimuli elevated in cancer (3) and corresponds to poor outcomes in several types of cancer (2, 4-7). Therefore, uPA has been identified as an excellent target for therapeutic development through inhibition of protease activity or though inhibition of uPA-dependent signaling while in complex with uPA receptor (uPAR) (2, 7). The pro-enzyme of uPA is synthesized with a N-terminal signal peptide and processed into an active disulfide-linked two-chain molecule (2, 7-10). For human uPA, the B chain starting at Ile179 corresponds to the catalytic domain. Two forms of the A chain exist, one starting at Ser21 (the long form) and the other at Lys156 (the short form). While the B chain is common for both forms, the long and short A chains are unique to expected 49 kDa and 34 kDa two-chain forms, respectively. The long A chain contains an EGF-like domain and the kringle domain. The long A domain is reportedly responsible for the binding of the uPA receptor (uPAR) (2,7).

References

  1. Ellis, V. (2004) in Handbook of Proteolytic Enzymes. Barrett, A.J. et. al. eds., Academic Press, San Diego, pp.1677.
  2. Mahmood, N. et. al. (2018) Front Oncol. 8:24.
  3. Nagamine, Y. et. al. (2005) Thromb. Haemost. 93:661.
  4. Duffy, M. and C. Duggan. (2004) Clin. Biochem. 37:541.
  5. Pappot, H. et. al. (2006) Lung Cancer 51:193.
  6. Taubert, H. et. al. (2010) Br. J. Cancer 102:731.
  7. Masucci, M.T. et. al. (2022) Cancers. 14:498.
  8. Riccio, A. et. al. (1985) Nucleic Acids Res. 13:2759.
  9. Nagai, M. et. al. (1985) Gene 36:183.
  10. Jacobs, P. et. al. (1985) DNA 4:139.

Long Name

Urokinase-type Plasminogen Activator

Alternate Names

PLAU, uPA, uPlasminogen Activator, Urokinase

Entrez Gene IDs

5328 (Human); 18792 (Mouse); 102135886 (Cynomolgus Monkey)

Gene Symbol

PLAU

UniProt

P00749.2

Additional u-Plasminogen Activator (uPA)/Urokinase Products

Product Documents for Recombinant Human u-Plasminogen Activator/Urokinase Avi, CF

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Recombinant Human u-Plasminogen Activator/Urokinase Avi, CF

For research use only

Customer Reviews for Recombinant Human u-Plasminogen Activator/Urokinase Avi, CF

There are currently no reviews for this product. Be the first to review Recombinant Human u-Plasminogen Activator/Urokinase Avi, CF and earn rewards!

Have you used Recombinant Human u-Plasminogen Activator/Urokinase Avi, CF?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Protocols

View specific protocols for Recombinant Human u-Plasminogen Activator/Urokinase Avi, CF (AVI1310):

Materials
  • Assay Buffer: 50 mM Tris, 0.01% (v/v) Tween® 20, pH 8.5
  • Biotinylated Recombinant Human u-Plasminogen Activator/Urokinase His-tag Avi-tag (rhuPA) (Catalog # AVI1310)
  • Substrate: Z-GGR-AMC, 10 mM stock in DMSO
  • Black 96-Well Plate
  • Plate Reader with Fluorescence Read Capability
  1. Dilute rhuPA to 0.5 µg/mL in Assay Buffer.
  2. Dilute Substrate to 400 µM in Assay Buffer.
  3. Load 50 µL of the 0.5 µg/mL rhuPA into a black well plate and start the reaction by adding 50 µL of 400 µM Substrate. Include a Substrate Blank containing 50 µL Assay Buffer and 50 µL of 400 µM Substrate.
  4. Read at excitation and emission wavelengths of 380 nm and 460 nm (top read), respectively, in kinetic mode for 5 minutes.
  5. Calculate specific activity:

     Specific Activity (pmol/min/µg) =

Adjusted Vmax* (RFU/min) x Conversion Factor** (pmol/RFU)
amount of enzyme (µg)



*Adjusted for Substrate Blank
**Derived using calibration standard 7-amino, 4-Methyl Coumarin (AMC)
Per Well:
  • rhuPA His Avi: 0.025 µg
  • Substrate: 200 µM
