Recombinant Mouse GITR/TNFRSF18 Fc Chimera Protein, CF

Catalog # Availability Size / Price Qty
R&D Systems Recombinant Proteins and Enzymes
1 Image
Product Details
Supplemental Products
Reviews (2)

Recombinant Mouse GITR/TNFRSF18 Fc Chimera Protein, CF Summary

Product Specifications

>95%, by SDS-PAGE under reducing conditions and visualized by silver stain.
Endotoxin Level
<1.0 EU per 1 μg of the protein by the LAL method.
Measured by its binding ability in a functional ELISA. Immobilized rmGITR/Fc Chimera at 2 µg/mL (100 µL/well) can bind rmGITR Ligand with a linear range of 0.8-50 ng/mL.
Mouse myeloma cell line, NS0-derived mouse GITR/TNFRSF18 protein
Mouse GITR
Accession # Q8C4K3
6-His tag
N-terminus C-terminus
Accession #
N-terminal Sequence
Structure / Form
Disulfide-linked homodimer
Predicted Molecular Mass
42 kDa (monomer)
55-65 kDa, reducing conditions

Product Datasheets

You must select a language.



Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.


Formulation Lyophilized from a 0.2 μm filtered solution in PBS.
Reconstitution Reconstitute at 100 μg/mL in sterile PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.
Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Background: GITR/TNFRSF18

GITR (glucocorticoid-induced tumor necrosis factor receptor), also known as AITR and TNFRSF18, is a 40 kDa transmembrane glycoprotein that functions in immune regulation (1, 2). Mature mouse GITR consists of a 134 amino acid (aa) extracellular domain (ECD) with three tandem TNFR cysteine-rich repeats, a 21 aa transmembrane segment, and a 55 aa cytoplasmic domain (3). Within the ECD, mouse GITR shares 55% and 86% aa sequence identity with human and rat GITR, respectively. Alternative splicing generates additional isoforms with substituted cytoplasmic domains or with a substitution within the third TNFR repeat, transmembrane, and cytoplasmic regions (4). GITR is expressed on CD4+CD25+ regulatory T cells (Treg) as well as on subsets of thymocytes, lymph node cells, and splenocytes (3, 5, 6), and it is upregulated on antigen-activated conventional CD4+ and CD8+ T cells (3, 6-8). GITR binding by GITR Ligand/TNFSF18 costimulates the proliferation and activation of CD4+ or CD8+ conventional T cells (7-10). It also induces the proliferation of Treg (9, 11) but inhibits the ability of Treg to suppress immune responses (5, 9, 12-14). This can result in the development of autoimmunity, increased tumor cell killing by effector T cells (5, 12), and increased inflammation in arthritis, allergic asthma, and inflammatory bowel disease (11, 15). GITR is also expressed on sympathetic neurons where it enhances NGF-induced neurite outgrowth and branching (16).

  1. Clouthier, D.L. and T.H. Watts (2014) Cytokine Growth Factor Rev. 25:91.
  2. Ronchetti, S. et al. (2015) J. Immunol. Res. 2015:171520.
  3. Nocentini, G. et al. (1997) Proc. Natl. Acad. Sci. USA 94:6216.
  4. Nocentini, G. et al. (2000) Cell Death Differ. 7:408.
  5. Shimizu, J. et al. (2002) Nat. Immunol. 3:135.
  6. Kwon, B. et al. (1999) J. Biol. Chem. 274:6056.
  7. Gurney, A.L. et al. (1999) Curr. Biol. 9:215.
  8. Muriglan, S.J. et al. (2004) J. Exp. Med. 200:149.
  9. Ronchetti, S. et al. (2004) Eur. J. Immunol. 34:613.
  10. Tone, M. et al. (2003) Proc. Natl. Acad. Sci. USA 100:15059.
  11. Ephrem, A. et al. (2013) Eur. J. Immunol. 43:2421.
  12. Ko, K. et al. (2005) J. Exp. Med. 202:885.
  13. Ji, H. et al. (2004) J. Immunol. 172:5823.
  14. Stephens, G.L. et al. (2004) J. Immunol. 173:5008.
  15. Patel, M. et al. (2005) Eur. J. Immunol. 35:3581.
  16. O'Keeffe, G.W. et al. (2008) Nat. Neurosci. 11:135.
Long Name
Glucocorticoid Induced TNF Receptor Family Related Gene
Entrez Gene IDs
8784 (Human); 21936 (Mouse); 500598 (Rat); 102146362 (Cynomolgus Monkey)
Alternate Names
Activation-inducible TNFR family receptor; AITR; AITRTNF receptor superfamily activation-inducible protein; CD357 antigen; CD357; GITR; GITR-D; GITRtumor necrosis factor receptor superfamily member 18; Glucocorticoid-induced TNFR-related protein; TNFRSF18; tumor necrosis factor receptor superfamily, member 18


No product specific FAQs exist for this product, however you may

View all Proteins and Enzyme FAQs

Reconstitution Buffers

Reviews for Recombinant Mouse GITR/TNFRSF18 Fc Chimera Protein, CF

Average Rating: 4.5 (Based on 2 Reviews)

5 Star
4 Star
3 Star
2 Star
1 Star

Have you used Recombinant Mouse GITR/TNFRSF18 Fc Chimera Protein, CF?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

Recombinant Mouse GITR/TNFRSF18 Fc Chimera Protein, CF
By Anonymous on 06/09/2019
Application: Binding assay/Protein-protein interaction

Recombinant Mouse GITR/TNFRSF18 Fc Chimera Protein, CF
By Anonymous on 01/31/2019
Application: Binding assay/Protein-protein interaction

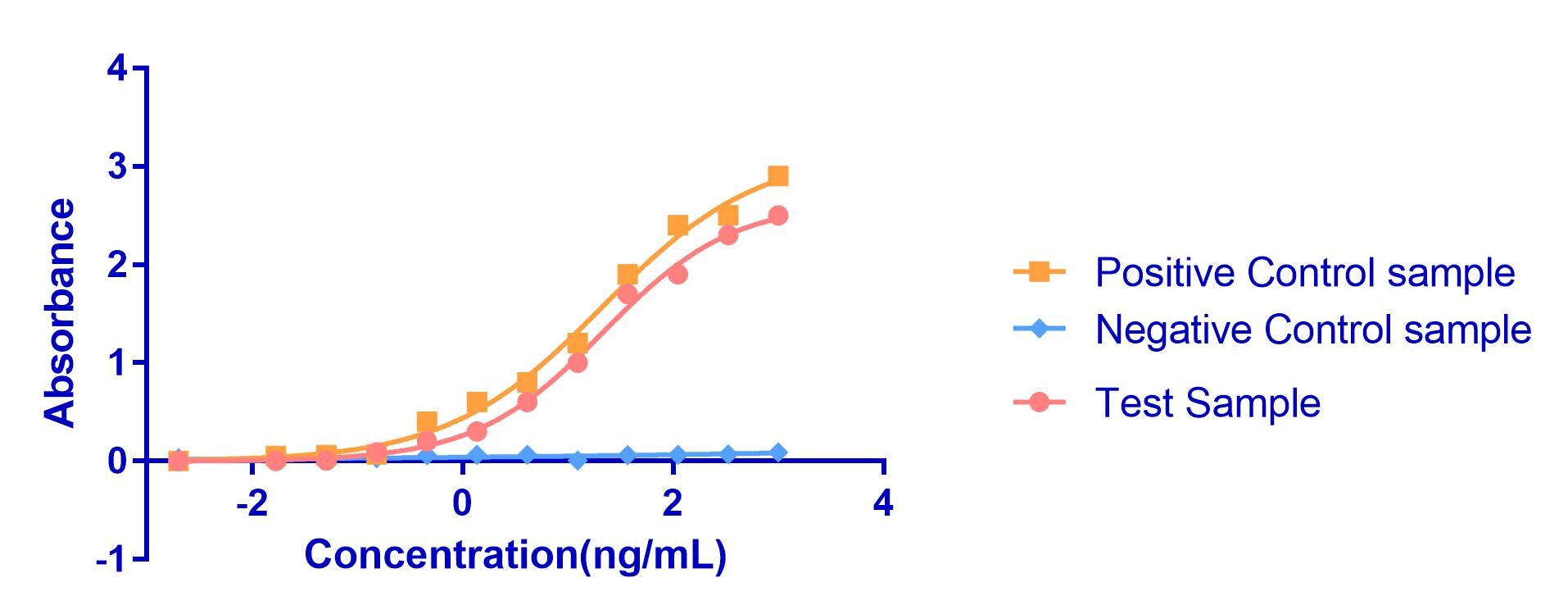

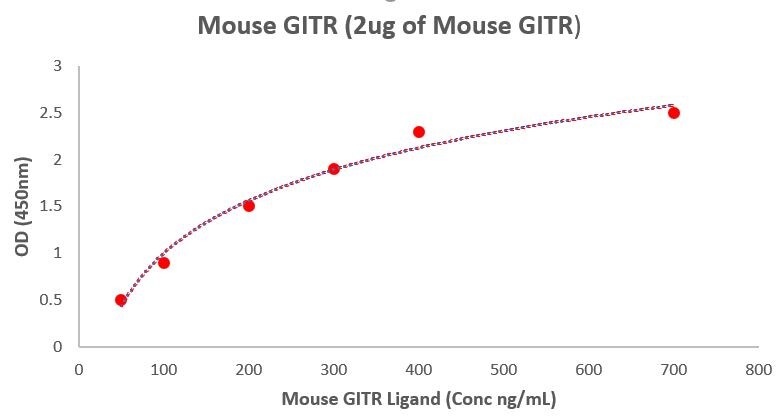

Measured by functional ELISA. Recombinant mouse GITR/TNFRSF18 at 2 µg/ml binds mouse TNFSF18 in a dose-dependent manner.
