Recombinant Porcine PD-L1/B7-H1 His-tag Protein, CF

R&D Systems | Catalog # 10361-B7

R&D Systems
100% Guarantee

Key Product Details

  • R&D Systems CHO-derived Recombinant Porcine PD-L1/B7-H1 His-tag Protein (10361-B7)
  • Quality control testing to verify active proteins with lot specific assays by in-house scientists
  • All R&D Systems proteins are covered with a 100% guarantee

Source

CHO

Accession Number

NP_001020392.1

Applications

Bioactivity
View all PD-L1/B7-H1 Proteins and Enzymes »

Product Specifications

Source

Chinese Hamster Ovary cell line, CHO-derived porcine PD-L1/B7-H1 protein
Phe19-Thr237, with a C-terminal 6-His tag.

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Phe19

Predicted Molecular Mass

26 kDa

SDS-PAGE

35-55 kDa, under reducing conditions

Activity

Measured by its binding ability in a functional ELISA.
When Recombinant Porcine PD-L1/B7-H1 His-tag (Catalog # 10361-B7) is immobilized at 1 μg/mL (100 µL/well), the concentration of Recombinant Human PD-1 Fc Chimera (Catalog # 1086-PD) that produces 50% of the optimal binding response is found to be approximately 0.5-3.0 µg/mL.

Scientific Data Images for Recombinant Porcine PD-L1/B7-H1 His-tag Protein, CF

Recombinant Porcine PD-L1/B7-H1 His-tag Protein Binding Activity

Recombinant Porcine PD-L1/B7-H1 His-tag Protein Binding Activity

When Recombinant Porcine PD-L1/B7-H1 His-tag Protein (Catalog # 10361-B7) is immobilized at 1 µg/mL (100 µL/well), the concentration of Recombinant Human PD-1 Fc Chimera (Catalog # 1086-PD) that produces 50% of the optimal binding response is found to be approximately 0.5-3.0 µg/mL.

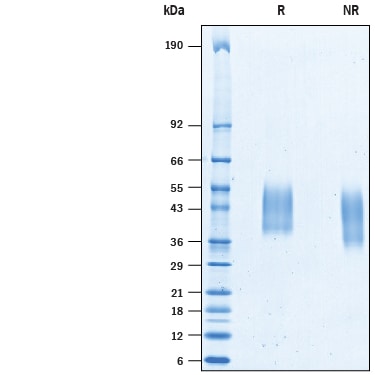

Recombinant Porcine PD-L1/B7-H1 His-tag Protein SDS-PAGE

Recombinant Porcine PD-L1/B7-H1 His-tag Protein SDS-PAGE

2 μg/lane of Recombinant Porcine PD-L1/B7-H1 His-tag (Catalog # 10361-B7) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 35-55 kDa.

Formulation, Preparation, and Storage

10361-B7
Formulation Lyophilized from a 0.2 μm filtered solution in PBS.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: PD-L1/B7-H1

Programmed cell death 1 ligand 1 (PD-L1), also known as B7-H1 and CD274, is a transmembrane glycoprotein and a member of the B7 family of immune regulatory molecules within the immunoglobulin (Ig) superfamily (1). Mature porcine PD-L1 consists of an extracellular domain (ECD) with both an Ig-V and Ig-C-like motif, a single transmembrane domain, and a short cytoplasmic tail lacking a canonical signaling motif (1). The mature ECD of porcine PD-L1 shares 74% and 67% amino acid sequence identity with human and mouse B7-H1, respectively. Alternative splicing of PD-L1 generates additional isoforms that either lack the first Ig-like domain or are truncated within the second Ig-like domain (2). B7-H1 is expressed on inflammatory-activated immune cells including macrophages, T cells, and B cells, keratinocytes, endothelial and intestinal epithelial cells, as well as a variety of carcinomas and melanoma (3-9). B7-H1 binds to T cell B7-1/CD80 and PD-1 (7-9). It suppresses T cell activation and proliferation and induces the apoptosis of activated T cells (6, 10). It plays a role in the development of immune tolerance by promoting T cell anergy and enhancing regulatory T cell development (9). B7-H1 favors the development of anti-inflammatory IL-10 and IL-22 producing dendritic cells and inhibits the development of Th17 cells (5, 10). In cancer, B7-H1 provides resistance to T cell mediated lysis, enhances EMT, and enhances the tumorigenic function of Th22 cells (3-4, 7, 9).

References

  1. Sun, C. et al. (2018) Immunity. 48:434.
  2. Frigola, X. et al. (2011) Clin. Cancer Res. 17:1915.
  3. Kuang, D.-M. et al. (2014) J. Clin. Invest. 124:4657.
  4. Cao, Y. et al. (2010) Cancer Res. 71:1235.
  5. Scandiuzzi, L. et al. (2014) Cell Rep. 6:625.
  6. Dong, H. et al. (2002) Nat. Med. 8:793.
  7. Azuma, T. et al. (2008) Blood 111:3635.
  8. Park, J.-J. et al. (2010) Blood 116:1291.
  9. Ritprajak, P. et al. (2010) J. Immunol. 184:4918.
  10. Herold, M. et al. (2015) J. Immunol. 195:3584.

Long Name

Programmed Death Ligand 1

Alternate Names

B7-H1, B7H1, CD274, PDCD1L1, PDCD1LG1, PDL1

Entrez Gene IDs

29126 (Human); 60533 (Mouse); 499342 (Rat); 574058 (Porcine); 484186 (Canine); 102145573 (Cynomolgus Monkey)

Gene Symbol

CD274

UniProt

NP_001020392.1
