Recombinant Rat Neuropilin-1 Fc Chimera Protein, CF

R&D Systems | Catalog # 566-N1

R&D Systems
Loading...

Key Product Details

  • R&D Systems Sf 21 (baculovirus)-derived Recombinant Rat Neuropilin-1 Fc Chimera Protein (566-N1)
  • Quality control testing to verify active proteins with lot specific assays by in-house scientists
  • All R&D Systems proteins are covered with a 100% guarantee

Source

Sf 21 (baculovirus)

Accession Number

Structure / Form

Disulfide-linked homodimer

Applications

Binding Activity
Loading...

Product Specifications

Source

Spodoptera frugiperda, Sf 21 (baculovirus)-derived rat Neuropilin-1 protein
Rat Neuropilin-1
Phe22 - Asp854 (Lys811Arg and Pro812 - Gly828 del)
Accession # Q9QWJ9
IEGRDMD Human IgG1
(Pro100 - Lys330)
6-His tag
N-terminus C-terminus

Purity

>90%, by SDS-PAGE under reducing conditions and visualized by silver stain.

Endotoxin Level

<0.1 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Phe22

Predicted Molecular Mass

119 kDa (monomer)

SDS-PAGE

130-150 kDa, reducing conditions

Activity

Measured by its binding ability in a functional ELISA.
Immobilized rrNeuropilin-1/Fc Chimera can bind rhVEGF165 with an apparent KD < 1 nM.

Reviewed Applications

Read 1 review rated 5 using 566-N1 in the following applications:

Formulation, Preparation, and Storage

566-N1
Formulation Lyophilized from a 0.2 μm filtered solution in Citrate Phosphate and NaCl.
Reconstitution

Reconstitute at 200 μg/mL in sterile PBS.


Loading...
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: Neuropilin-1

Neuropilin-1 (Npn-1, previously neuropilin; also CD304) is a 130 - 140 kDa type I transmembrane (TM) glycoprotein that regulates axon guidance and angiogenesis (1 - 4). The mature 901 amino acid (aa) rat Npn-1 contains a 623 aa extracellular domain (ECD) that shares 98% aa identity with mouse and 93% aa identity with human, equine, bovine and canine Npn-1 (3, 4). The ECD contains two N-terminal CUB domains, two F5/8 type C domains with homology to coagulation factors V and VIII and a MAM (meprin) domain. In mouse and human, splice variants that lack the TM domain have been described and are either proven or presumed to be soluble antagonists (1, 5 - 7). The sema domains of Class III secreted semaphorins such as Sema3A bind Npn-1 CUB domains (8). The heparin-binding forms of VEGF (VEGF165, VEGF-B and VEGF-E), PlGF (PlGF2), and the C-terminus of Sema3 bind the F5/8 type C domains (8, 9). Npn-1 and Npn-2 share 48% aa identity within the ECD and can form homo- and hetero-oligomers via interaction of their MAM domains (1). Neuropilins show partially overlapping expression in neuronal and endothelial cells during development (1, 2). Both neuropilins act as co-receptors with plexins, mainly plexin A3 and A4, to bind class III semaphorins that mediate axon repulsion (10). However, only Npn-1 binds Sema3A, and only Npn-2 binds Sema3F (1). Both are co-receptors with VEGF R2 (also called KDR or Flk-1) for VEGF165 binding (1). Sema3A signaling can be blocked by VEGF165, which has higher affinity for Npn-1 (11). Npn-1 is preferentially expressed in developing or remodeling arteries (1, 2). Npn-1 is also expressed on dendritic cells and mediates DC-induced T cell proliferation (12).

References

  1. Bielenberg, D.R. et al. (2006) Exp. Cell Res. 312:584.
  2. Gu, C. et al. (2003) Dev. Cell 5:45.
  3. He, Z. and M. Tessier-Lavigne (1997) Cell 90:739.
  4. Soker, S. et al. (1998) Cell 92:735.
  5. Gagnon, M.L. et al. (2000) Proc. Natl. Acad. Sci. USA 97:2573.
  6. Cackowski, F.C. et al. (2004) Genomics 84:82.
  7. Rossignol, M. et al. (2000) Genomics 70:211.
  8. Gu, C. et al. (2002) J. Biol. Chem. 277:18069.
  9. Mamluk, R. et al. (2002) J. Biol. Chem. 277:24818.
  10. Yaron, A. et al. (2005) Neuron 45:513.
  11. Narazaki, M. and G. Tosato (2006) Blood 107:3892.
  12. Tordjman, R. et al. (2002) Nat. Immunol. 3477.

Alternate Names

BDCA-4, CD304, Neuropilin1, NRP1

Entrez Gene IDs

8829 (Human); 18186 (Mouse); 246331 (Rat); 100286859 (Porcine)

Gene Symbol

NRP1

UniProt

Additional Neuropilin-1 Products

Product Documents for Recombinant Rat Neuropilin-1 Fc Chimera Protein, CF

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Recombinant Rat Neuropilin-1 Fc Chimera Protein, CF

This product or the use of this product is covered by U.S. Patents owned by The Regents of the University of California. This product is for research use only and is not to be used for commercial purposes. Use of this product to produce products for sale or for diagnostic, therapeutic or drug discovery purposes is prohibited. In order to obtain a license to use this product for such purposes, contact The Regents of the University of California.

U.S. Patent # 6,054,293, 6,623,738, and other U.S. and international patents pending.

For research use only

Citations for Recombinant Rat Neuropilin-1 Fc Chimera Protein, CF

Customer Reviews for Recombinant Rat Neuropilin-1 Fc Chimera Protein, CF (1)

5 out of 5
1 Customer Rating
5 Stars
100%
4 Stars
0%
3 Stars
0%
2 Stars
0%
1 Stars
0%

Have you used Recombinant Rat Neuropilin-1 Fc Chimera Protein, CF?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images


Showing  1 - 1 of 1 review Showing All
Filter By:
  • Recombinant Rat Neuropilin-1 Fc Chimera Protein, CF

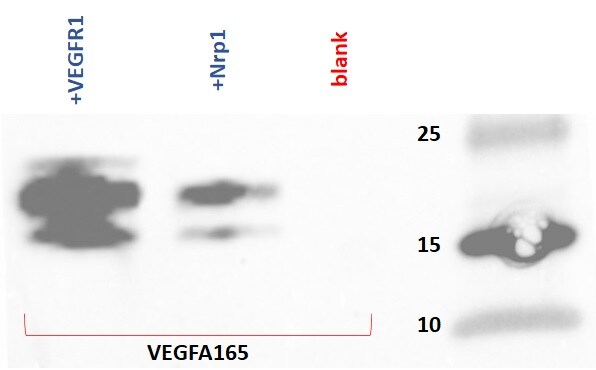

    Name: Rahul Mallick
