Recombinant Rat PD-L2/B7-DC Fc Chimera Protein, CF

Catalog # Availability Size / Price Qty
9994-PL-100
Recombinant Rat PD-L2/B7-DC Fc Chimera Protein, CF Binding Activity
2 Images
Product Details
FAQs
Reviews

Recombinant Rat PD-L2/B7-DC Fc Chimera Protein, CF Summary

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA. When Recombinant Rat PD‑L2/B7‑DC Fc Chimera is coated at 1 μg/mL (100 μL/well), the concentration of Recombinant Rat PD-1 Fc Chimera (Catalog # 9814-PD) that produces 50% optimal binding response is 0.01-0.08 μg/mL
Source
Mouse myeloma cell line, NS0-derived rat PD-L2/B7-DC protein
Rat PD-L2
(Leu20-Arg219)
Accession # NP_001101052.2
IEGRMD Human IgG1
(Pro100-Lys330)
N-terminusC-terminus
Accession #
N-terminal Sequence
Analysis
Leu20
Structure / Form
Disulfide-linked homodimer
Predicted Molecular Mass
49 kDa
SDS-PAGE
62-73 kDa, reducing conditions

Product Datasheets

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

9994-PL

Formulation Lyophilized from a 0.2 μm filtered solution in Tris, NaCl and EDTA with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in water.
Shipping The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage:
  • 12 months from date of receipt, ≤ -20 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, ≤ -20 °C under sterile conditions after reconstitution.

Data Images

Binding Activity Binding Activity View Larger

When Recombinant Rat PD‑L2/B7‑DC Fc Chimera (Catalog # 9994-PL) is coated at 1 μg/mL (100 μL/well), Recombinant Rat PD-1 Fc Chimera (Catalog # 9814-PD) binds with an ED50  of 0.01-0.08 μg/mL.

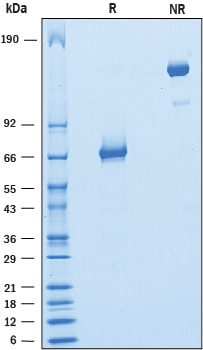

SDS-PAGE SDS-PAGE View Larger

2 μg/lane of Recombinant Rat PD‑L2/B7‑DC was resolved with SDS-PAGE underreducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Bluestaining, showing bands at 62-73 kDa and 120-150 kDa, respectively.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: PD-L2/B7-DC

Programmed Death Ligand 2 (PD-L2), also known as Butyrophilin B7-DC, is a member of the B7 family of proteins that provide signals for regulating T-cell activation and tolerance (1). In humans, the mature PD-L2 consists of a 201 amino acid (aa) extracellular domain (ECD) with one V-like and one C-like Ig domain, a 21 aa transmembrane segment, and a 32 aa cytoplasmic domain (2, 3). Within the ECD, rat PD-L2 shares 71% and 95% aa sequence identity with human and mouse PD-L2, respectively. PD-L2 is expressed on dendritic cells, subsets of activated CD4+ and CD8+ T cells, and memory B cells that differentiate into plasma cells (3-5). At inflammatory sites such as rheumatoid arthritis, allergen exposure, and virus infection, PD-L2 is up-regulated on synoviocytes, infiltrating macrophages, dendritic cells, and airway epithelial cells (6-10). PD-L2, along with B7-H1/PD-L1, binds to T cell PD-1 where it promotes IFN-gamma production and CD40 Ligand up-regulation while inhibiting IL-4 production (2, 3, 11, 12). In addition, PD-L2 binds to RGM-B on macrophages and alveolar epithelial cells, supporting respiratory immune tolerance (13). In asthma, PD-L2 suppresses IL-5 and IL-13 production, promotes IL-12 production by dendritic cells, and supports allergen-induced airway hyper-responsiveness and mucus production (8, 10).

References
  1. Ceeraz, S. et al. (2013) Trends Immunol. 34:556.
  2. Latchman, Y. et al. (2001) Nat. Immunol. 2:261.
  3. Tseng, S.Y. et al. (2001) J. Exp. Med. 193:839.
  4. Messal, N. et al. (2011) Mol. Immunol. 48:2214.
  5. Zuccarino-Catania, G.V. et al. (2014) Nat. Immunol. 15:631.
  6. Guo, G. et al. (2012) Clin. Rheumatol. 31:271.
  7. Loke, P. and J.P. Allison (2003) Proc. Natl. Acad. Sci. USA 100:5336.
  8. Matsumoto, K. et al. (2004) J. Immunol. 172:2530.
  9. Stanciu, L.A. et al. (2006) J. Infec. Dis. 193:404.
  10. Lewkowich, I.P. et al. (2013) Mucosal Immun. 6:728.
  11. Ghiotto, M. et al. (2010) Int. Immunol. 22:651.
  12. Shin, T. et al. (2003) J. Exp. Med. 198:31.
  13. Xiao, Y. et al. (2014) J. Exp. Med. 211:943.
Long Name
Programmed Death-1 Ligand-2
Entrez Gene IDs
80380 (Human); 58205 (Mouse); 309304 (Rat); 102146227 (Cynomolgus Monkey)
Alternate Names
B7-DC; bA574F11.2; Btdc; Butyrophilin B7-DC; Butyrophilin-like Protein; CD273 antigen; CD273; CD273PD-1 ligand 2; MGC142240; PD-1-ligand 2; PDCD1L2MGC142238; PDCD1LG2; PDL2; PD-L2; PDL2B7DC; PD-L2PDCD1 ligand 2; programmed cell death 1 ligand 2; Programmed death ligand 2
