Recombinant Rat VISTA/B7-H5/PD-1H Fc Chimera Protein, CF

Catalog # Availability Size / Price Qty
Recombinant Rat VISTA/B7-H5/PD-1H Fc Chimera Protein, CF Data
2 Images
Product Details

Recombinant Rat VISTA/B7-H5/PD-1H Fc Chimera Protein, CF Summary

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Measured by its ability to inhibit anti-CD3 antibody induced IFN-gamma secretion by human peripheral blood mononuclear cells (PBMC). The ED50 for this effect is 1-6 μg/mL.
Mouse myeloma cell line, NS0-derived rat VISTA/B7-H5/PD-1H protein
Accession # NP_001037765.1
Accession #
N-terminal Sequence
Structure / Form
Disulfide-linked homodimer
Predicted Molecular Mass
44.6 kDa
60-70 kDa, reducing conditions

Product Datasheets

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.


Formulation Lyophilized from a 0.2 μm filtered solution in PBS.
Reconstitution Reconstitute at 200 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage:
  • 12 months from date of receipt, ≤ -20 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, ≤ -20 °C under sterile conditions after reconstitution.

Data Images

Bioactivity View Larger

Recombinant Rat VISTA/B7-H5/PD-1H Fc Chimera (Catalog # 2288-B7) inhibits IFN-gamma secretion by human peripheral blood mononuclear cells in the presence of anti-CD3 antibody. The ED50for this effect is 1-6 μg/mL.

SDS-PAGE View Larger

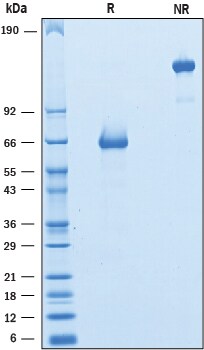

2 μg/lane of Recombinant Rat VISTA/B7-H5/PD-1H was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 60-70 kDa and 120-140 kDa, respectively.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Background: VISTA/B7-H5/PD-1H

V-domain Ig suppressor of T cell activation (VISTA), also known as platelet receptor Gi24, Dies1, SISP1, PD-1H, and B7‑H5, is a 50-60 kDa transmembrane glycoprotein with homology to B7-like immune co-stimulatory molecules (1, 2). Mature rat VISTA contains a 160 amino acid (aa) extracellular domain (ECD) with one Ig-like domain, a 24 aa transmembrane segment, and a 96 aa cytoplasmic domain. The ECD of rat VISTA shares a 78% and 67% aa sequence identity with mouse and human VISTA, respectively. In human VISTA, a 30 kDa ECD can be shed by MT1‑MMP, leaving a 25-30 kDa fragment remaining in the membrane (3). VISTA promotes both MT1‑MMP expression and the MT1-MMP mediated activation of MMP-2 (3). VISTA has been shown to support the differentiation of embryonic stem cells (ESC) and enhances BMP-4 induced signaling in ESC, but it is also down-regulated following BMP-4 exposure (4, 5). Vista can bind directly to BMP-4, but it also associates with the type I BMP receptor Activin RIB/ALK 4 (4, 5). VISTA is highly expressed on mature CD11b high myeloid-derived APCs and to a lesser extent on CD4+, CD8+, and T regs and is also found on tumor infiltrating lymphocytes (7). It is up-regulated in vivo on activated monocytes and dendritic cells (5). VISTA inhibits CD4+ and CD8+ T cell proliferation, and their production of IL2 and IFN-gamma (6). Its expression on tumor cells attenuates the antitumor immune response and enables more rapid tumor progression (6). Suppression of VISTA signaling was shown to increase the rate of progression in the mouse autoimmune disease model EAE (6). VISTA-Ig suppressed proliferation of T cells but not B cells and blunted the production of T cell cytokines and activation markers, suggesting that VISTA as a negative checkpoint regulator suppresses T cell activation (8, 9).

  1. Flajnik, M.F. et al. (2012) Immunogenetics 64:571.
  2. Wilcox, R.A. et al. (2012) Eur. J. Haematol. 88:465.
  3. Sakr, M.A. et al. (2010) Cancer Sci. 101:2368.
  4. Aloia, L. et al. (2010) J. Biol. Chem.285:7776.
  5. Parisi, S. et al. (2012) FASEB J. 26:3957.
  6. Wang, L. et al. (2011) J. Exp. Med. 208:577.
  7. Flies, D.B. et al. (2014) J Clin Invest. 124:1966.
  8. Lines, J.L. et al. (2014) Cancer Res. 74:1924.
  9. Nowak, E.C. et al. (2017) Immunol Rev. 276:66.
Entrez Gene IDs
64115 (Human); 74048 (Mouse); 690899 (Rat); 102116468 (Cynomolgus Monkey)
Alternate Names
4632428N05Rik; B7H5; B7-H5; C10orf54; chromosome 10 open reading frame 54; Dies1; Gi24; PD1H; PD-1H; platelet receptor Gi24; PP2135; SISP1; stress induced secreted protein 1; VISTA; VSIR
