SARS-CoV-2, which causes the global pandemic coronavirus disease 2019 (Covid-19), belongs to a family of viruses known as coronaviruses that also include MERS and SARS-CoV-1. Coronaviruses are commonly comprised of four structural proteins: Spike protein (S), Envelope protein (E), Membrane protein (M) and Nucleocapsid protein (N) (1). The SARS-CoV-2 S protein is a glycoprotein that mediates membrane fusion and viral entry. The S protein is homotrimeric, with each ~180-kDa monomer consisting of two subunits, S1 and S2 (2). In SARS-CoV-2, as with most coronaviruses, proteolytic cleavage of the S protein into S1 and S2 subunits is required for activation. The S1 subunit is focused on attachment of the protein to the host receptor while the S2 subunit is involved with cell fusion (3-5). A metallopeptidase, angiotensin-converting enzyme 2 (ACE2), has been identified as a functional receptor for SARS-CoV-2 through interaction with a receptor binding domain (RBD) located at the C-terminus of S1 subunit (6,7). The RBD of SARS-CoV-2 shares 73% aa identity with the RBD of the SARS-CoV-1, but only 22% amino acid (aa) identity with the RBD of MERS. A SARS-CoV-2 variant carrying the aa substitution V367F in the RBD is one of the most prevalent mutations found Covid-19 cases (8-10). This mutation has been associated with enhanced receptor binding affinity, potentially resulting in greater infectivity and transmission of the disease (8, 9). The V367F mutation was also found to have increased sensitivity to neutralizing mAb (9).
Recombinant SARS-CoV-2 V367F Spike RBD His-tag Protein, CF
R&D Systems | Catalog # 10626-CV
Val367Phe Point Mutation
Loading...
Key Product Details
- R&D Systems HEK293-derived Recombinant SARS-CoV-2 V367F Spike RBD His-tag Protein (10626-CV)
- Quality control testing to verify active proteins with lot specific assays by in-house scientists
- All R&D Systems proteins are covered with a 100% guarantee
Source
HEK293
Accession Number
Applications
Bioactivity
Loading...
Product Specifications
Source
Human embryonic kidney cell, HEK293-derived sars-cov-2 Spike RBD protein
Arg319-Phe541 (Val367Phe), with a C-terminal 6-His tag
Arg319-Phe541 (Val367Phe), with a C-terminal 6-His tag
Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
N-terminal Sequence Analysis
Arg319
Predicted Molecular Mass
26 kDa
SDS-PAGE
30-38 kDa, under reducing conditions.
Activity
Measured by its binding ability in a functional ELISA with Recombinant
Human ACE-2 His-tag
(Catalog #
933-ZN).
Scientific Data Images for Recombinant SARS-CoV-2 V367F Spike RBD His-tag Protein, CF
Recombinant SARS-CoV-2 V367F Spike RBD His-tag Protein Binding Activity.
Recombinant SARS-CoV-2 V367F Spike RBD His-tag (Catalog # 10626-CV) binds Recombinant Human ACE-2 His-tag (933-ZN) in a functional ELISA.Recombinant SARS-CoV-2 V367F Spike RBD His-tag Protein SDS-PAGE.

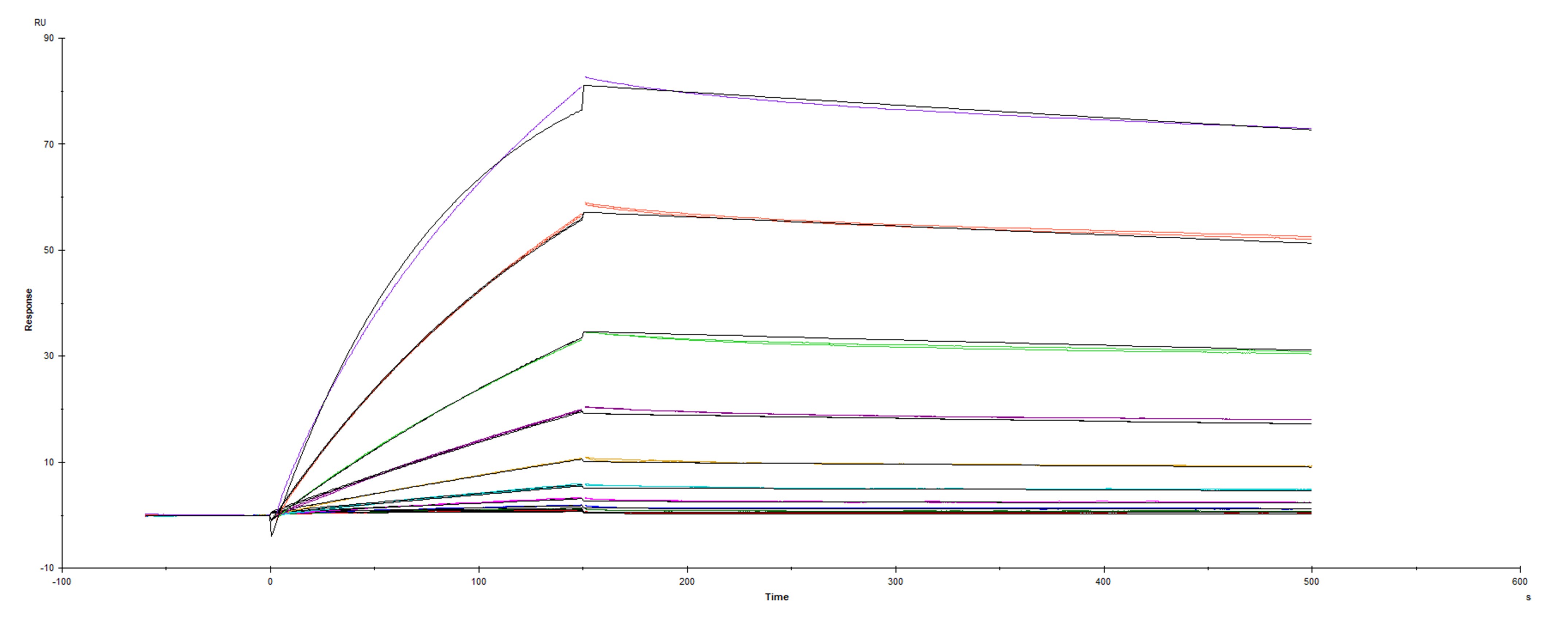

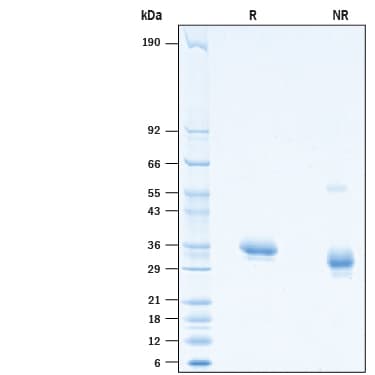

2 μg/lane of Recombinant SARS-CoV-2 V367F Spike RBD His-tag (Catalog # 10626-CV) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 30-38 kDa.Binding of ACE-2 to SARS-CoV-2 Spike RBD V367F by surface plasmon resonance (SPR).
Recombinant SARS-CoV-2 Spike RBD V367F His-tag was immobilized on a Biacore Sensor Chip CM5, and binding to recombinant human ACE-2 (933-ZN) was measured at a concentration range between 0.18 nM and 94.3 nM. The double-referenced sensorgram was fit to a 1:1 binding model to determine the binding kinetics and affinity, with an affinity constant of KD=2.449 nM.Formulation, Preparation, and Storage
10626-CV
| Formulation | Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. |
| Reconstitution | Reconstitute at 500 μg/mL in PBS. |
| Shipping | The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. |
| Stability & Storage | Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
|
Calculators
Background: Spike RBD
References
- Wu, F. et al. (2020) Nature 579:265.
- Tortorici, M.A. and D. Veesler (2019). Adv. Virus Res. 105:93.
- Bosch, B.J. et al. (2003). J. Virol. 77:8801.
- Belouzard, S. et al. (2009) Proc. Natl. Acad. Sci. 106:5871.
- Millet, J.K. and G.R. Whittaker (2015) Virus Res. 202:120.
- Li, W. et al. (2003) Nature 426:450.
- Wong, S.K. et al. (2004) J. Biol. Chem. 279:3197.
- O, J. et al. (2020) https://doi.org/10.1101/2020.03.15.991844.
- Li, Q. et al. (2020) Cell. 182:1284.
Long Name
Spike Receptor Binding Domain
Gene Symbol
S
UniProt
