Simple Plex Human BDNF Cartridge

R&D Systems | Catalog # SPCKB-PS-000389

Simple Plex Human BDNF assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.
R&D Systems

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Serum (5 µL), Platelet-poor EDTA Plasma (25 µL), Platelet-poor Heparin Plasma (25 µL)

Sensitivity

5.25 pg/mL

Assay Range

9.44-36000 pg/mL (Serum, Platelet-poor EDTA Plasma, Platelet-poor Heparin Plasma)

Simple Plex Human BDNF Cartridge Summary

Simple Plex assay is for the detection of human free Brain-Derived Neurotrophic Factor (BDNF) in serum and platelet-poor plasma (EDTA/Heparin) in Sample Diluent SD13.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all BDNF Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.
Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Human

Specificity

Natural and recombinant human free BDNF.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested multiple times in one BDNF assay.

Inter-Assay Precision (Precision between assays) Replicates of each BDNF control were tested in multiple assays performed by at least three technicians using two lots of reagents for human BDNF.

Platelet-poor EDTA Plasma, Platelet-poor Heparin Plasma, Serum

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 20 22
Mean (pg/mL) 207 10,079 219 11,200
Standard Deviation 19.8 867 22.9 1144
CV% 9.6 8.6 10.5 10.2

Recovery for Simple Plex Human BDNF Cartridge

Recovery for the human BDNF assays was evaluated at three different spiked concentrations of BDNF protein.

Sample Type Average % Recovery Range %
Platelet-poor EDTA Plasma (n=4) 82 76-86

Linearity

Samples containing and/or spiked with high concentrations of human free BDNF were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

Simple Plex Human BDNF Assay Linearity

Scientific Data Images for Simple Plex Human BDNF Cartridge

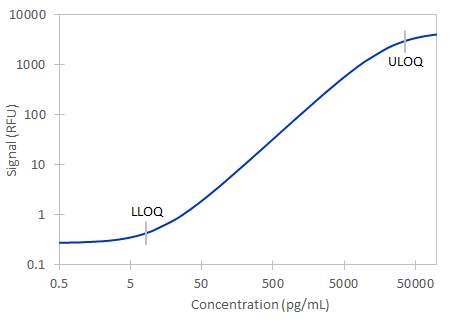

Simple Plex Human BDNF Assay Standard Curve

Simple Plex Human BDNF Assay Standard Curve

Data shown represents typical performance results for Lower Limit of Quantitation (LLOQ) and Upper Limit of Quantitation (ULOQ) for Simple Plex Human BDNF Assay. Assay range is 9.44-36,000 pg/mL.

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: BDNF

BDNF (Brain-Derived Neurotrophic Factor) is a secreted protein that regulates many aspects of neuronal development and function in the nervous system. It is produced as proBDNF in response to neuronal activity or inflammatory stimulation and is then cleaved before associating into a homodimer. It is expressed throughout the nervous system as well as by fibroblasts, megakaryocytes/platelets, and smooth muscle cells. BDNF regulates neural stem cell survival and differentiation, axon/dendrite differentiation, synapse formation and maturation, and refinement of developing circuits. It is also a key regulator of synaptic plasticity and late-phase long-term potentiation. BDNF signals through the TrkB and NGF R/TNFRSF16 receptors. Secreted proBDNF can bind to NGF R/TNFRSF16 and induce long-term depression and cell apoptosis.

Long Name

Brain-derived Neurotrophic Factor

Alternate Names

Abrineurin, ANON2, BULN2, Neurotrophin

Entrez Gene IDs

627 (Human); 12064 (Mouse); 24225 (Rat)

Gene Symbol

BDNF
