Simple Plex Human IL-18 Cartridge

Name: Simple Plex Human IL-18 Cartridge
Brand: R&D Systems
SKU: SPCKB-PS-000501
Price: 885 USD
Availability: InStock

R&D Systems | Catalog # SPCKB-PS-000501

Submit a review

Citations (1)

Product Documents

Simple Plex Human IL-18/IL-1F4 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer. Sample type indicated with PS (Plasma/Serum).

Compatible Instruments
Product Specifications
Precision
Recovery
Linearity
Scientific Data
Preparation & Storage
Background
Product Documents
Specific Notices
Research Areas

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (25 µL), Serum (25 µL), EDTA Plasma (25 µL), Heparin Plasma (25 µL), Urine (10 µL)

Sensitivity

0.2 pg/mL

Assay Range

2.4-3660 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Urine)

Simple Plex Human IL-18 Cartridge Summary

Simple Plex assay is for the detection of human Interleukin 18 (IL-18) in cell culture supernatant (CCS), serum, plasma (EDTA/Heparin), and urine in Sample Diluent SD13.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all IL-18/IL-1F4 Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.

Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Human

Specificity

Natural and recombinant human IL-18.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested multiple times in one IL-18 assay.

Inter-Assay Precision (Precision between assays) Replicates of each IL-18 control were tested in multiple assays performed by at least three technicians using two lots of reagents for human IL-18.

Cell Culture Supernates, EDTA Plasma, Heparin Plasma, Serum, Urine

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	15	14
Mean (pg/mL)	10.5	569	10.3	587
Standard Deviation	0.524	18.7	0.882	58.4
CV%	5.2	3.3	8.6	10.0

Recovery for Simple Plex Human IL-18 Cartridge

Recovery for the human IL-18 assays was evaluated at three different spiked concentrations of IL-18 protein.

Sample Type	Average % Recovery	Range %
Urine (n=5)	120	114-128

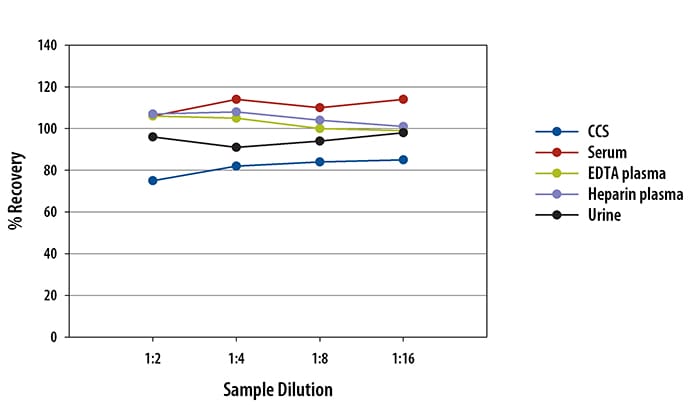

Linearity

Samples containing and/or spiked with high concentrations of human IL-18 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Images for Simple Plex Human IL-18 Cartridge

Data shown represents typical performance results for Lower Limit of Quantitation (LLOQ) and Upper Limit of Quantitation (ULOQ) for Simple Plex Human IL-18 Assay. Assay range is 2.40-3660 pg/mL.

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-18/IL-1F4

IL-18 (Interleukin-18) is secreted by macrophages, dendritic cells, and epithelial cells. Circulating mature IL-18 is sequestered by soluble IL-18 binding proteins (IL-18 BP) that inhibit IL-18 bioactivity. IL-18 signals through a receptor complex that contains IL-18 R alpha IL-18 R beta. It synergizes with other cytokines to activate NK, Th1, and Th17 cells and to increase the production of IFN-gamma. It can also promote Th2 cytokine release which reduces the effectiveness of antiviral responses. Increased levels of active IL-18 contribute to the severity of autoimmunity and hypertension, while deficiency of IL-18 results in symptoms of metabolic syndrome. In cancer, IL-18 stimulates Th1 and NK cells to target tumor cells, but it can also promote angiogenesis, metastasis, and tumor cell immune evasion.
