SPiDER-βGal Cellular Senescence Dye

Tocris Bioscience | Catalog # 9034

Fluorogenic β-galactosidase substrate suitable for live/fixed cells and tissues imaging.
Tocris Bioscience

Key Product Details

Description

Fluorogenic β-galactosidase substrate suitable for live/fixed cells and tissues imaging.
View all Live-cell Imaging »

Product Description

Key information: SPiDER-βGal Cellular Senescence Dye is a fluorogenic β-galactosidase substrate suitable for labeling live cells in culture and living tissues. It exhibits activation of fluorescence upon reaction with the enzyme, remains inside cells by anchoring itself to intracellular proteins and provides single-cell resolution.

Used for: labeling and imaging lacZ reporters in living cells, tissues and model organisms. Also used to investigate senescence.

Application: Confocal microscopy, flow cytometry, fluorescence microscopy. SPiDER-βGal Cellular Senescence Dye has high sensitivity for the detection of peritoneal ovarian cancer metastases in animal models and displays high constrast of tumor margins. SPiDER-βGal Cellular Senescence Dye was used for investigating senescence of pancreatic cells and imaging adhesion G-protein-coupled receptors expressed in endothelial cells.

Properties and Photophysical Data: Excitation and emission maxima (λ) measured in 200 mM sodium phosphate buffer are 500-540 nm and 530-570 nm, respectively; activation ratio >650-fold.

Please refer to this protocol for further information on how to use this product.

Scientific Data Images for SPiDER-βGal Cellular Senescence Dye

SPiDER-beta Gal labels beta -galactosidase-expressing cells in both live and fixed conditions

SPiDER-beta Gal labels beta -galactosidase-expressing cells in both live and fixed conditions.

HEK/LacZ and HEK cells (1:1 co-culture) were incubated with 1 µmol/L SPiDER-beta Gal for 15 min at 37°C. (A) Living cells. (B) Cells fixed post-staining with 4% PFA/PBS. Fluorescence imaging: Ex 550/25 nm, Em 605/70 nm. Yellow: SPiDER-beta Gal; Blue: Hoechst 33342 (Catalog # 5117). Signal is retained following fixation, confirming compatibility with standard immunostaining workflows.

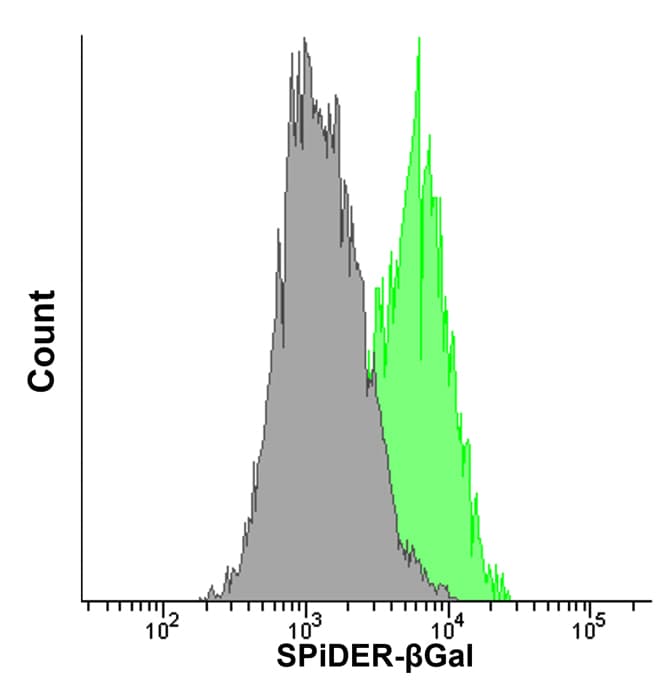

Flow cytometric detection of senescence-associated beta -galactosidase activity in WI-38 cells using SPiDER-beta Gal.

Flow cytometric detection of senescence-associated beta -galactosidase activity in WI-38 cells using SPiDER-beta Gal.

WI-38 cells at passage 1 (grey) and passage 12 (green) were incubated with 1 µmol/L SPiDER-beta Gal for 15 min at 37°C and analysed by flow cytometry (Ex: 488 nm; Em: 500–600 nm). A marked rightward shift in fluorescence intensity at passage 12 reflects elevated SA-beta -gal activity consistent with replicative senescence. SPiDER-beta Gal enables quantitative discrimination of senescent cell populations by flow cytometry without the need for fixation.
Detection of senescence-associated beta -galactosidase (SA-beta -gal) activity using SPiDER-beta Gal

Detection of senescence-associated beta -galactosidase (SA-beta -gal) activity using SPiDER-beta Gal.

Cells were incubated with 1 µmol/L SPiDER-beta Gal for 30 min at 37°C and imaged by widefield fluorescence microscopy. Green: SPiDER-beta Gal (SA-beta -gal activity); Blue: Hoechst 33342 (Catalog # 5117). SPiDER-beta Gal self-immobilises to intracellular proteins following enzymatic cleavage, enabling high-contrast imaging of senescent cell populations.

Product Specifications for SPiDER-βGal Cellular Senescence Dye

Molecular Weight

567.60

Formula

C31H34FNO8

Storage

Store at +4°C

Purity

≥85% (HPLC)

Chemical Name

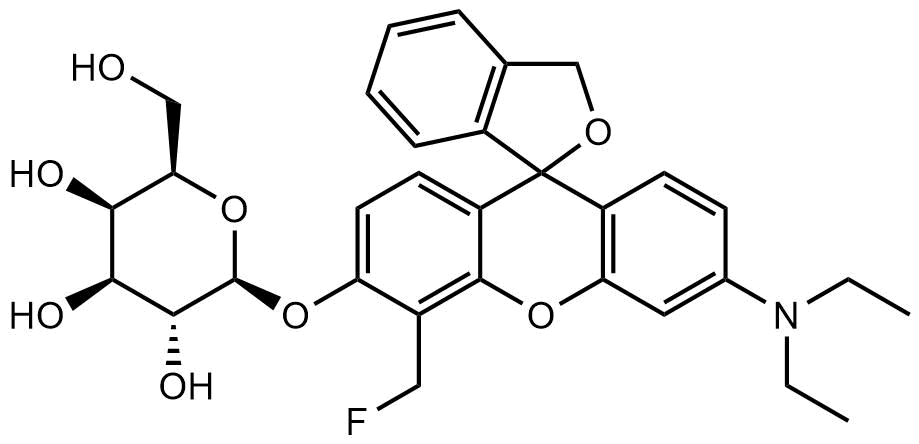

6'-(Diethylamino)-4'-(fluoromethyl)spiro[isobenzofuran-1(3H),9'-[9H]xanthen]-3'-yl-β-D-galactopyranoside

CAS Number

1824699-57-1

PubChem ID

92135962

InChI Key

SVEDIEUQTRCORD-JGANWENXSA-N

SMILES

O[C@H]([C@H](O)[C@H]1O)[C@@H](CO)O[C@H]1OC2=CC=C3C(OC(C=C(N(CC)CC)C=C4)=C4C35OCC6=C5C=CC=C6)=C2CF

The technical data provided above is for guidance only. For batch specific data refer to the Certificate of Analysis.

Calculators

Calculate the mass, volume, or concentration required for a solution.

=
x
x
g/mol

*When preparing stock solutions always use the batch-specific molecular weight of the product found on the vial label and CoA (available online).

Calculate the dilution required to prepare a stock solution.

x
=
x

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Product Documents for SPiDER-βGal Cellular Senescence Dye

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Product Specific Notices for SPiDER-βGal Cellular Senescence Dye

For research use only
