MIP-3 beta, also known as ELC (EBI1-Ligand Chemokine), is one of many novel beta chemokines identified through bioinformatics. MIP-3 beta cDNA encodes a 98 amino acid (aa) residue precursor protein with a predicted 21 aa residue signal peptide that is cleaved to form the 77 aa residue mature secreted protein. MIP-3 beta is distantly related to other beta chemokines (20-30% aa sequence identity) and the gene for MIP-3 beta has been mapped to chromosome 9p13 rather than chromosome 17 where the genes for many human beta chemokines are clustered. MIP-3 beta has been shown to be constitutively expressed in various lymphoid tissues (including thymus, lymph nodes, appendix and spleen). The expression of MIP-3 beta is down-regulated by the anti-inflammatory cytokine IL-10. MIP-3 beta has been shown to be a unique functional ligand for CCR7 (previously referred to as the Epstein-Barr virus-induced gene 1 (EBI1) orphan receptor), a chemokine receptor that is expressed in various lymphoid tissues and activated B and T lymphocytes. EBI1 is strongly up-regulated in B cells infected with Epstein-Barr virus and T cells infected with herpesvirus 6 or 7.
Key Product Details
Validated by
Species Reactivity
Validated:
Cited:
Applications
Validated:
Cited:
Label
Antibody Source
Product Specifications
Immunogen
Gly22-Ser98
Accession # Q99731
Specificity
Clonality
Host
Isotype
Endotoxin Level
Scientific Data Images for Human CCL19/MIP‑3 beta Antibody
Detection of Human CCL19/MIP‑3 beta by Western Blot.
Western blot shows conditioned media from monocyte-derived macrophages untreated (-) or treated (+) with 1 µg/mL LPS and 40 ng/mL Recombinant Human IFN-gamma (Catalog # 285-IF) for 24 hours. PVDF membrane was probed with 1 µg/mL of Goat Anti-Human CCL19/MIP-3 beta Antigen Affinity-purified Polyclonal Antibody (Catalog # AF361) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF017). A specific band was detected for CCL19/MIP-3 beta at approximately 12 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.
Chemotaxis Induced by CCL19/MIP‑3 beta and Neutrali-zation by Human CCL19/MIP‑3 beta Antibody.
Re-combinant Human CCL19/MIP-3 beta (Catalog # 361-MI) chemoattracts the BaF3 mouse pro-B cell line transfected with human CCR7 in a dose-dependent manner (orange line). The amount of cells that migrated through to the lower chemotaxis chamber was measured by Resazurin (Catalog # AR002). Chemotaxis elicited by Recombinant Human CCL19/MIP-3 beta (50 ng/mL) is neutralized (green line) by increasing concentrations of Human CCL19/MIP-3 beta Antigen Affinity-purified Polyclonal Antibody (Catalog # AF361). The ND50 is typically 2-10 µg/mL.
Detection of Human CCL19/MIP‑3 beta by Simple WesternTM.
Simple Western lane view shows conditioned media from monocyte-derived macrophages untreated (-) or treated (+) with 1 µg/mL LPS and 40 ng/mL Recombinant Human IFN-gamma (Catalog # 285-IF) for 24 hours. A specific band was detected for CCL19/MIP-3 beta at approximately 8 kDa (as indicated) using 50 µg/mL of Goat Anti-Human CCL19/MIP-3 beta Antigen Affinity-purified Polyclonal Antibody (Catalog # AF361) followed by 1:50 dilution of HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF109). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.
Applications for Human CCL19/MIP‑3 beta Antibody
Simple Western
Sample: Conditioned media from monocyte-derived macrophages treated with Recombinant Human IFN‑ gamma
(Catalog # 285-IF)
Western Blot
Sample: Recombinant Human CCL19/MIP‑3 beta (Catalog # 361-MI)
Neutralization

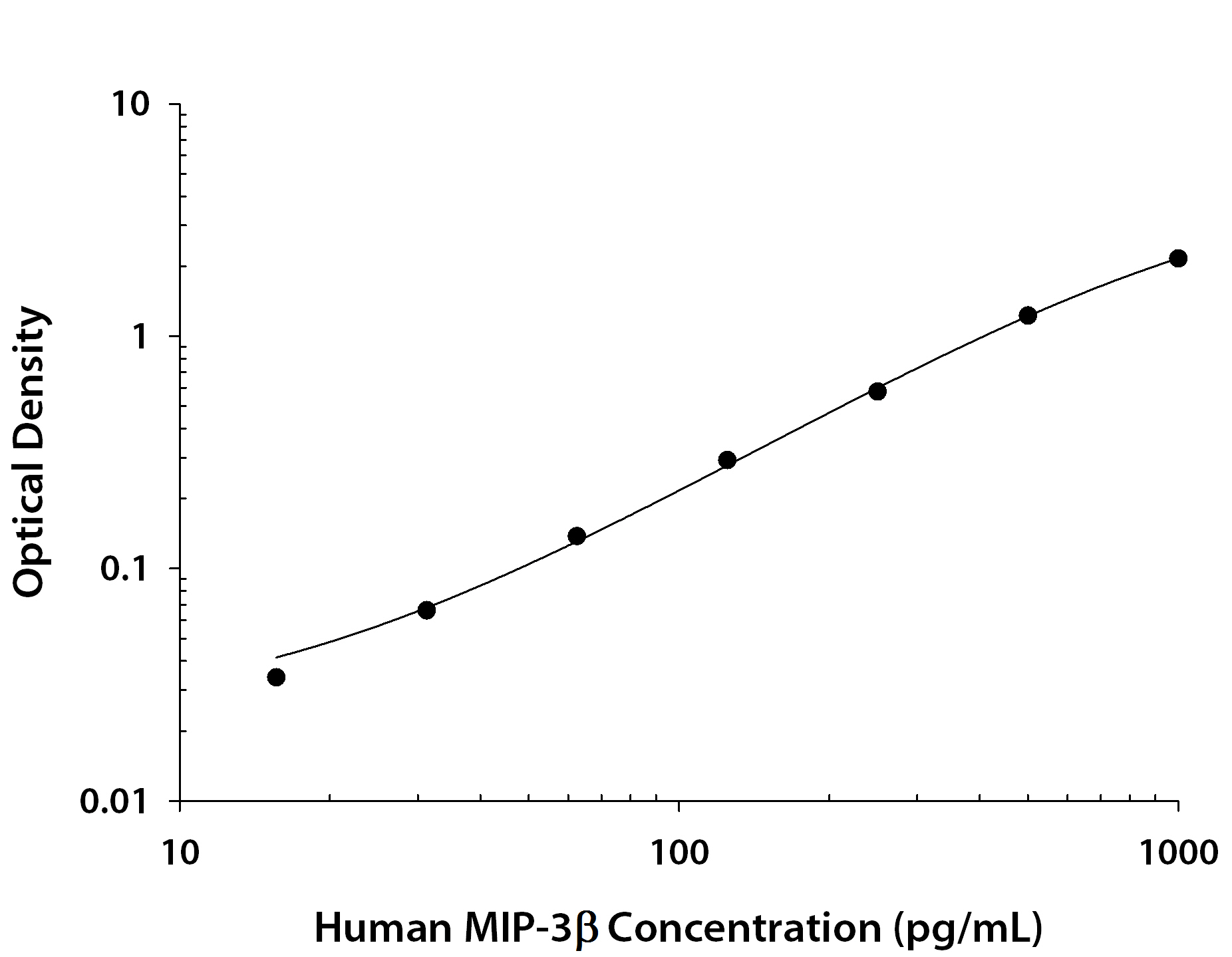

Human CCL19/MIP-3 beta Sandwich Immunoassay
Reviewed Applications
Read 1 review rated 2 using AF361 in the following applications:
Formulation, Preparation, and Storage
Purification
Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: CCL19/MIP-3 beta
Alternate Names
Gene Symbol
UniProt
Additional CCL19/MIP-3 beta Products
Product Documents for Human CCL19/MIP‑3 beta Antibody
Product Specific Notices for Human CCL19/MIP‑3 beta Antibody
For research use only
Citations for Human CCL19/MIP‑3 beta Antibody
Powered by Bioz
Customer Reviews for Human CCL19/MIP‑3 beta Antibody (1)
Have you used Human CCL19/MIP‑3 beta Antibody?
Submit a review and receive an Amazon gift card!
$25/€18/£15/$25CAN/¥2500 Yen for a review with an image
$10/€7/£6/$10CAN/¥1110 Yen for a review without an image
Submit a review
Customer Images
-
Application: Flow CytometrySample Tested: SplenocytesSpecies: HumanVerified Customer | Posted 07/06/2022Does not work for flow cytometry. Positive and negative controls are shown.
Bio-Techne ResponseThank you for reviewing our product. We are sorry to hear that this product did not perform as expected. We have been in touch with the customer to resolve this issue according to our Product Guarantee and to the customer’s satisfaction.
