2B4/CD244/SLAMF4 Antibody (244F4) [PE/Cy5.5]

Name: 2B4/CD244/SLAMF4 Antibody (244F4) [PE/Cy5.5]
Brand: Novus Biologicals
SKU: NBP2-00223PECY55
Price: 579 USD
Availability: InStock

Novus Biologicals | Catalog # NBP2-00223PECY55

Submit a review

Product Documents

View Available Conjugates View Available Formulations

100% Guarantee

Product Specifications
Scientific Data
Applications
Spectra Viewer
Flow Cytometry
Preparation & Storage
Background
Product Documents
Specific Notices
Research Areas

Key Product Details

Species Reactivity

Mouse

Applications

Flow Cytometry, Product Image

Label

PE/Cy5.5 (Excitation = 488 nm, Emission = 695 nm)

Antibody Source

Monoclonal Rat IgG_2A Clone # 244F4

View all 2B4/CD244/SLAMF4 Primary Antibodies »

Product Specifications

Immunogen

The immunogen for this antibody is CD244.

Reactivity Notes

Mouse

Clonality

Monoclonal

Host

Rat

Isotype

IgG_2A

Scientific Data Images for 2B4/CD244/SLAMF4 Antibody (244F4) [PE/Cy5.5]

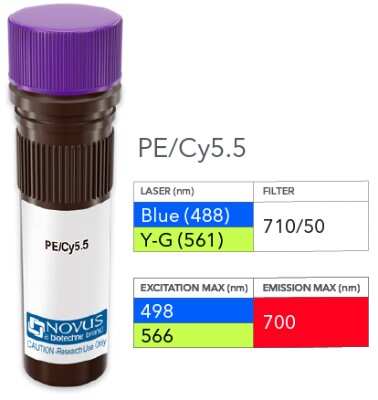

Product Image: 2B4/CD244/SLAMF4 Antibody (244F4) [PE/Cy5.5] [NBP2-00223PECY55] - Vial of PE/Cy5.5 conjugated antibody. PE/Cy5.5 has two excitation maxima, 498 nm excited by the Blue laser (488 nm) and 566 nm excited by the Yellow-Green laser (561 nm). Both result in emission at 700 nm.

Applications for 2B4/CD244/SLAMF4 Antibody (244F4) [PE/Cy5.5]

Application

Recommended Usage

Flow Cytometry

Optimal dilutions of this antibody should be experimentally determined.

Product Image

Optimal dilutions of this antibody should be experimentally determined.

Application Notes

Optimal dilution of this antibody should be experimentally determined. For optimal results using our Tandem dyes, please avoid prolonged exposure to light or extreme temperature fluctuations. These can lead to irreversible degradation or decoupling. When staining intracellular targets, specific attention to the fixation and permeabilization steps in your flow protocol may be required. Please contact our technical support team at technical@novusbio.com if you have any questions.

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
Spillover Popups - Visualize the spectra of individual fluorochromes
Antigen Density Selector - Match fluorochrome brightness with antigen density

Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A or G purified

Formulation

PBS

Preservative

0.05% Sodium Azide

Concentration

Concentrations vary lot to lot. See vial label for concentration. If unlisted please contact technical services.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C in the dark. Do not freeze.

Background: 2B4/CD244/SLAMF4

2B4, also known as CD244 and SLAMF4, is a type I transmembrane glycoprotein that is member of the signaling lymphocyte activation molecule (SLAM) subfamily in immunoglobulin (Ig) superfamily (1,2). The 2B4 protein plays a role in immune system associated diseases including the recognition and clearance of cancer cells, infected cells, and key allergy cells (1). 2B4 is expressed as a heterophilic receptor on the cell membrane of natural killer (NK) cells in addition to on monocytes and basophils, gamma/delta T cells, a subset of CD8+ T cells, and other immune cells and tissues (1). Additionally, 2B4 is considered a marker for CD8+ T cell exhaustion in chronic infection and increased expression has been observed in diseases including lymphocytic choriomeningitis virus (LCMV) and hepatitis B virus (HBV) (2). Human 2B4 protein is 370 amino acids (aa) in length with a theoretical molecular weight (MW) of 41 kDa (3). However, 2B4 contains multiple glycosylation sites that increases its observed MW to ~70 kDa (3). The 2B4/CD244 protein consists of a 21 aa signal peptide followed by an extracellular domain (ECD) with two Ig-like domains, a single transmembrane domain, and four cytoplasmic immunoreceptor tyrosine-based switch motifs (ITSMs) (3).

The 2B4 receptor has both activating and inhibitory signaling properties (1,4). 2B4's ligand is CD48, which is expressed on hematopoietic cells (4, 5). When bound to CD48, subsequent phosphorylation of the ITSMs occurs, followed by recruitment of SH-2-containing adaptor protein (SAP) and Fyn, leading to phosphorylation of PLCgamma and Vav1, and resulting in NK cell activation (4). In the absence of SAP, Src homology region 2-containing protein tyrosine phosphatases (SHP) get recruited and inhibits NK cell activation (4). In the context of infection such as Epstein-Barr virus (EBV), when lacking SAP, 2B4 has been shown to have an inhibitory function via impaired T cell cytotoxicity against EBV-infected cells (6). While 2B4 has a role in eliciting CD8+ T cell response, overexpression of 2B4 can lead to T cell exhaustion in states of chronic infection (6). Studies have suggested that the antibody blockade of the 2B4-CD48 interaction might enhance T cell and NK cell function, however given both the activating and inhibitory properties of the 2B4 receptor, more research needs to be done to prevent unwanted effects (6).

References

1. Buller CW, Mathew PA, Mathew SO. Roles of NK Cell Receptors 2B4 (CD244), CS1 (CD319), and LLT1 (CLEC2D) in Cancer. Cancers (Basel). 2020 Jul 1;12(7):1755. https://doi.org/10.3390/cancers12071755

2. Catakovic K, Klieser E, Neureiter D, Geisberger R. T cell exhaustion: from pathophysiological basics to tumor immunotherapy. Cell Commun Signal. 2017;15(1):1. https://doi.org/10.1186/s12964-016-0160-z

3. Uniprot (Q9BZW8)

4. Chen Y, Lu D, Churov A, Fu R. Research Progress on NK Cell Receptors and Their Signaling Pathways. Mediators Inflamm. 2020 Jul 24;2020:6437057. https://doi.org/10.1155/2020/6437057.

5. Pahima H, Puzzovio PG, Levi-Schaffer F. 2B4 and CD48: A powerful couple of the immune system. Clin Immunol. 2019 Jul;204:64-68. https://doi.org/10.1016/j.clim.2018.10.014.

6. Waggoner SN, Kumar V. Evolving role of 2B4/CD244 in T and NK cell responses during virus infection. Front Immunol. 2012;3:377. https://doi.org/10.3389/fimmu.2012.00377

Alternate Names

CD244, NAIL, NKR2B4, Nmrk, SLAMF4

Gene Symbol

CD244

Additional 2B4/CD244/SLAMF4 Products

Product Documents for 2B4/CD244/SLAMF4 Antibody (244F4) [PE/Cy5.5]

Download Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Download SDS

Product Specific Notices for 2B4/CD244/SLAMF4 Antibody (244F4) [PE/Cy5.5]

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
