ATF6 Antibody (8D3-R)

Western Blot: ATF6 Antibody (8D3-R) [NBP3-32054]

Western Blot: ATF6 Antibody (8D3-R) [NBP3-32054] - Western blot analysis of ATF6 on different lysates with Mouse anti-ATF6 antibody (NBP3-32054) at 1/1,000 dilution.

Lane 1: HeLa cell lysate (20 ug/Lane)
Lane 2: Jurkat cell lysate (20 ug/Lane)
Lane 3: RAW264.7 cell lysate (20 ug/Lane)
Lane 4: PC-12 cell lysate (20 ug/Lane)
Lane 5: Mouse brain tissue lysate (40 ug/Lane)
Lane 6: Mouse kidney tissue lysate (40 ug/Lane)

Predicted band size: 75 kDa
Observed band size: 75 kDa

Exposure time: 1 minute 21 seconds;

4-20% SDS-PAGE gel.

Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (NBP3-32054) at 1/1,000 dilution was used in 5% NFDM/TBST at 4C overnight. Goat Anti-Mouse IgG - HRP Secondary Antibody at 1/50,000 dilution was used for 1 hour at room temperature.

Immunocytochemistry/ Immunofluorescence: ATF6 Antibody (8D3-R) [NBP3-32054]

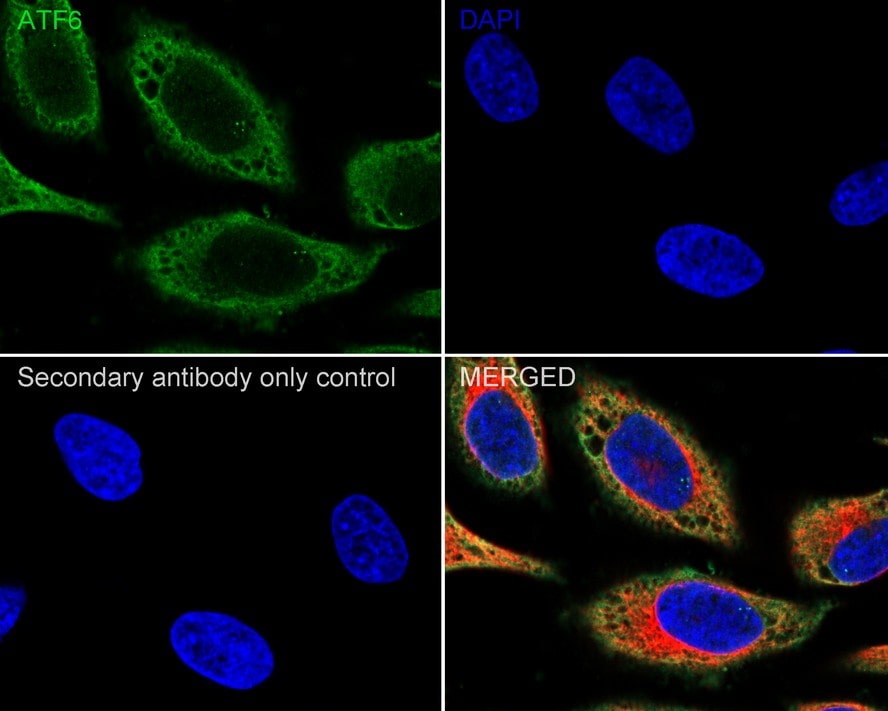

Immunocytochemistry/ Immunofluorescence: ATF6 Antibody (8D3-R) [NBP3-32054] - Immunocytochemistry analysis of HeLa cells labeling ATF6 with Mouse anti-ATF6 antibody (NBP3-32054) at 1/100 dilution.

Cells were fixed in 4% paraformaldehyde for 20 minutes at room temperature, permeabilized with 0.1% Triton X-100 in PBS for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Mouse anti-ATF6 antibody (NBP3-32054) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Mouse IgG H&L (iFluor™ 488) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.

beta Tubulin (red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Rabbit IgG H&L (iFluor™ 594) were used as the secondary antibody at 1/1,000 dilution.
