Key Product Details

Species Reactivity

Validated:

Mouse

Cited:

Mouse

Applications

Validated:

Flow Cytometry

Cited:

Flow Cytometry

Label

Unconjugated

Antibody Source

Monoclonal Rat IgG1 kappa Clone # 12-15

Format

Azide and BSA Free
View all CD2 Primary Antibodies »

Product Specifications

Immunogen

Crude plasma membranes of ESb cells

Specificity

Mouse CD2/LFA-2 (Mr 45-58 kDa)

Clonality

Monoclonal

Host

Rat

Isotype

IgG1 kappa

Scientific Data Images for CD2 Antibody (12-15) - Azide and BSA Free

Flow Cytometry: CD2 Antibody (12-15) - Azide and BSA Free [NBP1-26666]

Flow Cytometry: CD2 Antibody (12-15) - Azide and BSA Free [NBP1-26666]

Flow Cytometry: CD2 Antibody (12-15) [NBP1-26666] - BALB/c mouse splenocytes were stained with Rat Anti-Mouse CD2-UNLBfollowed by Mouse Anti-Rat IgG1-FITC.
Flow Cytometry: CD2 Antibody (12-15) - Azide and BSA Free [NBP1-26666]

Flow Cytometry: CD2 Antibody (12-15) - Azide and BSA Free [NBP1-26666]

Flow Cytometry: CD2 Antibody (12-15) [NBP1-26666] - Analysis using the Biotin conjugate of NBP1-26666. Multiple staining of C57BL/6 splenocytes.
Flow Cytometry: CD2 Antibody (12-15) - Azide and BSA Free [NBP1-26666]

Flow Cytometry: CD2 Antibody (12-15) - Azide and BSA Free [NBP1-26666]

Flow Cytometry: CD2 Antibody (12-15) [NBP1-26666] - Analysis using the FITC conjugate of NBP1-26666. Staining of 1 ug/1^6 BALB/c lymph node cells with rat anti-mouse CD2-FITC. Lymphocytes were then gated and analyzed by flow cytometry.
Flow Cytometry: CD2 Antibody (12-15) - Azide and BSA Free [NBP1-26666]

Flow Cytometry: CD2 Antibody (12-15) - Azide and BSA Free [NBP1-26666]

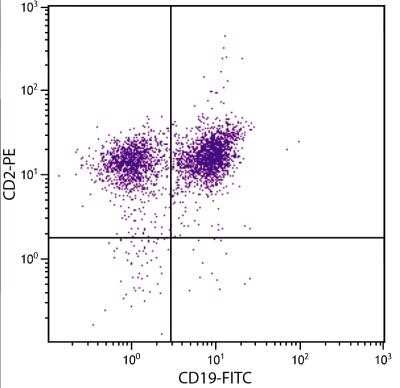

Flow Cytometry: CD2 Antibody (12-15) [NBP1-26666] - Analysis using the FITC conjugate of NBP1-26666. Staining of C57BL/6 mouse splenocytes with NBP1-26669 (PE conjugate) and NBP1-26667 (FITC conjugate).
Flow Cytometry: CD2 Antibody (12-15) - Azide and BSA Free [NBP1-26666]

Flow Cytometry: CD2 Antibody (12-15) - Azide and BSA Free [NBP1-26666]

Flow Cytometry: CD2 Antibody (12-15) [NBP1-26666] - BALB/c mouse splenocytes were stained with Rat Anti-Mouse CD2-FITC (NBP1-26667).

Applications for CD2 Antibody (12-15) - Azide and BSA Free

Application
Recommended Usage

Flow Cytometry

1:10 - 1:1000

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein A or G purified

Formulation

0.1M BBS (pH 8.2)

Format

Azide and BSA Free

Preservative

No Preservative

Concentration

0.5 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C. Do not freeze.

Background: CD2

CD2, also known as sheep red blood cell receptor (SRBC-R), erythrocyte receptor, LFA-2, and T11, is a type I transmembrane glycoprotein that is expressed on the surface of T cells, natural killer (NK) cells, thymocytes, and dendritic cells (1,2). CD2 is a member of the immunoglobulin (Ig) superfamily and a costimulatory receptor that functions in formation of the immunological synapse and T cell activation and signaling (1). The human CD2 protein is 351 amino acids in length with a theoretical molecular weight of ~40 kDa, but a fully glycosylated protein can weight closer to 50 kDa (1,3). The CD2 protein contains a signal sequence, an extracellular domain (ECD) composed of an Ig-like V-type domain followed by an Ig-like C-type domain, a transmembrane helical domain, and a proline-rich cytoplasmic tail (1,3). CD2 binds with CD58, also called LFA-3, which is a surface glycoprotein expressed by antigen presenting cells (APCs) and other target cells (1,2). While CD58 is the primary ligand for CD2 in humans, it also interacts with CD59 and CD48, albeit with lower affinity (1,2). However, in mice and rats which lack CD58 the main ligand for CD2 is CD48 (4). Research has found that when there is no direct interaction, CD2 co-immunoprecipitates with the T cell receptor (TCR)/CD3 complex (1). CD2 is an adhesion molecule with a variety of functions including actin cytoskeleton rearrangement, immunological synapse formation through T cell-APC binding, thymocyte development and T cell activation, and NK cell activation (1,2). The immunological synapse forms upon T cell-APC engagement and creates a contact zone of supramolecule activation clusters (SMACs) where CD2-CD58 is part of the central SMAC (cSMAC) (2).

The CD2-CD58 interaction has been shown to play a role in anti-tumor immune response, where reduced CD58 signaling is associated with immune escape of tumor cells in various hematological and lymphoid malignancies, but restoration of the signal promotes an anti-tumor response (2,5). Additionally, following cytomegalovirus (CMV) infection, CD2's binding to upregulated CD58 on CMV-infected cells is crucial for the activation and function of adaptive NK cells in the anti-viral response (2). In contrast, in situations where there is an increase in T cell and NK cell activation, like various autoimmune disorders or following organ transplant, costimulatory blockade of CD2-CD58 may be a potential therapeutic treatment approach (1). Mouse and rat xenograft models have shown that blocking the CD2 using anti-CD2 monoclonal antibodies contributes to graft survival and protects against lymphocyte infiltration and inflammatory damage (2).

References

1. Binder C, Cvetkovski F, Sellberg F, et al. CD2 Immunobiology. Front Immunol. 2020;11:1090. https://doi.org/10.3389/fimmu.2020.01090

2. Zhang Y, Liu Q, Yang S, Liao Q. CD58 Immunobiology at a Glance. Front Immunol. 2021;12:705260. https://doi.org/10.3389/fimmu.2021.705260

3. Uniprot (P06729)

4. van der Merwe PA. A subtle role for CD2 in T cell antigen recognition. J Exp Med. 1999;190(10):1371-1374. https://doi.org/10.1084/jem.190.10.1371

5. Nishikori M, Kitawaki T, Tashima M, Shimazu Y, Mori M, et al. Diminished CD2 Expression in T cells Permits Tumor Immune Escape. J Clin Cell Immunol. 2016;7:406. https://doi.org/10.4172/2155-9899.1000406

Alternate Names

CD2, LFA-2, T11, Leu-5, Ly37, SRBC-R

Gene Symbol

CD2

Additional CD2 Products

Product Documents for CD2 Antibody (12-15) - Azide and BSA Free

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Download SDS

Product Specific Notices for CD2 Antibody (12-15) - Azide and BSA Free

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Citations for CD2 Antibody (12-15) - Azide and BSA Free

Customer Reviews for CD2 Antibody (12-15) - Azide and BSA Free

There are currently no reviews for this product. Be the first to review CD2 Antibody (12-15) - Azide and BSA Free and earn rewards!

Have you used CD2 Antibody (12-15) - Azide and BSA Free?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

FAQs for CD2 Antibody (12-15) - Azide and BSA Free

Showing  1 - 1 of 1 FAQ Showing All

  • Q: Does this antibody cross react with the FC receptor?

    A:

    The answer to your question is likely to be "NO", this antibody should not be cross reactive with the mouse FC receptors, based on the following reasons: 1) Since we do not map the epitopes of our antibodies and the immunogen sequence of this antibody is the proprietary information, I think it is safe to say that the extracellular domain (a.a. 32 - 302 on Uniprot) of the mouse CD2 protein contains the epitope, where NBP1-26666 interacts with. Based on this assumption, I have done an a.a. sequence comparison. 2) There are several different types of Fc receptors (FcR) and the major ones are those binding to IgG, which are called Fc-gamma receptors (FcγR). FcγR belongs to the immunoglobulin superfamily and includes several members, FcγRI (CD64), FcγRIIA (CD32), FcγRIIB (CD32), etc., which differ in their antibody affinities due to their different molecular structure. Therefore the a.a. sequences derived from mouse CD64 and CD32 were compared with the sequence of mouse CD2 at the a.a. 32 - 302.
