Ella Automated Immunoassay System

Ella: Your Next Generation ELISA

Ella's combination of performance and workflow brings your immunoassays to the next level. In just 90 minutes you get highly reproducible validated assay data with no manual steps. The assay performance behind that data includes sub-picogram level sensitivity, 4+ logs of dynamic range and reproducibility that rivals the best laboratory automation. All in a compact package that doesn't break your budget or your lab bench.
Ella Automated Immunoassay System
2 Images
Product Details
Citations (1)
FAQs
Supplemental Products
Reviews (1)

Ella Automated Immunoassay System Summary

The Ella automated Immunoassay platform brings a higher level of precision and superior workflow to your immunoassay work. If you need the highest quality data to support your biomarker research, drug development or clinical trials then Ella has you covered.

Ella takes the ELISA out of your hands and automates it in a microfluidic cartridge. This hands-off approach gives you a high level of inter-assay and intra-assay reproducibility with a best in class time to result.

On top of that many of the ELISAs available on Ella are built on the industry leading performance of R&D Systems antibodies so you get the sensitivity you need and a result you can trust.

Learn more at proteinsimple.com

ProteinSimple, a Bio-Techne brand

Simple Plex Technology

Every Simple Plex ELISA is performed inside a patented glass nano-reactor and the entire assay is controlled with microfluidics. That means there are no manual steps and your data is available in 90 minutes. This novel design also promotes a high level of reproducibility that is seamlessly transferrable between users and labs.

How a Microfluidic ELISA Works

  1. Sample is routed through microfluidic channels.
  2. Capture antibody captures target analyte.
  3. Stringent wash removes unbound analyte.
  4. Detection antibody migrates through microfluidic channel.
  5. Stringent wash removes unbound detection antibody.
  6. Scan GNRs.
Ella Microfluidic ELISA

Simple Plex Assay Cartridges

Ella Simple Plex Assay Cartridges

Cartridge Format

72x1


Cartridge Format

32x4


Cartridge Format

16x4


Samples Reported
Per Cartridge

72


Samples Reported
Per Cartridge

32


Samples Reported
Per Cartridge

16


Analytes Reported
Per Sample

1


Analytes Reported
Per Sample

4


Analytes Reported
Per Sample

4


Technical Replicates
Per Analyte

3


Technical Replicates
Per Analyte

3


Technical Replicates
Per Analyte

3


Reportable Results
Per Cartridge

72


Reportable Results
Per Cartridge

128


Reportable Results
Per Cartridge

64

The family of Simple Plex assay cartridges provides a flexible approach with the same great workflow. Whether you’re using the single analyte or multiplex cartridges the only thing you need to do is add your sample. The rest of the ELISA reagents are preloaded in the cartridge and technical replicates are built in as well.

Learn more at proteinsimple.com

Specifications

Shipping Conditions
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Storage
Store the unopened product at room temperature. Do not use past expiration date.
Applications
ELISA

Product Datasheets

You must select a language.

x

Complete Your Experiment

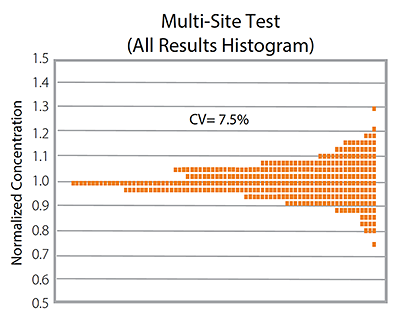

Data Example

I need to transfer my immunoassay and get the same results When it's time to develop and transfer your immunoassay to other labs, sites or a contract research organization, Ella makes it easy. Because Simple Plex assays are precisely controlled in the cartridge, there's no chance for pipetting errors. You'll get the same reproducible answers across multiple users and multiple sites. Simply put, you'll get consistent answers anywhere, by anyone on any Ella.

Citation for Ella Automated Immunoassay System

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citation: Showing 1 - 1

  1. Peripheral immunophenotypes in children with multisystem inflammatory syndrome associated with SARS-CoV-2 infection
    Authors: MJ Carter, M Fish, A Jennings, KJ Doores, P Wellman, J Seow, S Acors, C Graham, E Timms, J Kenny, S Neil, MH Malim, SM Tibby, M Shankar-Ha
    Nat. Med., 2020;0(0):.  2020

FAQs

  1. Where can Certificates of Analysis (CoAs) be found for Simple Plex cartridges and controls?

    • Proceed to the Certificate of Analysis Finder Tool on the Bio-Techne.com website here: https://www.bio-techne.com/support/cofa-finder-tool.html

      From here, please enter the full catalog number and the lot number in the appropriate fields.

  2. Can expired cartridges be run on the Ella?

    • The Ella instrument is not programmed to reject expired cartridges, however Bio-Techne can only support the performance of cartridges within the expiration date.

  3. What is the minimum sample volume required for Simple Plex assays?

    • A minimum final volume of 50 µL of diluted sample is required per sample inlet. See analyte specific specification sheet for Minimum Required Dilution (MRD).

  4. What is the expiration date of a Simple Plex cartridge?

    • Simple Plex cartridges expire one year from the date of manufacture.

  5. What is the expiration date of Simple Plex controls?

    • Lyophilized controls are stable for up to 12 months from the date of receipt when stored at 2-8 °C. Reconstituted controls are stable for up to 6 months from date of preparation when stored at ≤ -70 °C. Storage at -20 °C is not recommended.

  6. Why do Simple Plex controls need to be frozen before use?

    • The controls need to be frozen to ensure consistent readings between control aliquots.  Control aliquots used fresh may give different readings in the Simple Plex assays than aliquots that have been exposed to a freeze/thaw cycle.

  7. Are controls included when ordering Simple Plex cartridges?

    • Simple Plex controls are sold separately. Instructions for use can be found on the control insert and lot-specific CoA.

  8. Are custom Simple Plex assays available for analytes not currently on the menu?

    • Custom panels with existing targets can be built using our Simple Plex Panel Builder Tool. Not finding a target you are interested in? Custom options are available for the Ella platform. Please fill out the custom services form and our team will contact you soon. Click Here

  9. Does Ella interface with a Laboratory Information Management System (LIMS)?

    • The Ella platform supports integration with Watson LIMS and also includes a Generic LIMS option for use with other LIMS interfaces. Please reference the Ella User Guide for more information regarding specific settings and export instructions.

  10. Can users be tracked and use separate log in accounts using the Simple Plex Software?

    • After purchase and activation of the 21 CFR Part 11 capabilities, the software can be used to track users and each user will have their own separate log in. Please see the Ella User Guide for more information about the 21 CFR Part 11 capabilities.

  11. Are Simple Plex assays correlated to R&D Systems ELISA Assays?

    • Many Simple Plex assays have been correlated to R&D Systems Quantikine ELISAs. Simple Plex assays are not correlated to R&D Systems Luminex or DuoSet assays.

  12. Can Simple Plex assays be fully automated with a Liquid Handler?

    • Each of the cartridge inlets are spaced the same as a 96-well ELISA plate, but the dimensions are different for each cartridge format (48-Digoxigenin, 16x4, 32x4, 32x8, or 72x1). If you need more detailed dimensions of the plate to generate your liquid handler settings, please contact Technical Service. It may require some experimentation from the end user to determine optimal settings.

  13. Is assay performance comparable in a Single Plex and in a Multianalyte Simple Plex cartridge?

    • Yes. The multianalyte cartridges have separate microfluidic chambers for each analyte. These multianalyte assays are not true multiplex assays, but rather 4 single plex assays run in parallel. The antibodies do not interact, so antibody compatibility and cross-reactivity are not a factor in considering whether any two analytes are compatible. In the Multiplex cartridges, up to two analytes share a single channel. Analytes available in the Multiplex cartridge have been fully validated as a panel to ensure that there is not any cross-reactivity or interference, and assay performance is comparable to the same assay run in a Single Plex or Multianalyte cartridge.

  14. Can high molecular weight proteins be run in a Simple Plex assay?

    • Simple Plex cartridges do not have any size limitations. The Glass Nano Reactors (GNRs) have an approximate inner diameter of 72 microns, which can accommodate very high molecular weight proteins.

  15. Can the assay range change from lot-to-lot in Simple Plex assays?

    • The Limits of Quantification for each assay are established during development and do not change lot-to-lot.

  16. What is a self-test and how often should it be run? What is a verification cartridge?

    • The Ella includes a verification cartridge that enables the system to perform a self-test that ensures the instrument is running properly. The verification cartridge features a level indicator, a surface to seal Ella’s pneumatic interface, and an auto-fluorescing glass covered surface as an RFU reference. It is recommended that the self-test is run once a week to create a running history of system performance. Whenever handling the verification cartridge, wear gloves to avoid getting it dirty.

View all Automated ELISA Instrumentation FAQs

Simple Plex Single-Analyte Assay Cartridges

Reviews for Ella Automated Immunoassay System

Average Rating: 5 (Based on 1 Review)

5 Star
100%
4 Star
0%
3 Star
0%
2 Star
0%
1 Star
0%

Have you used Ella Automated Immunoassay System?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:


Ella Automated Immunoassay System
By Anonymous on 07/22/2021

The ELLA has been a great asset to the lab. Our productivity has been greatly increase.
