HLA-DR Antibody (L203) [Alexa Fluor® 532]

Name: HLA-DR Antibody (L203) [Alexa Fluor® 532]
Brand: Novus Biologicals
SKU: FAB4869X
Price: 529 USD
Availability: InStock

Novus Biologicals | Catalog # FAB4869X

Submit a review

Product Documents

View Available Conjugates

100% Guarantee

Product Specifications
Scientific Data
Applications
Spectra Viewer
Flow Cytometry
Preparation & Storage
Background
Product Documents
Specific Notices
Research Areas

Key Product Details

Species Reactivity

Human

Applications

Flow Cytometry, CyTOF-ready

Label

Alexa Fluor 532 (Excitation = 534 nm, Emission = 553 nm)

Antibody Source

Recombinant Monoclonal Mouse IgG₁ Clone # L203

View all HLA-DR Primary Antibodies »

Product Specifications

Immunogen

RPMI 8866 human lymphoblastoid cells
Accession # P01903

Specificity

Detects human HLA‑DR.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG₁

Scientific Data Images for HLA-DR Antibody (L203) [Alexa Fluor® 532]

HLA-DR Antibody (L203) [Alexa Fluor® 532] [FAB4869X] -

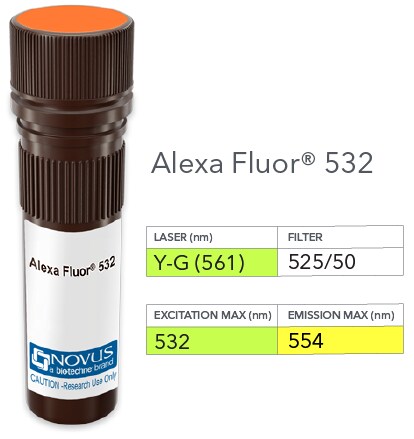

HLA-DR Antibody (L203) [Alexa Fluor® 532] [FAB4869X] - Vial of Alexa Fluor 532 conjugated antibody. Alexa Fluor 532 is optimally excited at 532 nm by the Yellow-Green laser (561 nm) and has an emission maximum of 554 nm.

Applications for HLA-DR Antibody (L203) [Alexa Fluor® 532]

Application

Recommended Usage

CyTOF-ready

Optimal dilutions of this antibody should be experimentally determined.

Flow Cytometry

Optimal dilutions of this antibody should be experimentally determined.

Application Notes

Optimal dilution of this antibody should be experimentally determined.

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
Spillover Popups - Visualize the spectra of individual fluorochromes
Antigen Density Selector - Match fluorochrome brightness with antigen density

Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

50mM Sodium Borate

Preservative

0.05% Sodium Azide

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C in the dark.

Background: HLA-DR

Human Leukocyte Antigen -DR isotype (HLA-DR) is a major histocompatibility complex (MHC) class II molecule expressed by antigen presenting cells (APCs) that plays a significant role in immune response (1). Class II molecules also include isoforms HLA-DP and -DQ (1,2). These type I membrane glycoproteins on APCs present peptides to helper T cells and T cell receptors on CD4+ cells (1). In humans, the genes encoding class II MHC proteins are located on chromosome 6p21, where HLA-DR is typically the most highly expressed, followed by HLA-DQ and then HLA-DP (3). Structurally, HLA-DR molecules are heterodimers consisting of an alpha chain subunit with an approximate theoretical molecular weight of 34 kDa and one of many approximately 30 kDa beta subunits (1-3). The alpha and beta genes are considered highly polymorphic with duplication resulting in nine DRB (beta subunit of HLA-DR) genes (DRB1-DRB9); though only DRB1, DRB3, DRB4, and DRB5 are considered functional (2,3). On the other hand, the alpha subunit is encoded by a single DRA gene (2,3). Studies focusing on the structural and biochemical properties of peptides that bind to HLA-DR molecules have helped contribute to subunit vaccine design and development (3).

Given the role in adaptive immunity, HLA-DR allele polymorphisms, gene misexpression, and dysfunction has been implicated in many diseases ranging from autoimmune disorders to cancer (2). HLA-DR is also a classical biomarker for disease, including sepsis where reduced expression of HLA-DR molecules on monocytes, as measured by flow cytometry, indicates diagnosis and prognosis (4,5). Immunosuppression observed with sepsis results in decreased surface expression of HLA-DR and concurrent increase in expression of programmed death 1 (PD-1), cytotoxic T-lymphocyte antigen 4 (CTLA-4), and B and T lymphocyte attenuator (BTLA) (4). This altered expression results in poor T cell response and apoptosis, along with reduced interferon-gamma (IFN-gamma) production and increased pro-inflammatory cytokine release (4). Furthermore, the decrease in HLA-DR expression is also correlated with the decrease in CD14lowCD16+ inflammatory monocytes (5). Interestingly, COVID-19 patients also exhibit a reduction in HLA-DR that correlates with disease severity and immunosuppression (5).

References

1. Andersson G. (1998). Evolution of the human HLA-DR region. Frontiers in bioscience : a journal and virtual library. https://doi.org/10.2741/a317

2. Shiina, T., Hosomichi, K., Inoko, H., & Kulski, J. K. (2009). The HLA genomic loci map: expression, interaction, diversity and disease. Journal of human genetics. https://doi.org/10.1038/jhg.2008.5

3. Stern, L. J., & Calvo-Calle, J. M. (2009). HLA-DR: molecular insights and vaccine design. Current pharmaceutical design. https://doi.org/10.2174/138161209789105171

4. Zhuang, Y., Peng, H., Chen, Y., Zhou, S., & Chen, Y. (2017). Dynamic monitoring of monocyte HLA-DR expression for the diagnosis, prognosis, and prediction of sepsis. Frontiers in bioscience (Landmark edition). https://doi.org/10.2741/4547

5. Benlyamani, I., Venet, F., Coudereau, R., Gossez, M., & Monneret, G. (2020). Monocyte HLA-DR Measurement by Flow Cytometry in COVID-19 Patients: An Interim Review. Cytometry. Part A : the journal of the International Society for Analytical Cytology. https://doi.org/10.1002/cyto.a.24249

Long Name

Major Histocompatibility Complex Class II DR

Alternate Names

HLA-DRA, HLADR, MHC Class II DR

Gene Symbol

HLA-DRA

Additional HLA-DR Products

Product Documents for HLA-DR Antibody (L203) [Alexa Fluor® 532]

Download Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Download SDS

Product Specific Notices for HLA-DR Antibody (L203) [Alexa Fluor® 532]

Alexa Fluor (R) products are provided under an intellectual property license from Life Technologies Corporation. The purchase of this product conveys to the buyer the non-transferable right to use the purchased product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). The sale of this product is expressly conditioned on the buyer not using the product or its components, or any materials made using the product or its components, in any activity to generate revenue, which may include, but is not limited to use of the product or its components: (i) in manufacturing; (ii) to provide a service, information, or data in return for payment; (iii) for therapeutic, diagnostic or prophylactic purposes; or (iv) for resale, regardless of whether they are resold for use in research. For information on purchasing a license to this product for purposes other than as described above, contact Life Technologies Corporation, 5791 Van Allen Way, Carlsbad, CA 92008 USA or outlicensing@lifetech.com. This conjugate is made on demand. Actual recovery may vary from the stated volume of this product. The volume will be greater than or equal to the unit size stated on the datasheet.

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
