Human Angiopoietin-like 3 Quantikine ELISA Kit

Catalog # Availability Size / Price Qty
Human Angiopoietin-like Protein 3/ANGPTL3 ELISA Standard Curve
2 Images
Product Details
Citations (6)
Supplemental Products
Reviews (1)

Human Angiopoietin-like 3 Quantikine ELISA Kit Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Assay Length
3.5 hours
Sample Type & Volume Required Per Well
Cell Culture Supernates (50 uL), Serum (10 uL), EDTA Plasma (10 uL), Heparin Plasma (10 uL)
0.035 ng/mL
Assay Range
0.2 - 10 ng/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)
Natural and recombinant human ANGPTL3
< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
No significant interference observed with available related molecules.

Product Summary

The Quantikine Human ANGPTL3 Immunoassay is a 3.5 hour solid-phase ELISA designed to measure human ANGPTL3 in cell culture supernates, serum, and plasma. It contains Sf 21-expressed recombinant human ANGPTL3 and has been shown to accurately quantitate the recombinant factor. Results obtained using natural human ANGPTL3 showed linear curves that were parallel to the standard curves obtained using the Quantikine kit standards. These results indicate that this kit can be used to determine relative mass values for naturally occurring human ANGPTL3.


Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision

Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 20 20 20
Mean (ng/mL) 1.05 3.36 6.8 1.02 3.18 6.74
Standard Deviation 0.04 0.09 0.18 0.07 0.2 0.6
CV% 4.1 2.7 2.7 6.7 7.2 8.5


The recovery of ANGPTL3 spiked to levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=4) 103 99-107
EDTA Plasma (n=4) 102 85-120
Heparin Plasma (n=4) 96 85-109
Serum (n=4) 96 81-115


To assess the linearity of the assay, samples containing and/or spiked with high concentrations of ANGPTL3 were serially diluted with Calibrator Diluent to produce samples with values within the dynamic range of the assay.

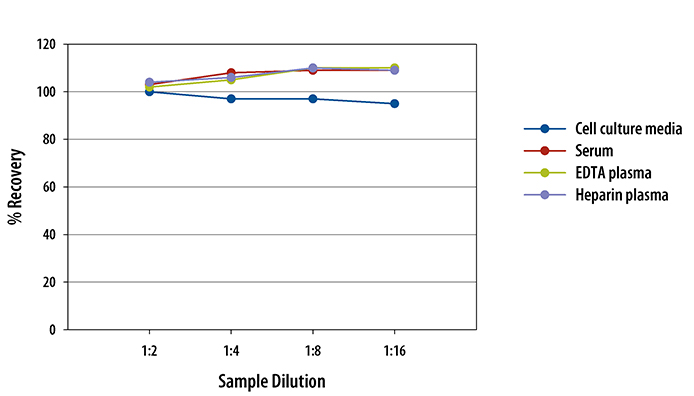

Human Angiopoietin-like Protein 3/ANGPTL3 ELISA Linearity

Scientific Data

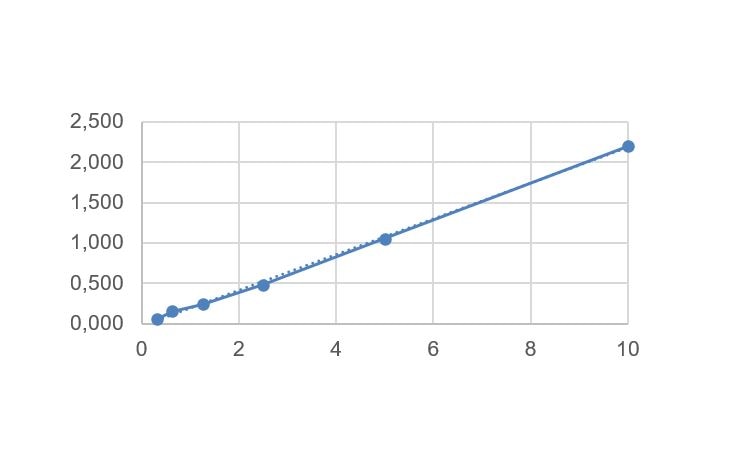

Human Angiopoietin-like Protein 3/ANGPTL3 ELISA Standard Curve

Product Datasheets

You must select a language.


Preparation and Storage

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Angiopoietin-like Protein 3/ANGPTL3

Angiopoietin-like, also known as angiopoietin-related proteins, are structurally related to the angiopoietins. They are secreted proteins with N-terminal coiled-coil domains and C-terminal fibrinogen-like domains. Unlike the angiopoietins, ANGPTLs do not bind Tie-2. Seven ANGPTL proteins have been identified (ANGPTL1 through 7).

Entrez Gene IDs:
27329 (Human); 30924 (Mouse); 102136264 (Cynomolgus Monkey)
Alternate Names:
AGNPT5; Ang-5; angiopoietin 5; Angiopoietin-5; angiopoietin-like 3; Angiopoietin-like Protein 3; angiopoietin-related protein 3; ANGPT5angiopoietin-5; ANGPTL3; FHBL2
⚠ WARNING: This product can expose you to chemicals including N,N-Dimethylforamide, which is known to the State of California to cause cancer. For more information, go to

Assay Procedure

Refer to the product for complete assay procedure.

Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
  1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
  2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

  3. 100 µL Assay Diluent
  4.   Add 100 µL of Assay Diluent to each well.

  5. 50 µL Standard, Control, or Sample
  6.   Add 50 µL of Standard, control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 2 hours on a horizontal orbital microplate shaker.
  7.   Aspirate each well and wash, repeating the process 3 times for a total of 4 washes.

  8. 200 µL Conjugate
  9.   Add 200 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at room temperature for 1 hour on the shaker.
  10.   Aspirate and wash 4 times.

  11. 200 µL Substrate Solution
  12.   Add 200 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes on the benchtop. PROTECT FROM LIGHT.

  13. 50 µL Stop Solution
  14.   Add 50 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.

Citations for Human Angiopoietin-like 3 Quantikine ELISA Kit

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

6 Citations: Showing 1 - 6
Filter your results:

Filter by:

  1. GALNT2 rs4846914 SNP Is Associated with Obesity, Atherogenic Lipid Traits, and ANGPTL3 Plasma Level
    Authors: M Qaddoumi, P Hebbar, M Abu-Farha, A Al Somaly, M Melhem, F Al-Kayal, I AlKhairi, P Cherian, M Alanbaei, F Al-Mulla, J Abubaker, TA Thanaraj
    Genes, 2022;13(7):.
    Species: Human
    Sample Types: Plasma
  2. Postprandial metabolism of apolipoproteins B48, B100, C-III and E in humans with APOC3 loss-of-function mutations
    Authors: MR Taskinen, E Björnson, N Matikainen, S Söderlund, J Rämo, MM Ainola, A Hakkaraine, C Sihlbom, A Thorsell, L Andersson, PO Bergh, M Henricsson, S Romeo, M Adiels, S Ripatti, M Laakso, CJ Packard, J Borén
    JCI Insight, 2022;0(0):.
    Species: Human
    Sample Types: Serum
  3. ANGPTL3 Variants Associate with Lower Levels of Irisin and C-Peptide in a Cohort of Arab Individuals
    Authors: M Alanbaei, M Abu-Farha, P Hebbar, M Melhem, BS Chandy, E Anoop, P Cherian, I Al-Khairi, F Alkayal, F Al-Mulla, J Abubaker, TA Thanaraj
    Genes, 2021;12(5):.
    Species: Human
    Sample Types: Plasma
  4. Serum angiopoietin-like 3 levels are elevated in obese non diabetic men but are unaffected during an oral glucose tolerance test
    Authors: MF Garcés, JD Buell-Acos, HA Rodríguez-, E Pulido-Sán, JJ Rincon-Ram, DC Moreno-Ord, R Franco-Veg, JS Roncancio-, AJ Burgos-Car, E Lacunza, JP Castaño, C Diéguez, R Nogueiras, E Sanchez, JE Caminos
    Scientific Reports, 2020;10(1):21118.
    Species: Human
    Sample Types: Serum
  5. Profiling of selected angiogenesis-related genes in serous ovarian cancer patients
    Authors: P Ku?, R Charkiewic, D Klasa-Mazu, T Milczek, B Mroczko, J Nikli?ski, P Lauda?ski
    Adv Med Sci, 2017;62(1):116-120.
    Species: Human
    Sample Types: Cell Lysates
  6. Circulating angiopoietin-like protein 8 (ANGPTL8) and ANGPTL3 concentrations in relation to anthropometric and metabolic profiles in Korean children: a prospective cohort study.
    Authors: Chung H, Lee M, Hwang S, Lee H, Yoo H, Seo J, Kim S, Kim N, Baik S, Choi D, Kim S, Choi K
    Cardiovasc Diabetol, 2016;15(1):1.
    Species: Human
    Sample Types: Serum
