Key Product Details

Species Reactivity

Validated:

Human

Cited:

Human

Applications

Validated:

Flow Cytometry

Cited:

Flow Cytometry

Label

Allophycocyanin (Excitation = 620-650 nm, Emission = 660-670 nm)

Antibody Source

Monoclonal Mouse IgG1 Clone # 31916
Loading...

Product Specifications

Immunogen

S. frugiperda insect ovarian cell line Sf 21-derived recombinant human GM-CSF R alpha
Extracellular domain

Specificity

Detects human GM-CSF R alpha in direct ELISAs and Western blots. In direct ELISAs and Western blots, no cross-reactivity with recombinant human (rh) M‑CSF R or rhGM‑CSF R beta  ( beta c) is observed.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Scientific Data Images for Human GM‑CSF R alpha APC‑conjugated Antibody

Detection of GM‑CSF Ra antibody in Human Blood Monocytes antibody by Flow Cytometry.

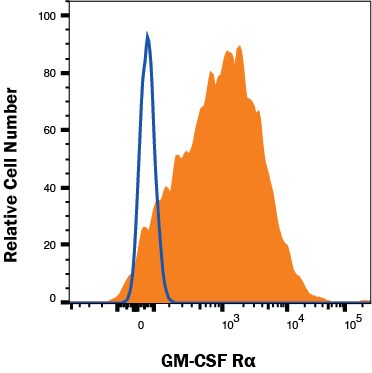

Detection of GM‑CSF R alpha in Human Blood Monocytes by Flow Cytometry.

Human peripheral blood monocytes were stained with Mouse Anti-Human GM-CSF Ra APC-conjugated Monoclonal Antibody (Catalog # FAB706A, filled histogram) or isotype control antibody (IC002A, open histogram). View our protocol for Staining Membrane-associated Proteins.

Detection of GM‑CSF R alpha in U937 cells by Flow Cytometry.

U937 cells were stained with Mouse Anti-Human GM‑CSF R alpha APC‑conjugated Monoclonal Antibody (Catalog # FAB706A, filled histogram) or isotype control antibody (Catalog # IC002A, open histogram). View our protocol for Staining Membrane-associated Proteins.

Applications for Human GM‑CSF R alpha APC‑conjugated Antibody

Application
Recommended Usage

Flow Cytometry

10 µL/106 cells
Sample: Human peripheral blood monocytes and U937 human histiocytic lymphoma cells

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A or G purified from ascites

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8° C. Do not use past expiration date. Protect from light.

Background: GM-CSF R alpha

Granulocyte Macrophage Colony Stimulating Factor Receptor alpha (GM-CSF R alpha ), also known as CD116, is a component of the receptor complex that mediates cellular responses to GM-CSF. GM-CSF promotes the differentiation and mobilization of granulocyte-macrophage, erythroid, megakaryocyte, and eosinophil progenitors. It enhances the activation of myeloid cell effector functions and plays a role in the development of Th1 biased immune responses, allergic inflammation, and autoimmunity (1‑4). Mature human GM-CSF R alpha is an 80 kDa type I transmembrane glycoprotein that consists of a 298 amino acid (aa) extracellular domain (ECD) with two fibronectin type III domains and a juxtamembrane WSXWS motif, a 26 aa transmembrane segment, and a 54 aa cytoplasmic domain (5). Within the ECD, human GM-CSF R alpha shares approximately 33% aa sequence identity with mouse and rat GM-CSF R alpha. Alternate splicing of human GM-CSF R alpha generates several additional isoforms that lack the cytoplasmic and/or transmembrane regions. Soluble forms of the receptor retain the ability to bind GM-CSF (6, 7). GM-CSF R alpha is expressed on hematopoietic stem cells, progenitor and differentiated cells in the myeloid lineage, vascular endothelial cells, placenta, and non-hematopoietic solid tumor cells (8). GM-CSF R alpha associates with the common beta chain/CD131 ( beta c), a 135 kDa transmembrane protein that is also the signal transducing component of the receptors for IL-3 and IL-5 (9, 10). Association with beta c converts GM-CSF R alpha from a low affinity to a high affinity receptor for GM-CSF (9‑11). The shared usage of beta c underlies the synergism between GM-CSF, IL-3, and IL-5 in their effects on myeloid cell differentiation and activation (1, 2).

References

  1. Martinez-Moczygemba, M. and D.P. Huston (2003) J. Allergy Clin. Immunol. 112:653.
  2. Fleetwood, A.J. et al. (2005) Crit. Rev. Immunol. 25:405.
  3. Eksioglu, E.A. et al. (2007) Exp. Hematol. 35:1163.
  4. Cao, Y. (2007) J. Clin. Invest. 117:2362.
  5. Gearing, D.P. et al. (1989) EMBO J. 8:3667.
  6. Pelley, J.L. et al. (2007) Exp. Hematol. 35:1483.
  7. Raines, M.A. et al. (1991) Proc. Natl. Acad. Sci. 88:8203.
  8. Chiba, S. et al. (1990) Cell Regul. 1:327.
  9. Kitamura, T. et al. (1991) Proc. Natl. Acad. Sci. 88:5082.
  10. Hayashida, K. et al. (1990) Proc. Natl. Acad. Sci. 87:9655.
  11. Hoang, T. et al. (1993) J. Biol. Chem. 268:11881.

Long Name

Granulocyte Macrophage Growth Factor Receptor alpha

Alternate Names

CD116, CSF2R, CSF2RA, CSF2RY, GM-CSFRa, GMCSFR alpha

Entrez Gene IDs

1438 (Human); 12982 (Mouse); 102139775 (Cynomolgus Monkey)

Gene Symbol

CSF2RA

Additional GM-CSF R alpha Products

Product Documents for Human GM‑CSF R alpha APC‑conjugated Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Human GM‑CSF R alpha APC‑conjugated Antibody

For research use only
