Human ICOS PE-conjugated Antibody

  • Species Reactivity
  • Specificity
    Detects human ICOS in direct ELISAs.
  • Source
    Monoclonal Mouse IgG1 Clone # 669222
  • Purification
    Protein A or G purified from hybridoma culture supernatant
  • Immunogen
    NS0 mouse myeloma cell line transfected with human ICOS and mouse myeloma cell line NS0-derived recombinant human ICOS cocktail
    Accession # Q9Y6W8
  • Formulation
    Supplied in a saline solution containing BSA and Sodium Azide.
  • Label
  • Flow Cytometry
    10 µL/106 cells
    See below
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples

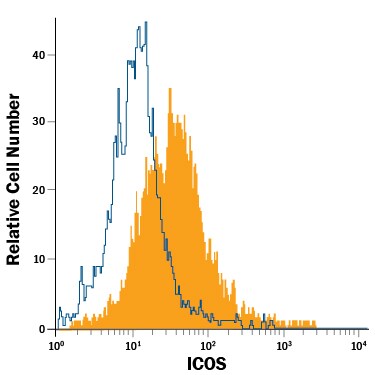

Detection of ICOS in Human CD3+ PBMCs by Flow Cytometry. Human CD3+ peripheral blood mononuclear cells (PBMCs) treated for 48 hours with 5 μg/mL PHA were stained with Mouse Anti-Human ICOS PE‑conjugated Monoclonal Antibody (Catalog # FAB6975P, filled histogram) or isotype control antibody (Catalog # IC002P, open histogram). View our protocol for Staining Membrane-associated Proteins
Preparation and Storage
  • Shipping
    The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
  • Stability & Storage
    Protect from light. Do not freeze.
    • 12 months from date of receipt, 2 to 8 °C as supplied.
Background: ICOS

Inducible Costimulator (ICOS), also known as AILIM (Activation-Inducible Lymphocyte Immunomediatory Molecule), CD278, and CRP-1 (CD28-Related Protein-1), is a member of the growing CD28 family of immune costimulatory receptors. Other family members are CD28, CTLA-4, and PD-1. Human ICOS is a homodimeric type I transmembrane protein consisting of 199 amino acids (aa) with a putative 20 aa signal sequence, a 121 aa extracellular domain, a 23 aa transmembrane region, and a 35 aa cytoplasmic domain. ICOS shares approximately 39% amino acid similarity with CD28 and CTLA-4. Over aa 21-141, human and mouse ICOS share approximately 70% aa sequence identity. ICOS is expressed on most CD45RO+ cells. ICOS expression is up-regulated within approximately 24-48 hours of activation on Th primed cells. B7-H2, a member of the B7 family of costimulatory ligands, has been identified as the ICOS ligand. The B7-H2/ICOS interaction appears to play roles in T cell dependent B cell activation and Th differentiation.

  • Long Name:
    Inducible Co-stimulator
  • Entrez Gene IDs:
    29851 (Human); 54167 (Mouse)
  • Alternate Names:
    Activation-inducible lymphocyte immunomediatory molecule; AILIM; AILIMCD278; CD278 antigen; CD278; CRP-1; CVID1; inducible costimulator; inducible T-cell costimulator; inducible T-cell co-stimulator; MGC39850
