The alpha and beta forms of Neurexins 1‑3 are transmembrane neuronal glycoproteins which are transcribed from each of three NRXN genes that utilize alternate promoters. Like other Neurexins, the extracellular domain (ECD) of Neurexin 3 alpha contains six LNS domains interspersed with three EGF-like domains, while that of Neurexin 3 beta contains only the sixth LNS domain and no EGF-like domains (1‑3). Mature human Neurexin 3 beta is a 70 kDa glycosylated protein with a 528 amino acid (aa) ECD and a 56 aa cytoplasmic domain that contains a motif for binding PDZ scaffolding proteins (3‑5). Within comparable regions of the ECD, human Neurexin 3 beta shares 99% aa sequence identity with mouse and rat Neurexin 3 beta. It shares 65% aa sequence identity with comparable regions of the ECD of human Neurexin 1 beta and 2 beta. Alternative splicing of human Neurexin 3 beta generates multiple isoforms. There are potentially soluble and secreted variants and some which contain a fibronectin type III-like domain (4, 6). Neurexin 3 beta is widely expressed in the brain where it binds the postsynaptic Neuroligins 1, 2, and 3 (6‑9). Neurexin 3 beta may also be expressed in non-nervous tissues with a potentially cardiac-specific isoform (10). Human Neurexin 3 beta polymorphisms which affect the splicing pattern are associated with susceptibility to alcohol dependence (6). The Neurexin 3 beta genetic locus has been linked to opioid and nicotine addiction, and Neurexin 3 beta gene expression is up‑regulated after short term exposure of mice to cocaine (11‑13).
Human/Mouse Neurexin 3/NRXN3 Antibody
R&D Systems | Catalog # AF5269
Discontinued Product
AF5269 has been discontinued.
View all Neurexin 3/NRXN3 products.
Key Product Details
Species Reactivity
Validated:
Human, Mouse
Cited:
Human
Applications
Validated:
Immunohistochemistry, Western Blot
Cited:
Western Blot
Label
Unconjugated
Antibody Source
Polyclonal Sheep IgG
Loading...
Product Specifications
Immunogen
Mouse myeloma cell line NS0-derived recombinant human Neurexin 3/NRXN3
Ser35-Thr357
Accession # NP_620426
Ser35-Thr357
Accession # NP_620426
Specificity
Detects human and mouse Neurexin 3/NRXN3 in Western blots.
Clonality
Polyclonal
Host
Sheep
Isotype
IgG
Scientific Data Images for Human/Mouse Neurexin 3/NRXN3 Antibody
Detection of Neurexin 3/NRXN3 in Human Brain Cerebellum.
Neurexin 3/NRXN3 was detected in immersion fixed paraffin-embedded sections of human brain cerebellum using Sheep Anti-Human/Mouse Neurexin 3/NRXN3 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF5269) at 15 µg/mL for 1 hour at room temperature followed by incubation with the Anti-Sheep IgG VisUCyte™ HRP Polymer Antibody (Catalog # VC006). Before incubation with the primary antibody, tissue was subjected to heat-induced epitope retrieval using VisUCyte Antigen Retrieval Reagent-Basic (Catalog # VCTS021). Tissue was stained using DAB (brown) and counterstained with hematoxylin (blue). Specific staining was localized to Purkinje Neurons. View our protocol for IHC Staining with VisUCyte HRP Polymer Detection Reagents.Detection of Human/Mouse Neurexin 3/NRXN3 by Western Blot.

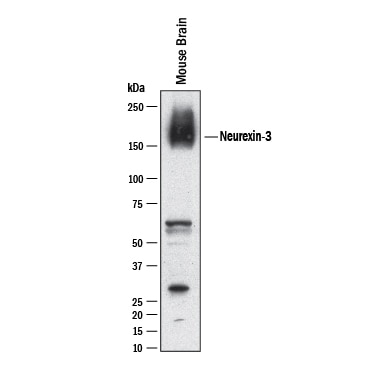

Western blot shows lysates of Mouse Brain. PVDF membrane was probed with 2 µg/mL of Sheep Anti-Human/Mouse Neurexin 3/NRXN3 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF5269) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). A specific band was detected for Neurexin 3/NRXN3 at approximately ~150 kDa (as indicated). This experiment was conducted under reducing conditions and using Western Blot Buffer Group 1.Applications for Human/Mouse Neurexin 3/NRXN3 Antibody
Application
Recommended Usage
Immunohistochemistry
5-15 µg/mL
Sample: Immersion fixed paraffin-embedded sections of human brain (cerebellum and cortex)
Sample: Immersion fixed paraffin-embedded sections of human brain (cerebellum and cortex)
Western Blot
2 µg/mL
Sample: Mouse brain
Sample: Mouse brain
Formulation, Preparation, and Storage
Purification
Antigen Affinity-purified
Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: Neurexin 3/NRXN3
References
- Craig, A.M. and Y. Kang (2007) Curr. Opin. Neurobiol. 17:43.
- Dean, C. and T. Dresbach (2006) Trends Neurosci. 29:21.
- Lise, M.-F. and A. El-Husseini (2006) Cell. Mol. Life Sci. 63:1833.
- Rowen, L. et al. (2002) Genomics 79:587.
- Ushkaryov, Y. A. et al. (1994) J. Biol. Chem. 269:11987.
- Hishimoto, A. et al. (2007) Hum. Mol. Genet. 16:2880.
- Ullrich, B. et al. (1995) Neuron 14:497.
- Ichtchenko, K. et al. (1996) J. Biol. Chem. 271:2676.
- Ichtchenko, K. et al. (1995) Cell 81:435.
- Occhi, G. et al. (2002) Biochem. Biophys. Res. Commun. 298:151.
- Lachman, H.M. et al. (2007) Hum. Mol. Genet. 16:1327.
- Bierut, L.J. et al. (2007) Hum. Mol. Genet. 16:24.
- Kelai, S. et al. (2008) Neuroreport 19:751.
Alternate Names
NRXN3
Gene Symbol
NRXN3
UniProt
Additional Neurexin 3/NRXN3 Products
Product Documents for Human/Mouse Neurexin 3/NRXN3 Antibody
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Human/Mouse Neurexin 3/NRXN3 Antibody
For research use only
