Human NKG2D/CD314 APC‑conjugated Antibody

R&D Systems | Catalog # FAB1392A

R&D Systems
Loading...

Key Product Details

Species Reactivity

Human

Applications

Flow Cytometry

Label

Allophycocyanin (Excitation = 620-650 nm, Emission = 660-670 nm)

Antibody Source

Monoclonal Mouse IgG2B Clone # 1046002
Loading...

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant human NKG2D/CD314
Phe78-Val216
Accession # P26718

Specificity

Detects human NKG2D/CD314 in direct ELISA.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2B

Scientific Data Images for Human NKG2D/CD314 APC‑conjugated Antibody

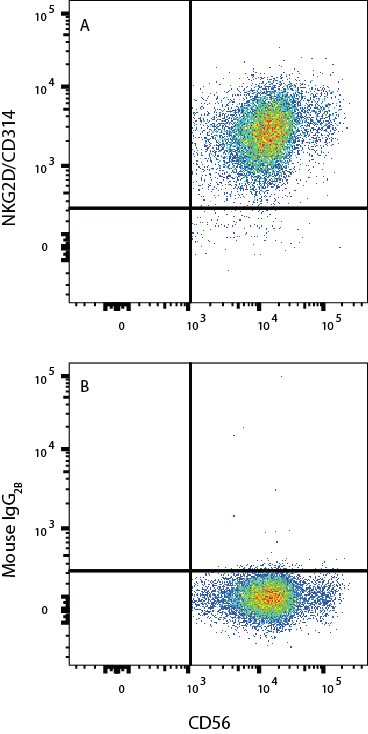

Detection of NKG2D/CD314 in NK cells by Flow Cytometry.

Day 15 expanded and activated NKcells were stained with (A) MouseAnti-Human NKG2D/CD314APC-conjugated MonoclonalAntibody (Catalog # FAB1392A)vs (B) Mouse IgG2B APC-conjugated antibody(IC0041A) along withRabbit Anti-Human NCAM-1/CD56 PE-conjugatedMonoclonal Antibody (FAB24086P). View our protocol for Staining Membrane-associated Proteins.

Detection of NKG2D/CD314 in PBMC cells by Flow Cytometry.

PBMCs were stained with (A) MouseAnti-Human NKG2D/CD314APC-conjugated MonoclonalAntibody (Catalog # FAB1392A)vs (B) Mouse IgG2B APC-conjugated antibody(IC0041A) along withRabbit Anti-Human NCAM-1/CD56 PE-conjugatedMonoclonal Antibody (FAB24086P). View our protocol for Staining Membrane-associated Proteins.

Applications for Human NKG2D/CD314 APC‑conjugated Antibody

Application
Recommended Usage

Flow Cytometry

10 µL/106 cells
Sample: Day 15 expanded and activated NK cells, PBMCs

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

Supplied in a saline solution containing Tris and Sodium Azide

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: NKG2D/CD314

NKG2D is a type II transmembrane glycoprotein having an extracellular lectin-like domain. This domain lacks the recognizable calcium-binding sites found in true C‑type lectins and binds protein rather than carbohydrate ligands. Human NKG2D is expressed on CD8+ alpha beta T cells, gamma delta T cells, NK cells and NKT cells. In mouse systems NKG2D also occurs on macrophages. Human ligands for NKG2D include MICA, MICB, and ULBP1, 2, and 3. Expression of NKG2D ligands occurs in epithelial cells, tumor cells and under conditions of stress or infection. NKG2D exists as a disulfide-linked homodimer that delivers an activating signal upon ligand binding. Signaling requires association with an adapter protein. Alternative splicing of the NKG2D mRNA results in isoforms with different cytoplasmic domains that can associate either with DAP12 to deliver a true activating signal or with DAP10 resulting in a costimulatory signal. NKG2D has been implicated in anti-tumor surveillance and the immune response against viral infection.

References

  1. Li, P. et al. (2001) Nature Immunol. 2:443.
  2. Steinle, A. et al. (2001) Immunogenetics 53:279.
  3. Cosman, D. et al. (2001) Immunity 14:123.
  4. Cerwenka, A. and L. Lanier (2001) Immunol. Rev. 181:158.
  5. Wu, J. et al. (1999) Science 285:730.
  6. Diefenbach, A. et al. (2002) Nature Immunol. 3:1142.
  7. Gilfillan, S. et al. (2002) Nature Immunol. 3:1150.
  8. Groh, V. et al. (2001) Nature Immunol. 2:255.
  9. Cerwenka, A. et al. (2001) Proc. Natl. Acad. Sci. USA 98:11521.
  10. Diefenbach, A. et al. (2001) Nature 413:165.
  11. NKG2D and its Ligands (2002) www.rndsystems.com.

Long Name

Natural Killer G2D

Alternate Names

CD314, D12S2489E, KLRK1

Entrez Gene IDs

22914 (Human); 27007 (Mouse); 102120479 (Cynomolgus Monkey)

Gene Symbol

KLRK1

UniProt
