Human PDGF-DD Quantikine ELISA Kit

Catalog # Availability Size / Price Qty
DDD00
Control Products Available
Human PDGF-DD ELISA Standard Curve
2 Images
Product Details
Procedure
Citations (1)
FAQs
Supplemental Products
Reviews

Human PDGF-DD Quantikine ELISA Kit Summary

Assay Type
Solid Phase Sandwich ELISA
Format
96-well strip plate
Assay Length
4.5 hours
Sample Type & Volume Required Per Well
Cell Culture Supernates (50 uL), Serum (10 uL), Platelet-poor EDTA Plasma (50 uL), Platelet-poor Heparin Plasma (50 uL), Saliva (50 uL), Human Milk (50 uL)
Sensitivity
3.51 pg/mL
Assay Range
31.3 - 2,000 pg/mL (Cell Culture Supernates, Serum, Platelet-poor EDTA Plasma, Platelet-poor Heparin Plasma, Saliva, Human Milk)
Specificity
Natural and recombinant human PDGF-DD
Cross-reactivity
< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
Interference
No significant interference observed with available related molecules.

Product Summary

The Quantikine Human PDGF-DD Immunoassay is a 4.5 hour solid-phase ELISA designed to measure human PDGF-DD in cell culture supernates, serum, plasma, saliva, and human milk. It contains NS0-expressed recombinant human PDGF-DD and has been shown to accurately quantitate the recombinant factor. Results obtained using natural human PDGF-DD showed linear curves that were parallel to the standard curves obtained using the Quantikine kit standards. These results indicate that this kit can be used to determine relative mass values for naturally occurring human PDGF-DD.

Precision

Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision

Cell Culture Supernates, Serum, Platelet-poor EDTA Plasma, Platelet-poor Heparin Plasma, Saliva, Human Milk

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 20 20 20
Mean 176 510 986 198 559 1095
Standard Deviation 3.69 11.9 17.2 16 38.5 55.3
CV% 2.1 2.3 1.7 8.1 6.9 5.1

Recovery

The recovery of PDGF-DD spiked to levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=4) 102 83-112
Platelet-poor EDTA Plasma (n=4) 93 83-109
Platelet-poor Heparin Plasma (n=4) 94 84-113
Serum (n=4) 101 86-112

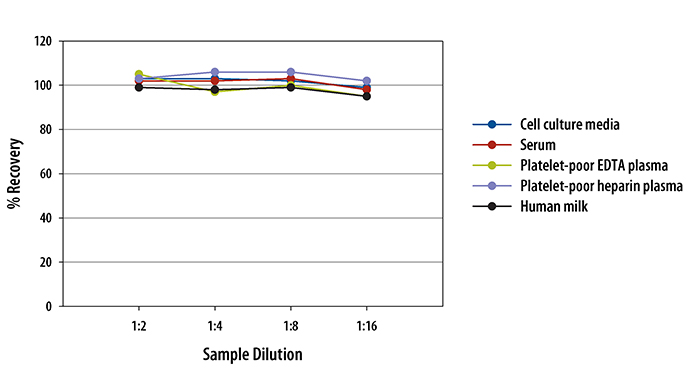

Linearity

To assess the linearity of the assay, samples containing and/or spiked with high concentrations of PDGF-DD were serially diluted with Calibrator Diluent to produce samples with values within the dynamic range of the assay.
Human PDGF-DD ELISA Linearity

Data Examples

Human PDGF-DD ELISA Standard Curve

Product Datasheets

Preparation and Storage

Shipping
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Storage
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: PDGF-DD

The platelet-derived growth factor (PDGF) family of disulfide-linked dimeric proteins consists of four homodimeric proteins, PDGF-AA, PDGF-BB, PDGF-CC and PDGF-DD, and one heterodimeric protein, PDGF-AB. Members of this protein family act mainly on connective tissue. The dimeric isoforms of PDGF are expressed by different cell types and at different times during embryonic development. All PDGF isoforms are synthesized as inactive precursors and are processed to active forms that contain a PDGF/VEGF cysteine knot domain. Only PDGF-C and PDGF-D, also named spinal cord-derived growth factors SCDGF and SCDGF-B, also contain an N-terminal CUB domain. Mature PDGF dimers bind and induce the homo- or hetero-dimerization of two receptor tyrosine kinases (PDGF R alpha and R beta).

Long Name:
Platelet-derived Growth Factor DD
Entrez Gene IDs:
80310 (Human)
Alternate Names:
PDGFDD; PDGF-DD
⚠ WARNING: This product can expose you to chemicals including N,N-Dimethylforamide, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Assay Procedure

Refer to the product for complete assay procedure.

Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
  1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
  2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

  3. 100 µL Assay Diluent
  4.   Add 100 µL of Assay Diluent to each well.

  5. 50 µL Standard, Control, or Sample
  6.   Add 50 µL of Standard, control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 2 hours on a horizontal orbital microplate shaker.
  7.   Aspirate each well and wash, repeating the process 3 times for a total of 4 washes.

  8. 200 µL Conjugate
  9.   Add 200 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at room temperature for 2 hours on the shaker.
  10.   Aspirate and wash 4 times.

  11. 200 µL Substrate Solution
  12.   Add 200 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes on the benchtop. PROTECT FROM LIGHT.

  13. 50 µL Stop Solution
  14.   Add 50 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.

Citation for Human PDGF-DD Quantikine ELISA Kit

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citation: Showing 1 - 1

  1. PDGF-D expression is down-regulated by TGFbeta in fibroblasts.
    Authors: Charni Chaabane S, Coomans de Brachene A, Essaghir A, Velghe A, Lo Re S, Stockis J, Lucas S, Khachigian L, Huaux F, Demoulin J
    PLoS ONE, 2014;9(10):e108656.
    Species: Human
    Sample Types: Cell Culture Supernates
